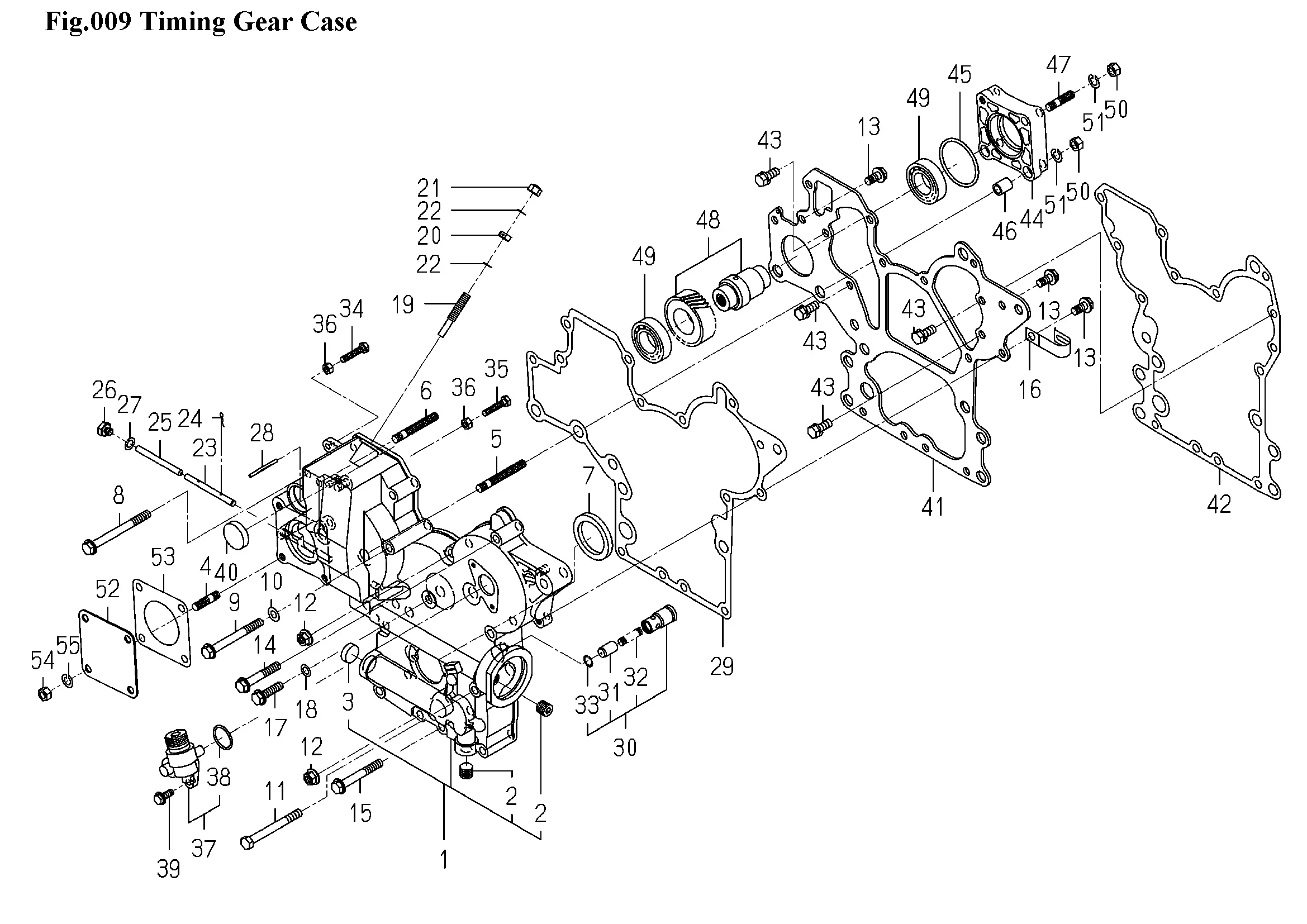

Stirnraddeckel
Ersatzteile (55 Teile)
1
GEARCASE ASSY
2
Stopfen
3
CUP/SEALING/20
4
STUD
5
STUD
6
STUD
7
SEAL,OIL
8
FLANGEBOLT/M8X85
9
FLANGEBOLT/M8X75
10
6209-500-006-00
11
V201-360-807-50
12
NUT/M08
13
FLANGEBOLT/M8X16
14
FLANGEBOLT/M8X50
15
FLANGEBOLT/M8X60
16
HOLDER/JE/9-9
17
V231-360-803-00
18
WASHER/08X14X01
19
6215-546-003-10
20
6209-409-001-00
21
NUT,CAP/M8
22
PACKING
23
PIN/ARM
24
PIN/SNAP
25
6215-542-005-10
26
PLUG/SCREW
27
WASHER/08X14X01
28
PIN,GROOVE
29
6211-312-005-10
30
Ventil
31
PISTON/VALVE/RELIEF
32
SPRING/RELIEF VALVE
33
RING,SNAP/12 C
34
6209-050-001-00
35
6209-050-002-00
36
6909-110-406-00
37
DRIVE/TACHOMETE ASSY
38
O-RING/1A,S24
39
FLANGEBOLT/M6X16
40
CAP,BLANK/30
41
6211-311-013-20
42
6211-312-006-10
43
6902-050-816-00
44
SPACER
45
O-RING/1A,S50
46
PIN/TUBE
47
STUD
48
6212-530-005-20
49
V600-110-600-50
50
6909-110-408-00
51
WASHER,SP/M8
52
Deckel
53
6211-322-002-00
54
6909-110-408-00
55
WASHER,SP/M8
