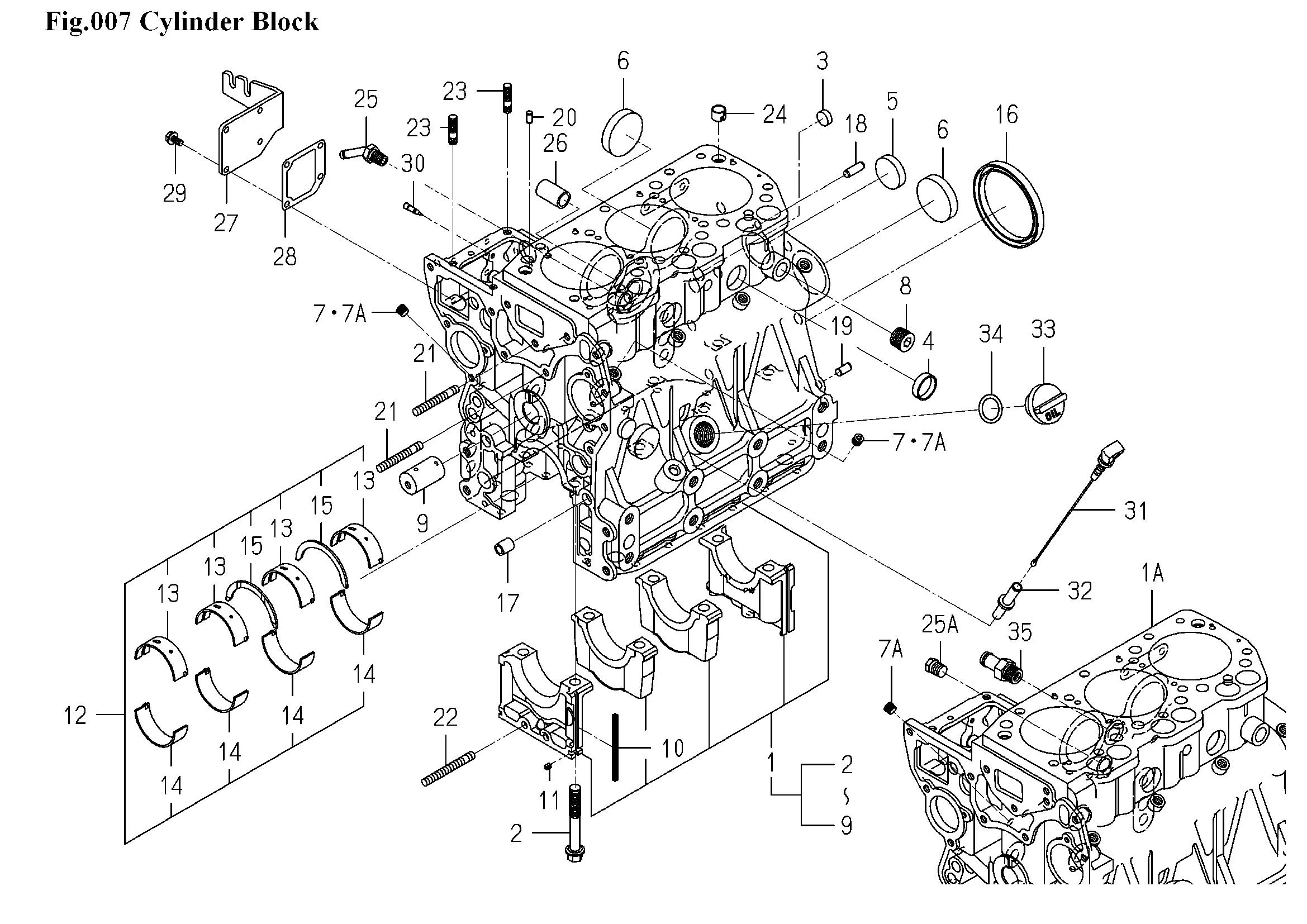

Motorblock
Ersatzteile (38 Teile)
1
6211-210-087-30
1A
6211-210-087-50
2
BOLT
3
CUP/SEALING/16
4
CUP/SEALING/28
5
CUP/SEALING/36
6
CUP/SEALING/50
7
6209-605-007-10
7A
6209-605-007-10
8
PLUG/PT1/2
9
PIN/IDLEGEAR
10
SEAL,BEARING CAP
11
SEAL,BEARING CAP/7
12
BEARING/CRANK SET
13
BEARING/CRANK/UPPER
14
BEARING/CRANK/LOWER
15
BEARING/THRUST/CRANK
16
OILSEAL
17
PIN/TUBE
18
PIN,ST,B/8X24
19
PIN/STRAIGHT
20
6209-740-005-00
21
STUD
22
STUD/M8X60/7T
23
STUD
24
DOWEL
25
PIPE/WATERDRAIN
25A
PLUG/SCREW/SEAL
26
CONNECTOR/OILFILTER
27
6211-291-015-20
28
6211-292-001-20
29
FLANGEBOLT/M6X12
30
PIN
31
LEVELGAUGE
32
Führung
33
CAP/OILFILLER
34
O-RING/1A,P25
35
PIPE/WATER/HOUSING
