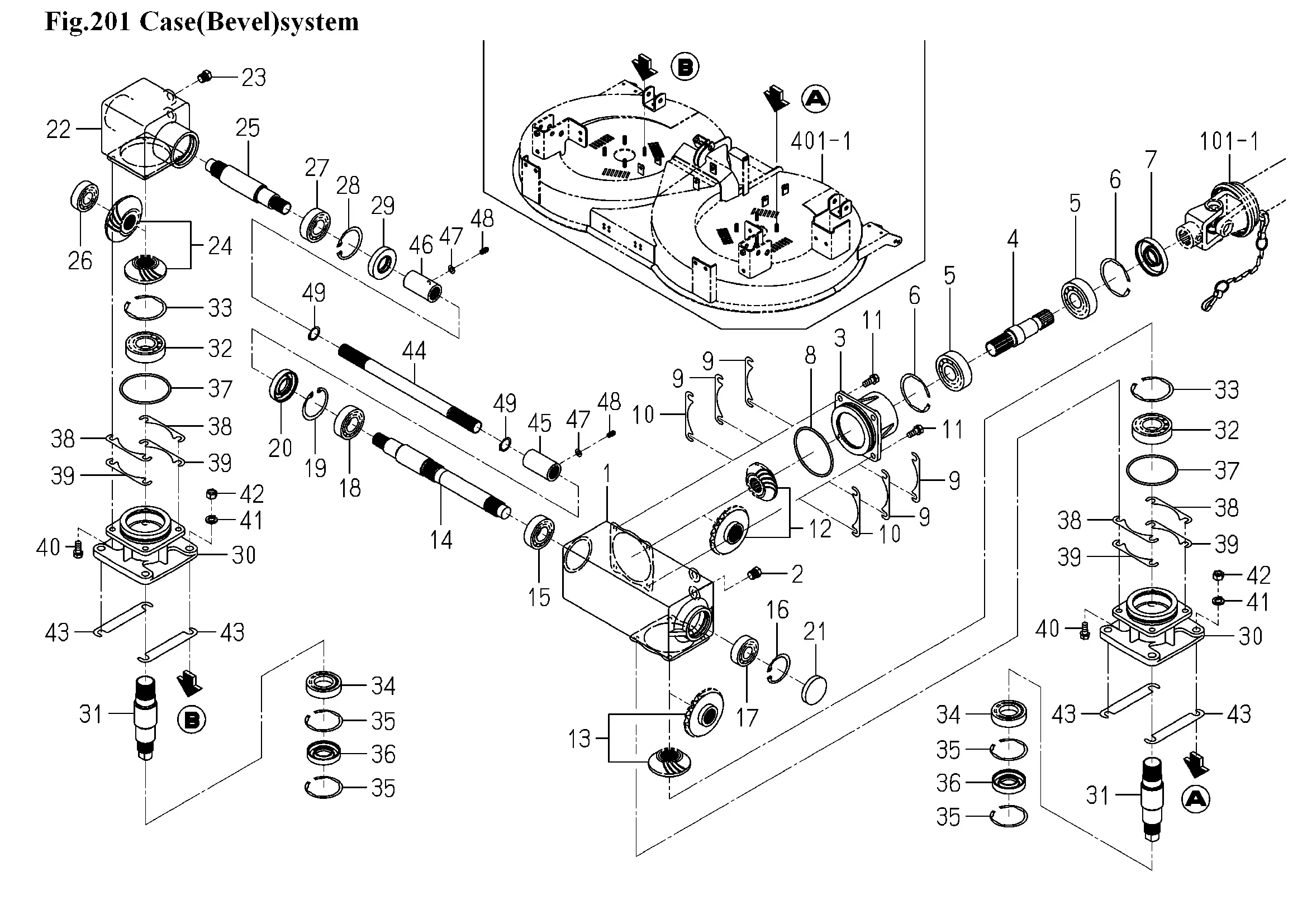

Getriebe
Ersatzteile (49 Teile)
1
8668-201-001-02
2
PLUG,DRAIN (1/4)
3
METAL/INPUT
4
SHAFT/INPUT
5
BEARING,RB/6305
6
RING,SNAP/R62
7
SEAL/OIL
8
O-RING/1A,G80
9
SHIM/0.1
10
SHIM/0.2
11
V211-560-802-00
12
Kegelradsatz 19-2
13
GEAR/BEVEL/25-2 SET
14
8668-201-002-10
15
BEARING,RB/6205
16
RING,SNAP/47 C
17
V600-110-620-40
18
BEARING,RB/6205
19
RING,SNAP/52 C
20
SEAL,OIL/TC255210
21
1564-201-003-00
22
CASE/BEVEL/RH
23
PLUG,DRAIN (1/4)
24
GEAR/BEVEL/25-2 SET
25
8667-201-005-10
26
V600-110-620-40
27
BEARING,RB/6205
28
RING,SNAP/52 C
29
SEAL,OIL/TC255210
30
8668-201-057-00
31
Messerwelle
32
BEARING,RB/6206
33
RING,SNAP/R62
34
BEARING,RB/6006
35
V707-140-055-00
36
SEAL,OIL/TC305512
37
O-RING/G75
38
SHIM/0.1
39
SHIM/0.2
40
V211-560-802-00
41
WASHER,SP/M10
42
NUT/M10
43
8667-201-009-10
44
8668-201-004-12
45
Buchse 18x30x55
46
COUPLING/18X30X55
47
V411-260-006-00
48
NIPPLE,GREASE
49
RING/SNAP/CS20
