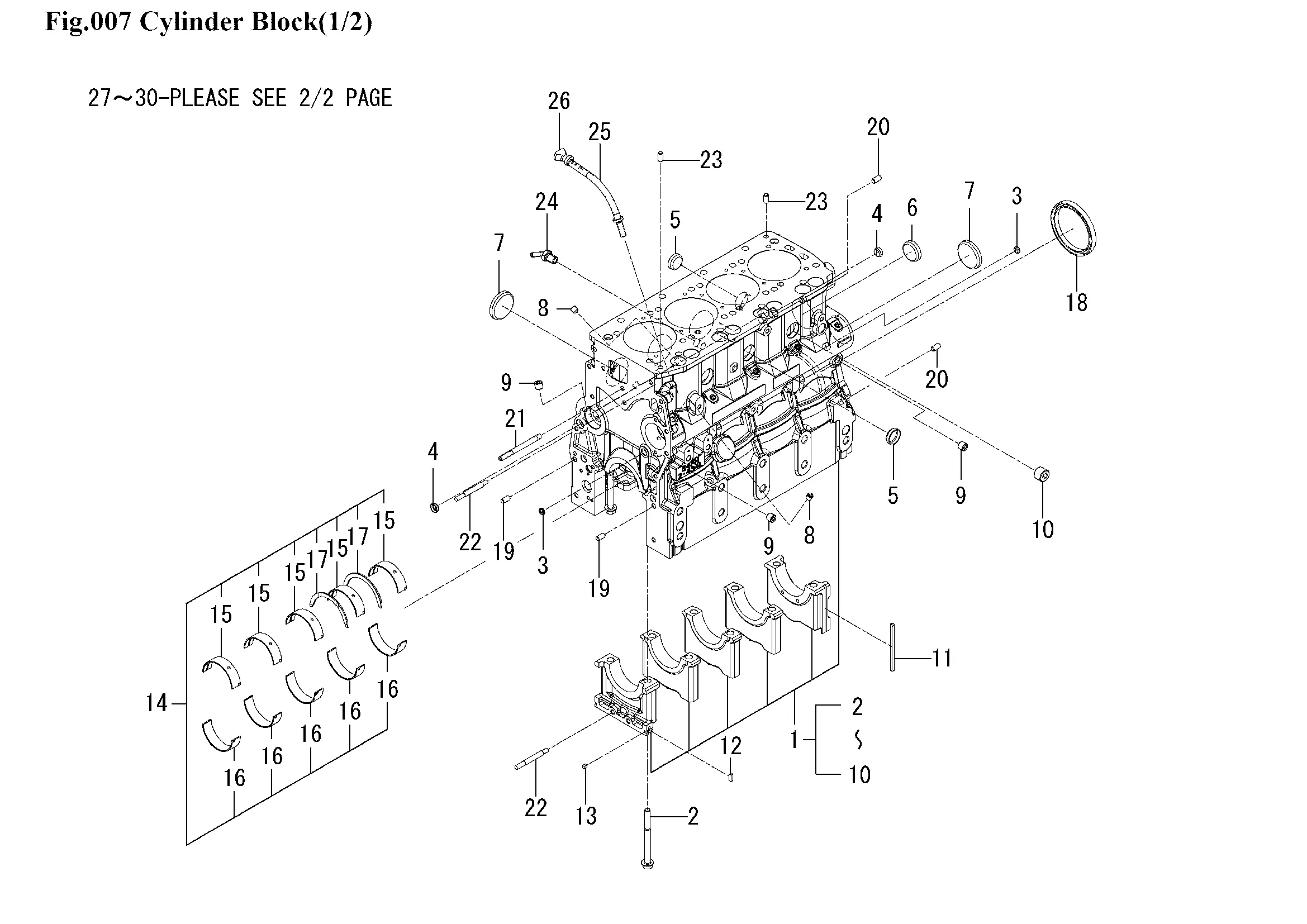

Motorblock
Ersatzteile (47 Teile)
1
6211-210-120-00
2
BOLT
3
CUP/SEALING/12
4
CUP/SEALING/16
5
CUP/SEALING/28
6
CUP/SEALING/36
7
CUP/SEALING/50
8
6209-605-007-10
9
6209-605-003-20
10
PLUG/PT1/2
11
SEAL/BEARINGCAP
12
6211-258-007-00
13
SEAL,BEARING CAP/7
14
BEARING/CRANKSET
15
BEARING/CRANK/UPPER
16
BEARING/CRANK/LOWER
17
BEARING/THRUST/CRANK
18
OILSEAL
19
PIN/STRAIGHT
20
PIN/STRAIGHT
21
6209-300-007-00
22
STUD/M8X60/7T
23
PIN/STRAIGHT
24
PIPE/WATERDRAIN
25
GUIDE/LEVELGAGE COMP
26
LEVELGAUGE
27
6213-342-016-00
28
EYEBOLT/OILJET ASSY
29
PIN/SPRING
30
PIPE/WATER/HOUSING
31
6213-160-013-00
32
RING,SNAP/12 C
33
PISTON/VALVE/RELIEF
34
6213-163-007-10
35
SPRING/RELIEF VALVE
36
V780-140-000-2B
37
O-RING/1A,P18
38
PIPE/BREATHER
39
BREATHER ASSY
40
ELEMENTKIT
41
6209-360-220-00
42
CLIP/HOSE/12.6-13.4
43
J061-208-010-00
44
6209-360-213-00
45
CLIP/HOSE/18-22
46
HOLDER/JE/9-9
47
V231-360-801-20
