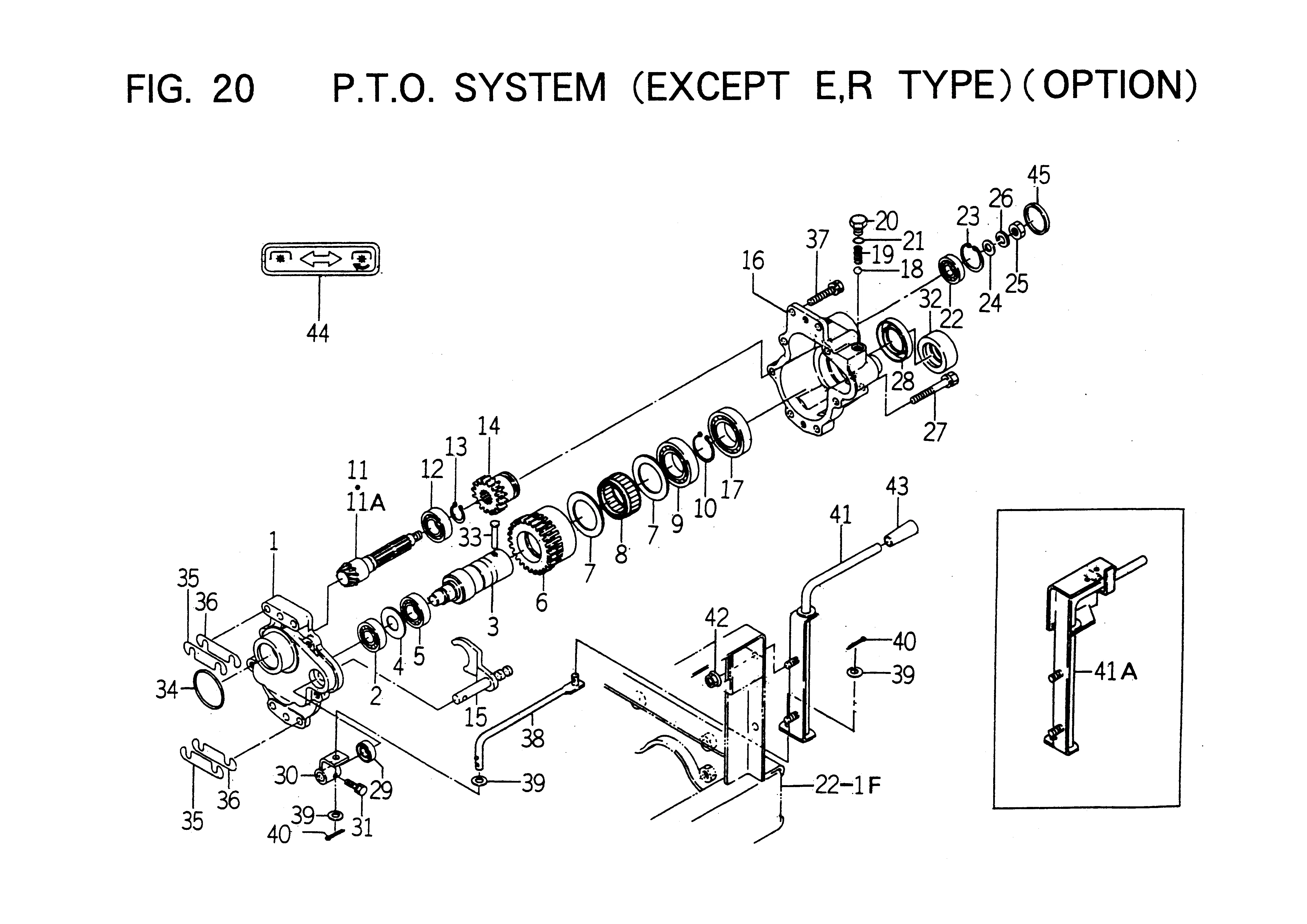

Heckzapfwelle
Ersatzteile (48 Teile)
1
1593-341-001-40
2
BEARING,RB/6203
3
1593-341-200-20
4
Distanzscheibe 17x30x2
5
BEARING,RB/6004
6
Zahnrad, PTO
7
Distanzscheibe 48x57x3
8
Kupplung
9
Kugellager
10
RING,SNAP/35 C
11
Welle, PTO
11A
1593-341-003-20
12
BEARING,RB/6004
13
RING,SNAP/20 C
14
Zahnrad, PTO
15
Schaltgabel, Heckzapfwelle
16
1593-341-002-40
17
Kugellager
18
BALL,STEEL
19
SPRING,SHIFTER
20
Schraube M10x12
21
O-RING/1A,P10
22
Kugellager
23
RING,SNAP/35 C
24
1365-121-005-00
25
V331-460-010-00
26
WASHER,SP/M10
27
V211-260-805-00
28
SEAL,OIL/TC35558
29
Wellendichtring
30
1593-341-220-10
31
V210-260-602-50
32
Gummiring, PTO
33
Bolzen, PTO
34
O-RING/1A,G50
35
1593-203-004-20
36
1593-203-005-20
37
V211-260-804-00
38
1593-341-240-20
39
WASHER,PL/M8
40
V500-163-001-50
41
Schalthebel, PTO
41A
Schalthebel, PTO
42
V363-260-008-00
43
4106-105-303-00
44
1593-341-012-10
45
1337-708-007-00
ob
Profilbuchse D29,5/d25/L75
