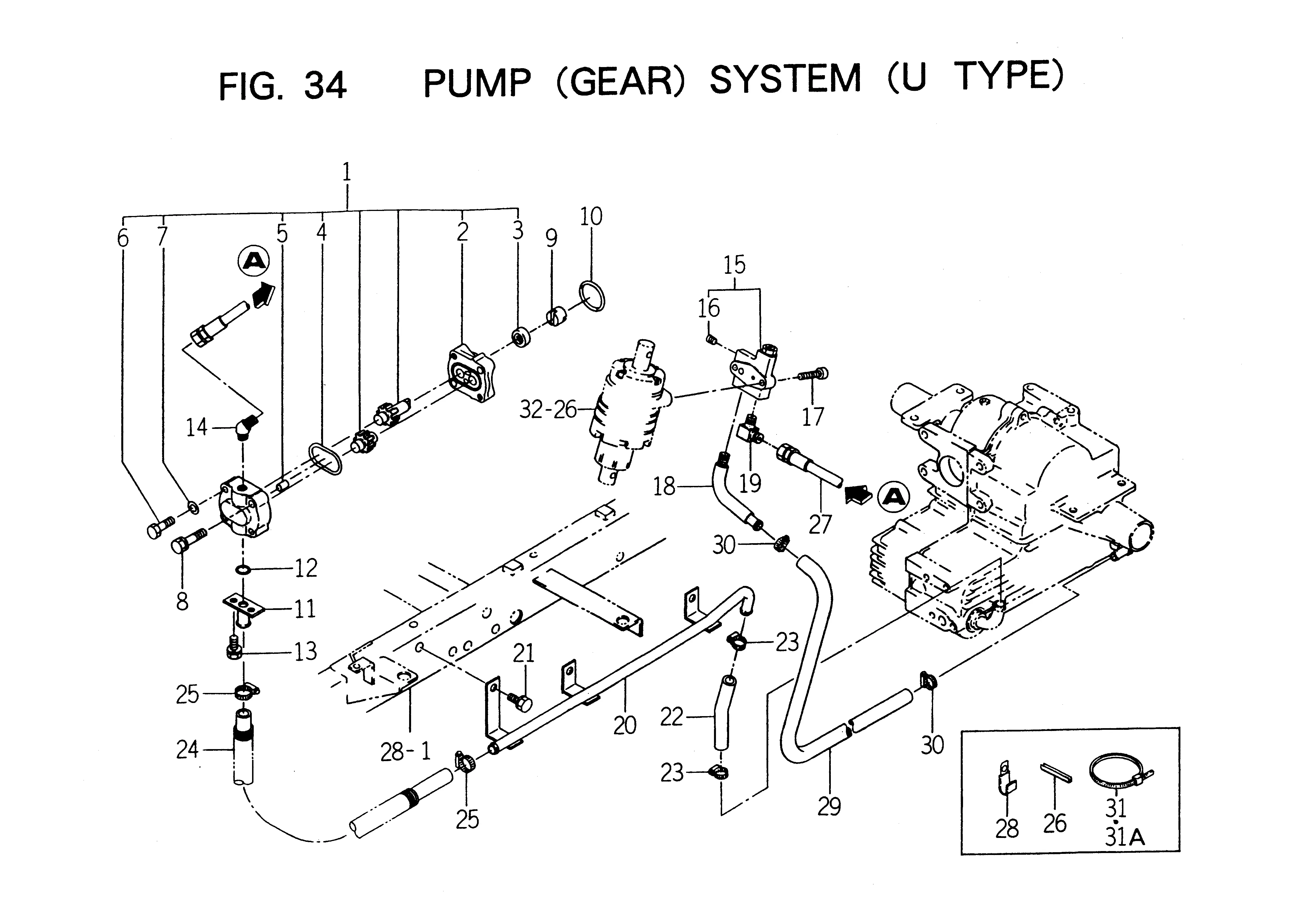

Pumpe, Filter, Leitungen U-Typ
Ersatzteile (32 Teile)
1
Hydraulikpumpe
2
K130-003-003-00
3
SEAL,OIL/TC15257
4
O-RING/1A,S56
5
KNOK
6
V201-260-804-00
7
WASHER,SP/M8
8
V211-260-804-00
9
CONNECTOR
10
O-RING/1A,S40
11
SUCTION/OUT COMP
12
O-RING/1A,P16
13
V210-260-601-60
14
ADAPTER/45DEG
15
Ventil
16
PLUG/SCREW/SEAL
17
1631-408-003-00
18
Hydraulikleitung
19
ADAPTER/90DEG/PUMP
20
1631-408-210-00
21
BOLT,S/M10X20
22
Schlauch
23
J061-114-024-00
24
1631-408-002-00
25
J061-114-024-00
26
LINING/50
27
Schlauch
28
HOLDER/JE/9-9
29
2157-410-001-00
30
J061-114-024-00
31
3746-172-013-00
31A
3737-172-010-00
