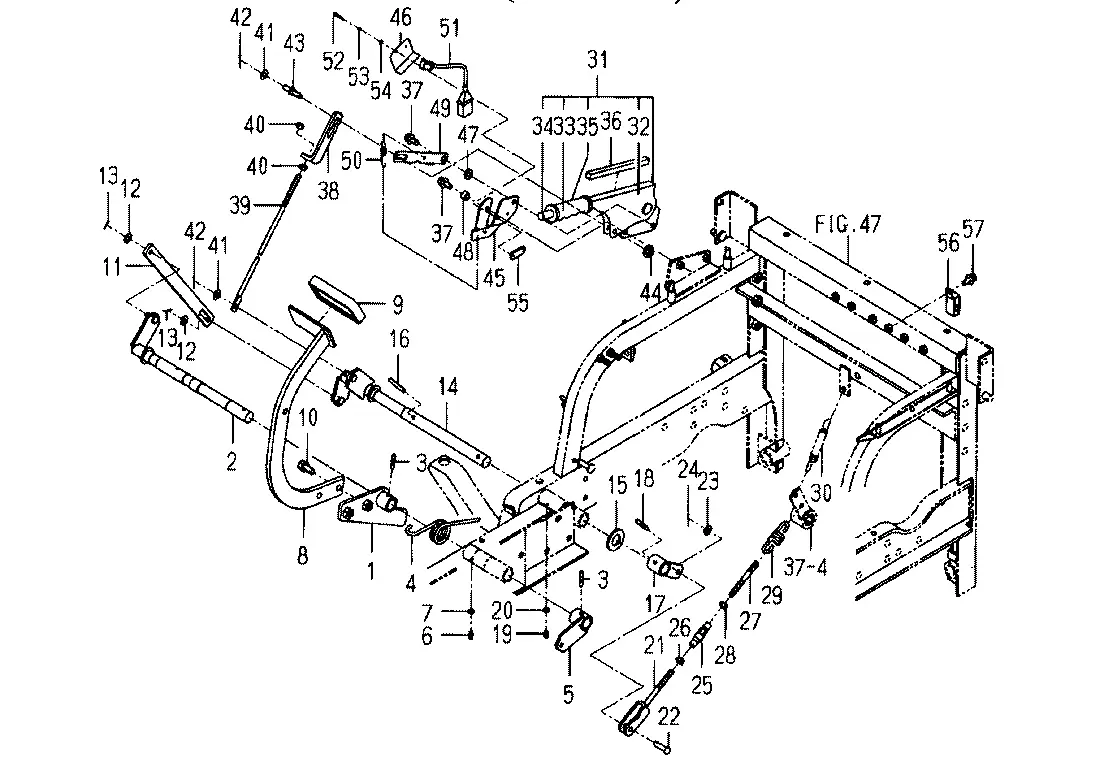

Bremspedal,Gestänge SGR19HL
Ersatzteile (57 Teile)
1
1705-312-210-00
2
1705-312-310-00
3
1480-304-002-00
4
Feder
5
1705-312-250-00
6
NIPPLE,GREASE
7
V401-160-006-00
8
PEDAL/BRAKE COMP
9
Pedalgummi, Bremse (rot)
10
V211-261-002-50
11
1705-312-011-00
12
WASHER,PL/M8
13
PIN,SPLIT/2.5X15
14
Bremswelle
15
WASHER,PL/M20
16
V580-140-604-00
17
Arm
18
1480-304-002-00
19
NIPPLE,GREASE
20
V401-160-006-00
21
1705-312-330-00
22
PIN,YOKE A
23
WASHER,PL/M8
24
PIN,SPLIT/2X20
25
TURNBUCKLE/M8
26
NUT/LH/M08
27
ROD/M08X67
28
NUT/M8
29
SPRING/HE060
30
Feder
31
1442-313-200-10
32
ROD
33
SPRING
34
BUTTON
35
Griff
36
1705-313-014-00
37
V211-360-803-00
38
1705-313-013-00
39
1705-313-011-00
40
NUT/M8
41
WASHER,PL/M8
42
PIN,SPLIT/2X20
43
Schraubbolzen M8x20
44
Kombimutter-M8
45
1705-313-004-00
46
1705-313-005-00
47
Buchse
48
Buchse 9x14x8
49
Platte
50
SPRING,TENSION/53
51
SWITCH,MERIT
52
SCREW/M3X20
53
WASHER,SP/M3
54
V411-260-003-00
55
Platte
56
RELAY/4P ASSY
57
BOLT,SP/M6X16
