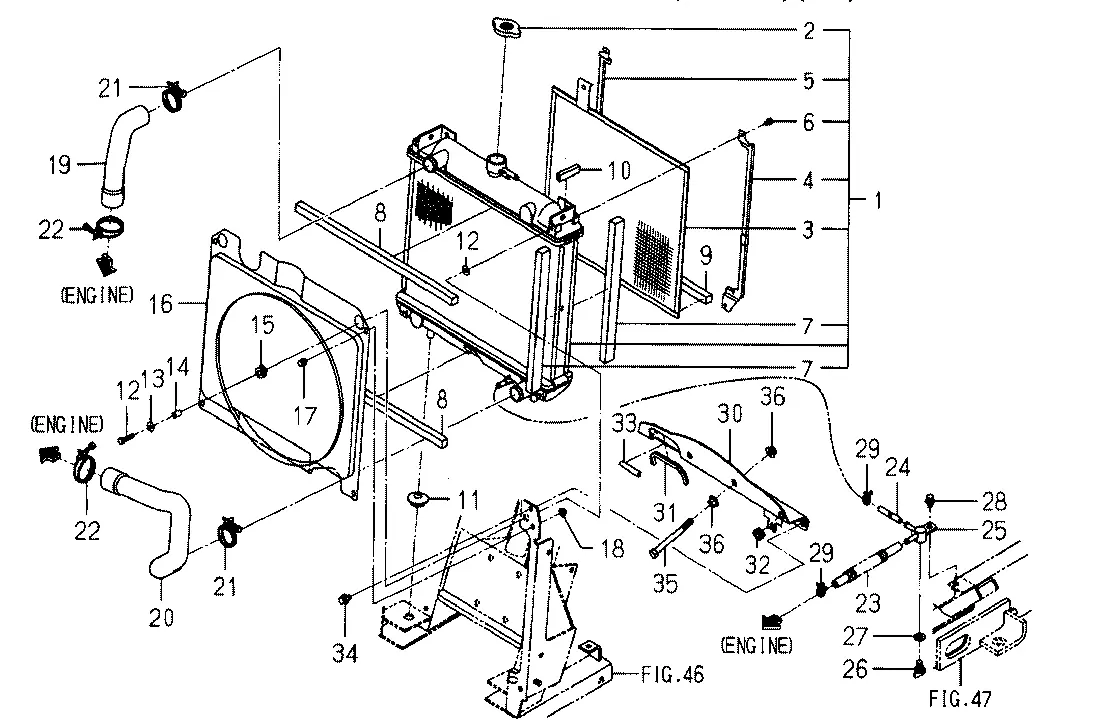

Kühler,Kühlerschläuche
Ersatzteile (36 Teile)
1
RADIATOR ASSY
2
CAP
3
PROTECTOR
4
GUIDE
5
GUIDE
6
SCREW/P
7
PACKING
8
1650-102-006-00
9
SEAL/15X15X380
10
3666-202-005-00
11
BUSH,LEVER
12
V200-260-603-00
13
WASHER
14
COLLAR
15
GROMMET
16
1705-102-310-00
17
V210-360-601-20
18
NUT/WASHER/M6
19
Kühlerschlauch
20
HOSE/RADIATOR/LOWER
21
J061-230-038-00
22
CLAMP/WIRE/36-44
23
1705-102-260-00
24
1705-102-015-00
25
CONNECTOR
26
1424-101-203-00
27
PACKING
28
BOLT,SP/M8X16
29
J061-210-015-00
30
1705-102-230-10
31
TRIM/130
32
GROMMET
33
LINING/50
34
BOLT,SP/M8X16
35
V201-261-010-00
36
NUT/WASHER/M10
