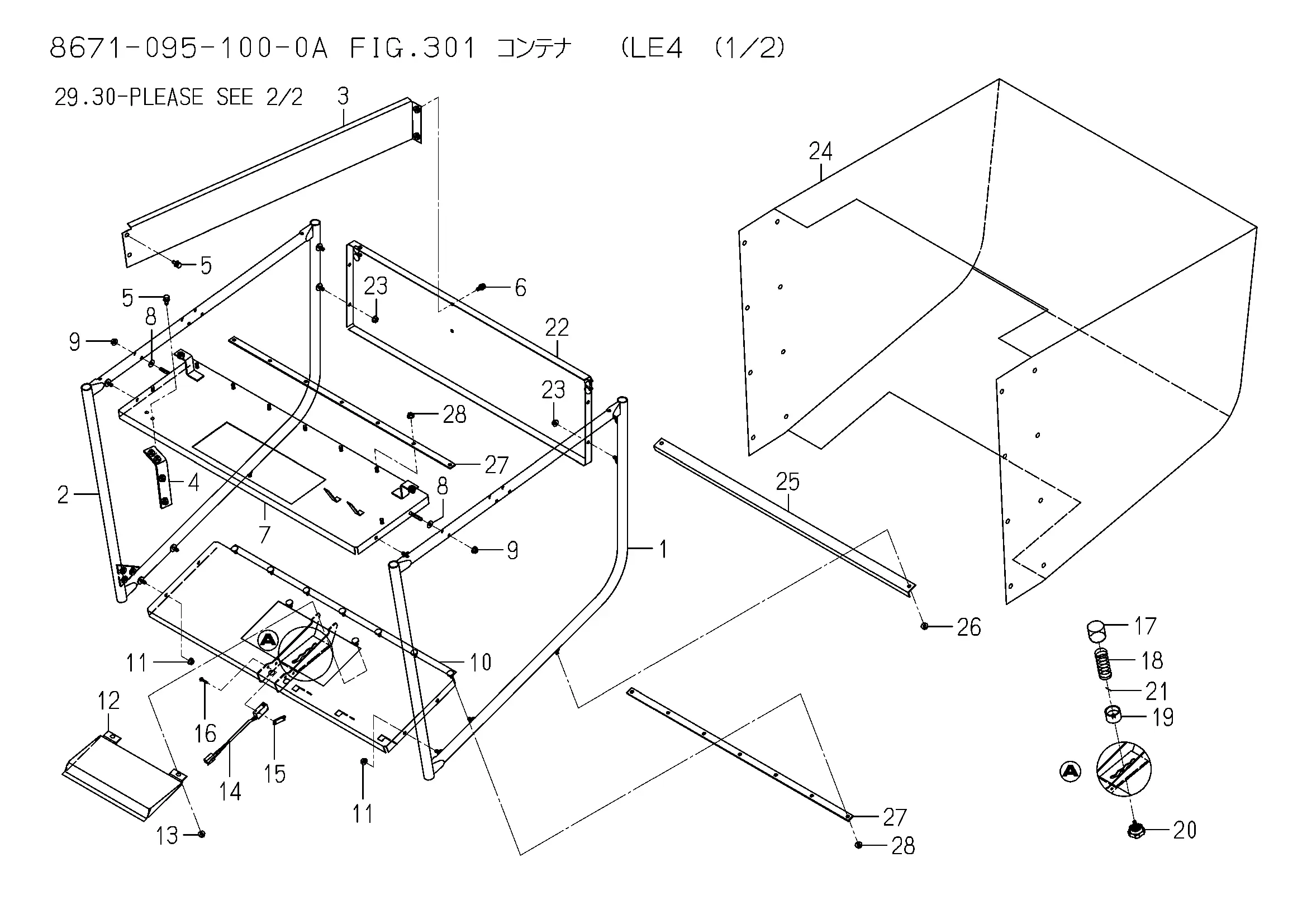

Grasfangbox
Ersatzteile (53 Teile)
1
8671-305-210-10
2
8671-305-220-10
3
Blech
4
Halter 25x125
5
BOLT,SP/M6X16
6
SCREW,SP/M6X16
7
Abdeckung, oben
8
3824-248-027-00
9
NUT/WASHER/M6
10
Bodenblech
11
NUT/WASHER/M6
12
PLATE/SENSOR COMP
13
NUT/WASHER/M6
14
SWITCH ASSY
15
PLATE,SWITCH
16
SCREW/M03X20
17
CUP/SPRING
18
Druckfeder
19
NUT/ADJUST
20
BOLT/KNOB/M06X20
21
V500-161-601-00
22
Platte, hinten
23
NUT/WASHER/M6
24
Fangtuch (NETTO) siehe 8671-305-011-20
25
Leiste 770x25
26
NUT/WASHER/M6
27
8671-305-008-10
28
NUT/WASHER/M6
29
Halter, li
30
Platte
31
NUT/WASHER/M6
32
Halter, re
33
Platte
34
NUT/WASHER/M6
35
Winkel 25x72
36
NUT/WASHER/M6
37
Abdeckung, Container oben
38
Halteblech
39
V411-260-003-00
40
W296-202-405-70
41
SWITCH ASSY
42
PLATE,SWITCH
43
SCREW/M03X20
44
Platte, Containerdeckel
45
1725-604-051-00
46
Drehknopf
47
Feder
48
V120-364-000-80
49
V301-260-004-00
50
V401-160-004-00
51
SCREW/TRUSS/M06X25
52
PLATE/LOCK COMP
53
V210-260-601-60
