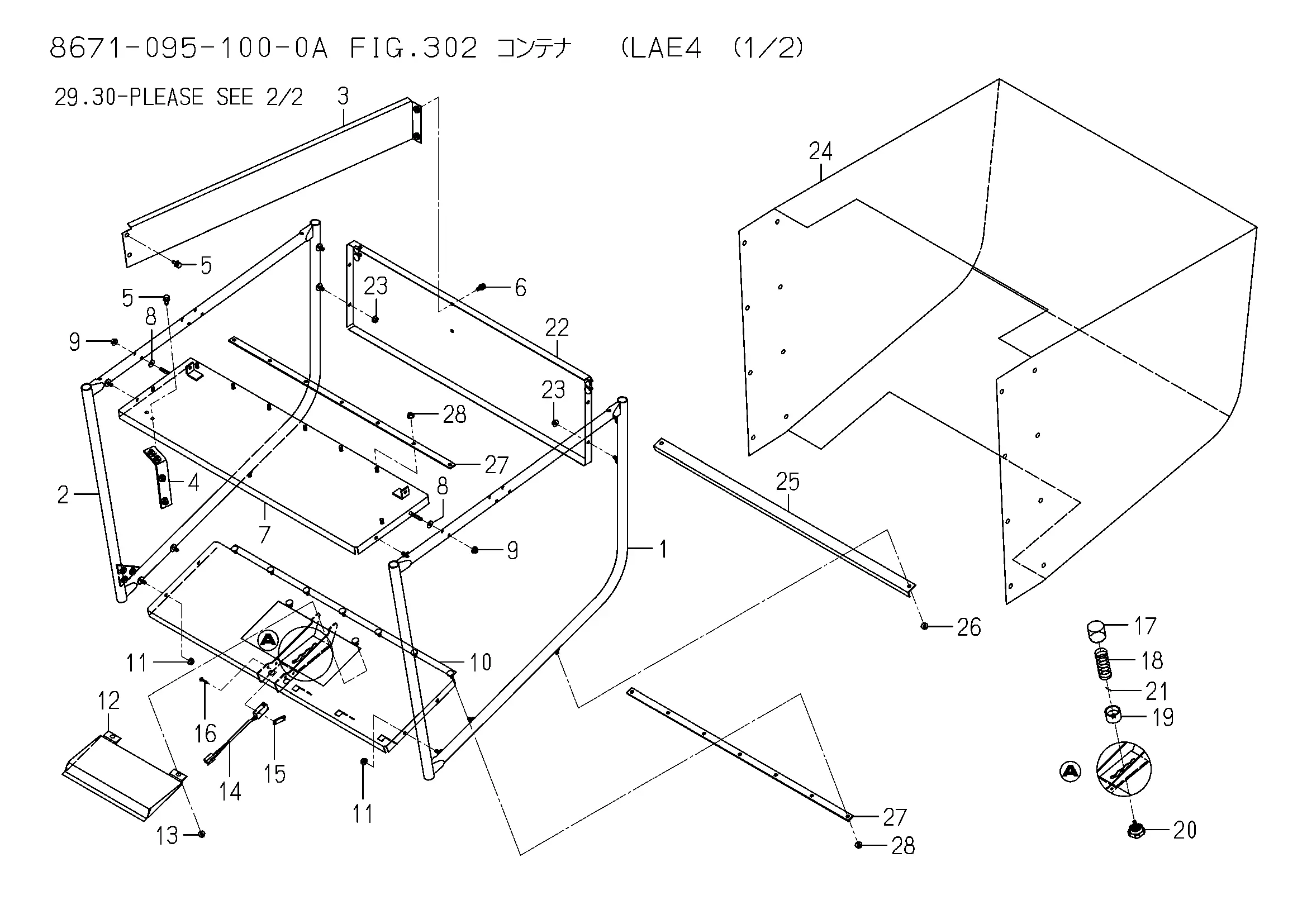

Grasfangbox
Ersatzteile (50 Teile)
1
8671-305-210-10
2
8671-305-220-10
3
Blech
4
Halter 25x125
5
BOLT,SP/M6X16
6
SCREW,SP/M6X16
7
8671-355-270-00
8
3824-248-027-00
9
NUT/WASHER/M6
10
Bodenblech
11
NUT/WASHER/M6
12
PLATE/SENSOR COMP
13
NUT/WASHER/M6
14
SWITCH ASSY
15
PLATE,SWITCH
16
SCREW/M03X20
17
CUP/SPRING
18
Druckfeder
19
NUT/ADJUST
20
BOLT/KNOB/M06X20
21
V500-161-601-00
22
Platte, hinten
23
NUT/WASHER/M6
24
Fangtuch (NETTO) siehe 8671-305-011-20
25
Leiste 770x25
26
NUT/WASHER/M6
27
8671-305-008-10
28
NUT/WASHER/M6
29
Halter, li
30
Platte
31
NUT/WASHER/M6
32
Halter, re
33
Platte
34
NUT/WASHER/M6
35
Winkel 25x72
36
NUT/WASHER/M6
37
Deckel
38
Handgriff
39
V411-260-010-00
40
SCREW/TRUSS/M06X25
41
PLATE/LOCK COMP
42
V210-260-601-60
43
Strebe
44
Halter
45
PLATE/Z/16X82/L COMP
46
PLATE/Z/16X82/R COMP
47
Platte, li
48
Platte, re
49
NUT/WASHER/M6
50
V301-260-006-00
