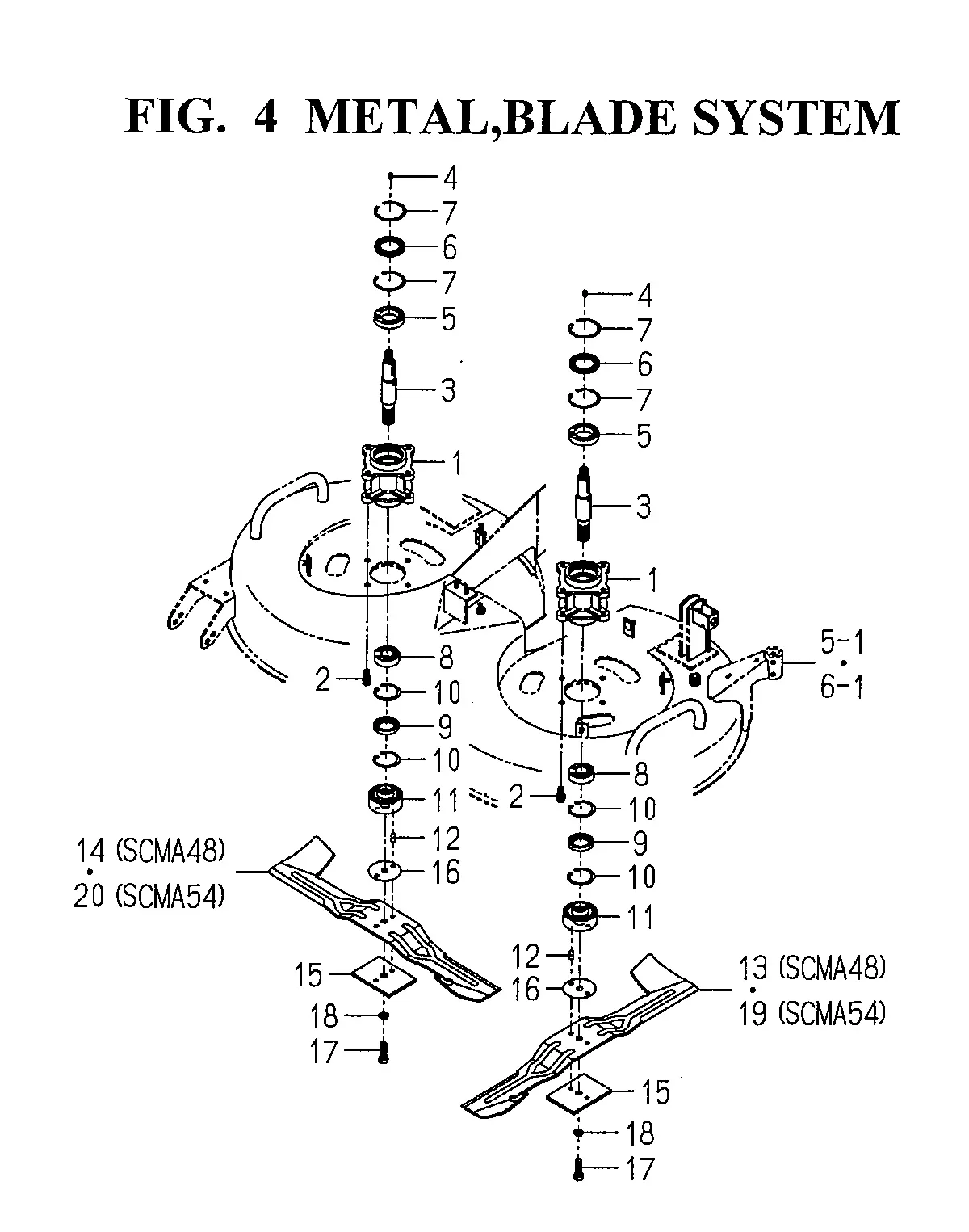

Messer, -Lagerung
Ersatzteile (36 Teile)
1
Messerwellengehäuse
1
Messerwellengehäuse
2
BOLT,S/M10X25/7T
2
BOLT,S/M10X25/7T
3
Welle
3
Welle
4
NIPPLE,GREASE
4
NIPPLE,GREASE
5
BEARING,RB/6908
5
BEARING,RB/6908
6
SEAL/OIL
6
SEAL/OIL
7
RING,SNAP/R62
7
RING,SNAP/R62
8
BEARING/BALL 6205SH2
8
BEARING/BALL 6205SH2
9
SEAL,OIL/TC35528
9
SEAL,OIL/TC35528
10
RING,SNAP/52 C
10
RING,SNAP/52 C
11
8663-301-002-10
11
8663-301-002-10
12
PIN/08X18 *
12
PIN/08X18 *
13
8663-306-001-10
14
8663-306-002-10
15
PLATE/I/80X110 COMP
15
PLATE/I/80X110 COMP
16
SHIM/1.2
16
SHIM/1.2
17
BOLT
17
BOLT
18
WASHER,SP/M12
18
WASHER,SP/M12
19
8665-306-001-10
20
8665-306-002-10
