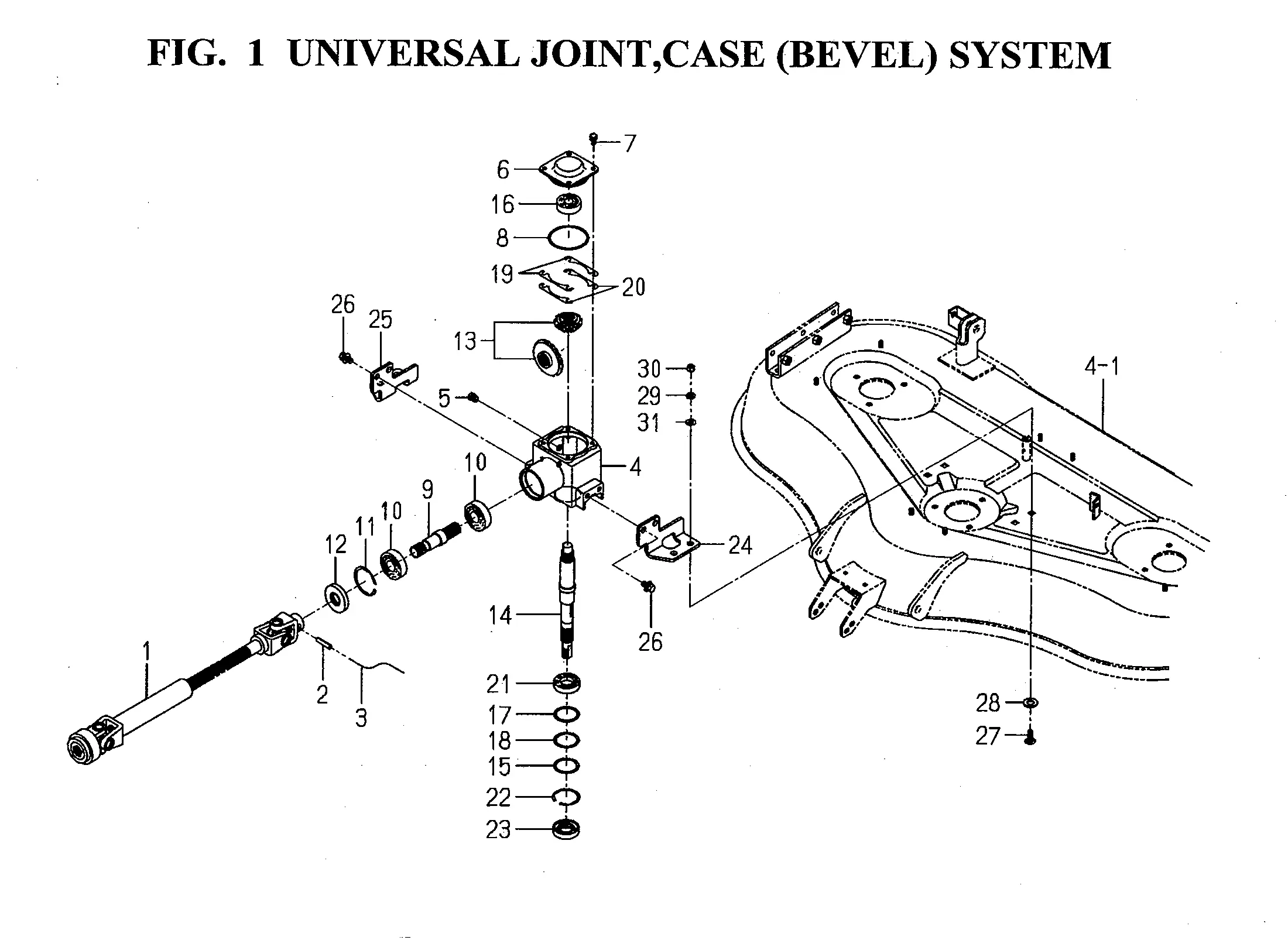

Gelenkwelle, Getriebe
Ersatzteile (31 Teile)
1
JOINT/UNIVERSAL SET
2
V580-140-804-00
4
Getriebegehäuse
5
PLUG,DRAIN (1/4)
6
Getriebeabdeckung
7
V211-260-801-60
8
O-RING/1A,G80
9
SHAFT/INPUT
10
1594-218-001-00
11
RING,SNAP/R62
12
SEAL/OIL
13
GEAR/BEVEL/28-1 SET
14
SHAFT/OUTPUT
15
WASHER/45X55X01
16
BEARING,RB/6304
17
SHIM/0.1
18
SHIM/0.2
19
SHIM/0.1
20
SHIM/0.2
21
BEARING,RB/6006
22
V707-140-055-00
23
SEAL,OIL/TC305512
24
BRACKET/CASE/LH
25
BRACKET/CASE/RH
26
V211-661-002-00
27
BLOT/M10X25
28
WASHER,PL/M14
29
WASHER,SP/M10
30
NUT/M10
31
V411-260-010-00
oB
CASE/BEVEL/28-1 ASSY
