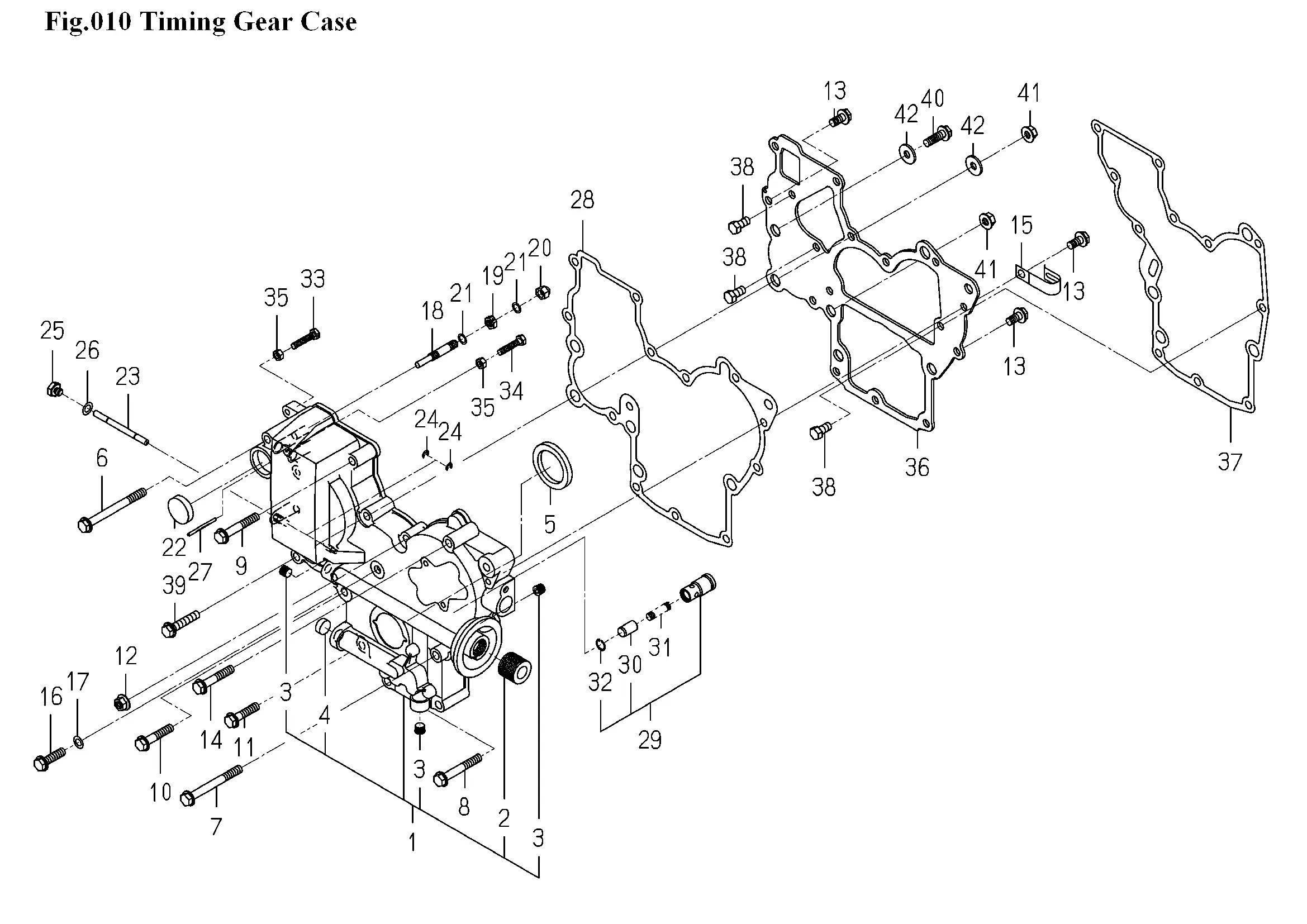

Stirnradgetriebegehäuse
Ersatzteile (42 Teile)
1
6211-310-006-50
2
CONNECTOR,OIL FILTER
3
6209-605-007-10
4
CUP/SEALING/16
5
SEAL,OIL
6
FLANGEBOLT/M8X85
7
FLANGEBOLT/M8X75
8
FLANGEBOLT/M8X55
9
FLANGEBOLT/M8X50
10
FLANGEBOLT/M8X40
11
V231-360-803-50
12
NUT/M08
13
FLANGEBOLT/M8X16
14
FLANGEBOLT/M8X45
15
HOLDER/JE/9-9
16
V231-360-803-00
17
WASHER/08X14X01
18
STOPPER,FULL-LOAD
19
V305-260-008-00
20
6209-490-006-00
21
PACKING
22
CAP,BLANK/30
23
PIN/ARM
24
RING,SNAP/4 E
25
PLUG/SCREW
26
WASHER/08X14X01
27
PIN,GROOVE
28
GASKET/GEARCASE
29
VALVE/RELIEF ASSY
30
6213-161-001-20
31
SPRING/RELIEF VALVE
32
RING,SNAP/12 C
33
6209-050-001-00
34
6209-050-002-00
35
V301-260-006-00
36
6211-311-005-30
37
6211-312-002-30
38
6902-050-816-00
39
FLANGEBOLT/M8X40
40
FLANGEBOLT/M8X25
41
NUT/M08
42
WASHER/9X22X2
