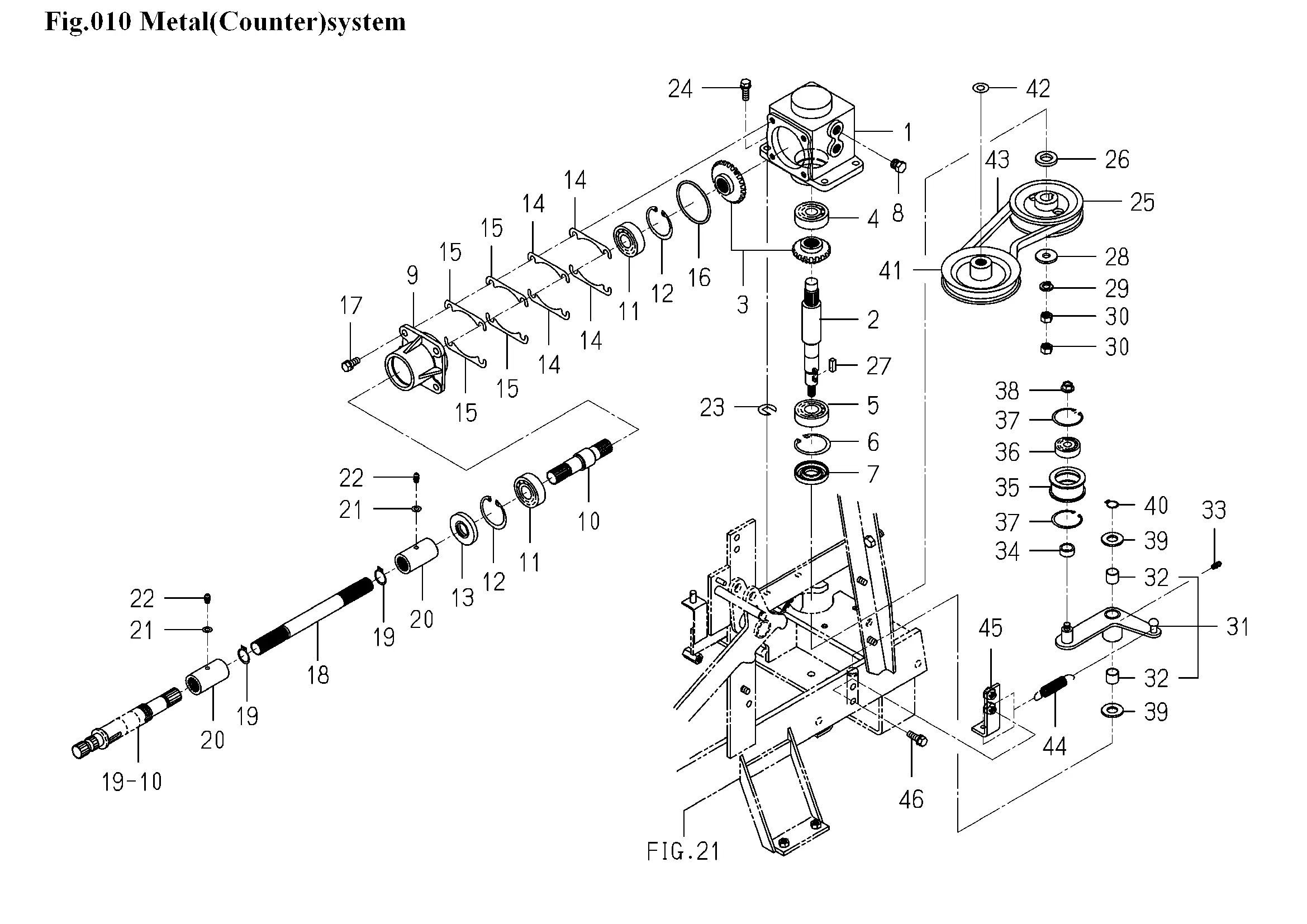

Winkelgetriebe, Hydrostat
Ersatzteile (46 Teile)
1
1782-122-001-10
2
1782-122-002-10
3
GEAR/BEVEL/23-1 SET
4
BEARING,RB/6303
5
V600-110-620-40
6
RING,SNAP/47 C
7
SEAL,OIL/TC20477
8
PLUG,DRAIN (1/4)
9
METAL/CASE
10
SHAFT/CASE
11
V600-110-620-40
12
RING,SNAP/47 C
13
SEAL,OIL/TC20477
14
SHIM/0.1
15
SHIM/0.2
16
O-RING/1A,G60
17
BOLT,S/M8X20
18
8670-201-008-10
19
RING/SNAP/CS20
20
COUPLING/18X30X55
21
V411-260-006-00
22
NIPPLE,GREASE
23
SHIM,PLANTING B/0.5
24
BOLT,SP/M8X25/7T
25
PULLEY/VB097
26
WASHER/17X30X05
27
KEY
28
3659-170-003-00
29
WASHER,SP/M10
30
NUT/M10
31
1782-122-700-10
32
BUSH,15X17X15
33
NIPPLE,GREASE
34
COLLAR/15X20X09
35
PULLY/FT045X020
36
V600-150-620-20
37
RING,SNAP/35 C
38
Kombimutter-M8
39
WASHER,PL/M14
40
Sicherungsring 15x1
41
PULLEY/VB101 COMP
42
V411-260-010-00
43
BELT/VB027
44
SPRING/HE074
45
PLATE/L/25X81 COMP
46
BOLT,S/M8X25/7T
