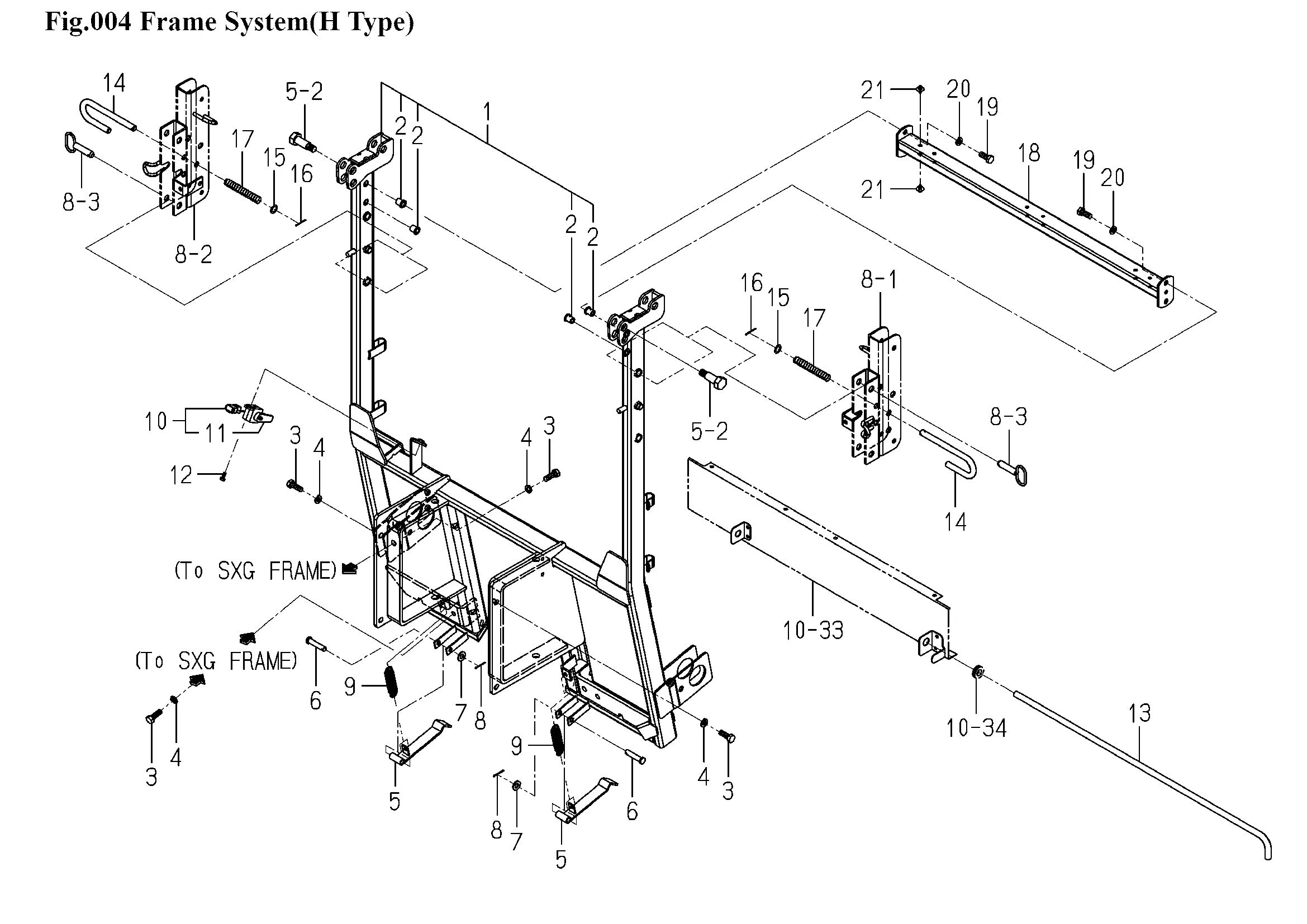

Rahmen
Ersatzteile (21 Teile)
1
FRAME/COLLECTOR/H
2
8664-156-317-00
3
3853-560-002-00
4
WASHER,SP/M12
5
HOOK COMP
6
PIN/12X56
7
V411-260-012-00
8
J932-500-007-00
9
SPRING/HE100
10
1716-680-330-10
11
ARM
12
BOLT,SP/M6X16
13
BAR
14
PIN
15
WASHER
16
V500-163-003-00
17
SPRING/HC120
18
FRAME/CENTER COMP
19
3853-560-001-00
20
WASHER,SP/M12
21
RIVET
