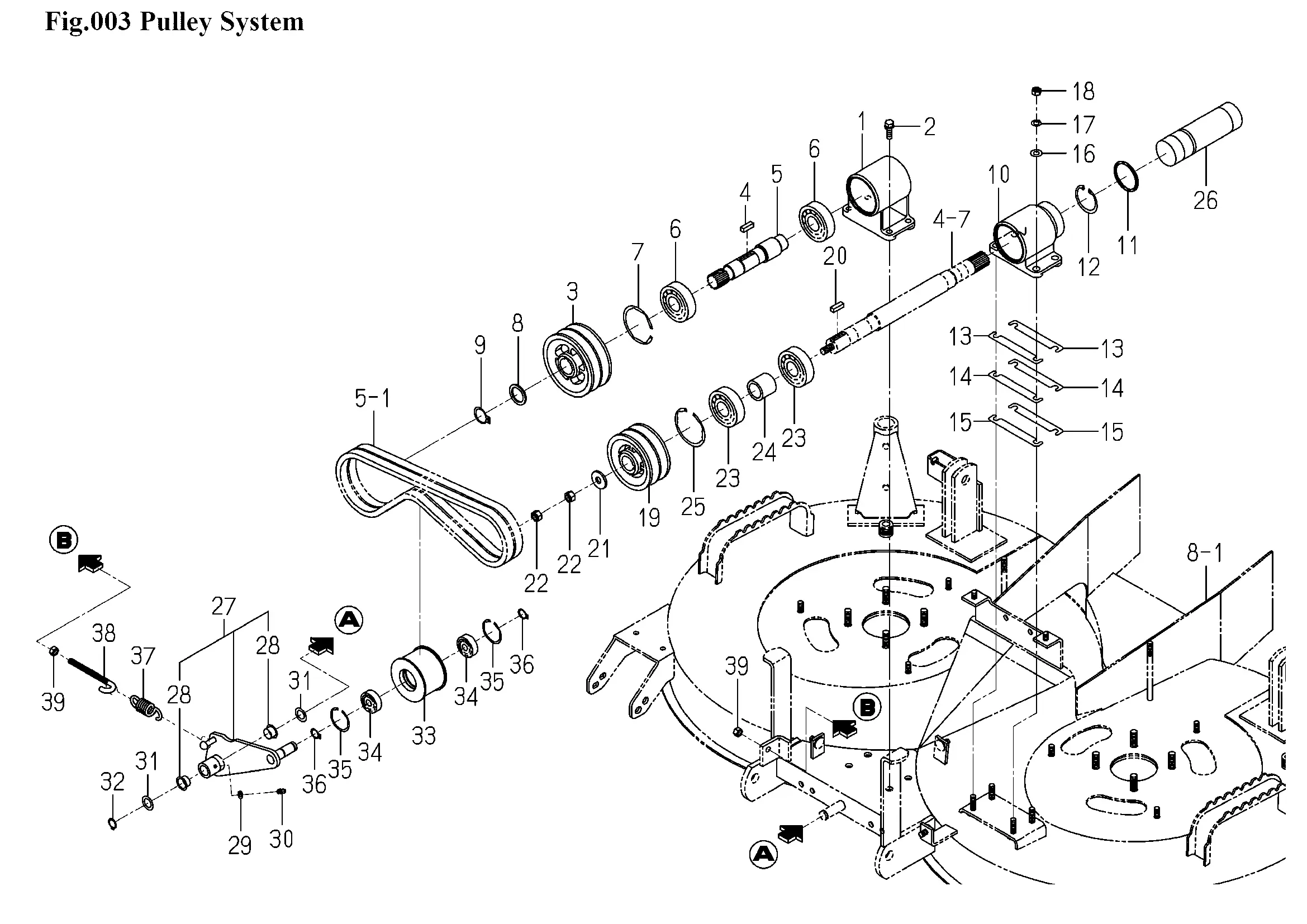

Riementrieb
Ersatzteile (39 Teile)
1
METAL/INPUT
2
BOLT,S/M8X25/7T
3
PULLEY/V2B102
4
KEY/07X07X22
5
8686-201-004-00
6
BEARING,RB/6305SS
7
RING,SNAP/R62
8
8686-201-017-00
9
RING,SNAP/25 C
10
METAL/PULLEY
11
V720-103-504-40
12
RING,SNAP/45 C
13
SHIM/0.2
14
SHIM/0.5
15
SHIM/1.0
16
WASHER,PL/M8
17
WASHER,SP/M8
18
NUT/M8
19
8663-201-057-10
20
KEY/07X07X22
21
WASHER/11X30X03
22
NUT/M10
23
BEARING,RB/6305SS
24
COLLAR/25X34X30
25
RING,SNAP/R62
26
TUBE/148
27
ARM/TENSION ASSY
28
BUSH/15X17X11
29
V401-160-006-00
30
NIPPLE,GREASE
31
WASHER
32
Sicherungsring 15x1
33
PULLEY/FT070X044
34
V600-150-620-20
35
RING,SNAP/35 C
36
Sicherungsring 15x1
37
SPRING
38
ROD,CHAIN TENSION
39
NUT/M8
