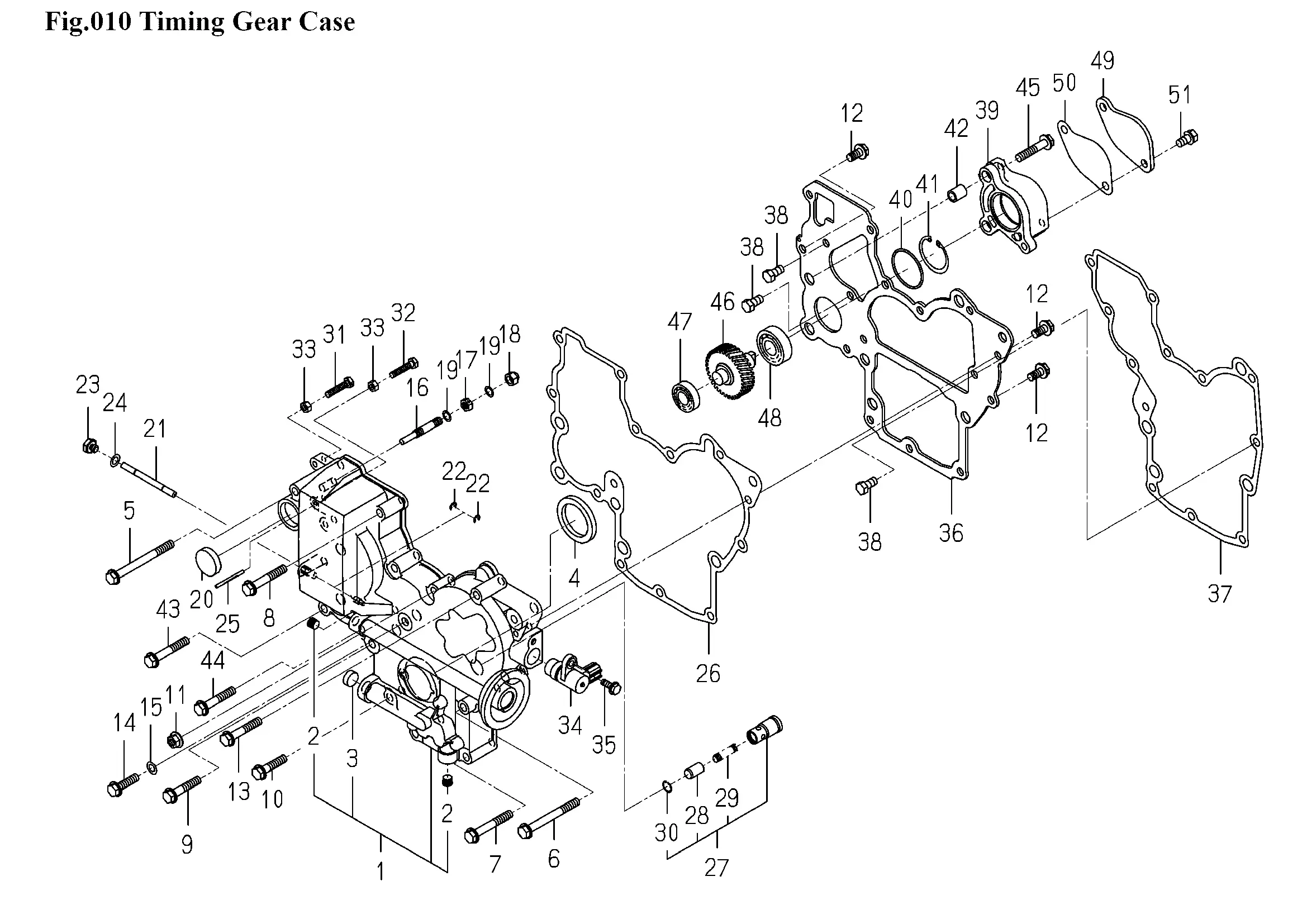

Stirnradgetriebe
Ersatzteile (51 Teile)
1
6211-310-062-20
2
6209-605-007-10
3
CUP/SEALING/16
4
SEAL,OIL
5
FLANGEBOLT/M8X85
6
FLANGEBOLT/M8X75
7
FLANGEBOLT/M8X55
8
FLANGEBOLT/M8X50
9
FLANGEBOLT/M8X40
10
V231-360-803-50
11
NUT/M08
12
FLANGEBOLT/M8X16
13
FLANGEBOLT/M8X45
14
V231-360-803-00
15
WASHER/08X14X01
16
STOPPER,FULL-LOAD
17
V305-260-008-00
18
6209-490-006-00
19
WASHER/PLATE/COPPER
20
CAP,BLANK/30
21
PIN/ARM
22
RING,SNAP/4 E
23
PLUG/SCREW
24
WASHER/08X14X01
25
PIN,GROOVE
26
GASKET/GEARCASE
27
VALVE/RELIEF ASSY
28
6213-161-001-20
29
SPRING/RELIEF VALVE
30
RING,SNAP/12 C
31
6209-050-001-00
32
6209-050-002-00
33
V301-260-006-00
34
SENSOR/REVOLUTION/L
35
FLANGEBOLT/M6X16
36
PLATE/FRONT
37
GASKET/PLATE
38
6902-050-816-00
39
SPACER,HYD,REAR
40
O-RING/1A,S42
41
RING,SNAP/40 C
42
6209-749-001-30
43
FLANGEBOLT/M8X50
44
FLANGEBOLT/M8X45
45
FLANGEBOLT/M8X40
46
GEAR/HYDRAULIC
47
BEARING,RB/6002
48
BEARING,RB/6203
49
6211-321-001-10
50
GASKET/COVER
51
V211-260-801-60
