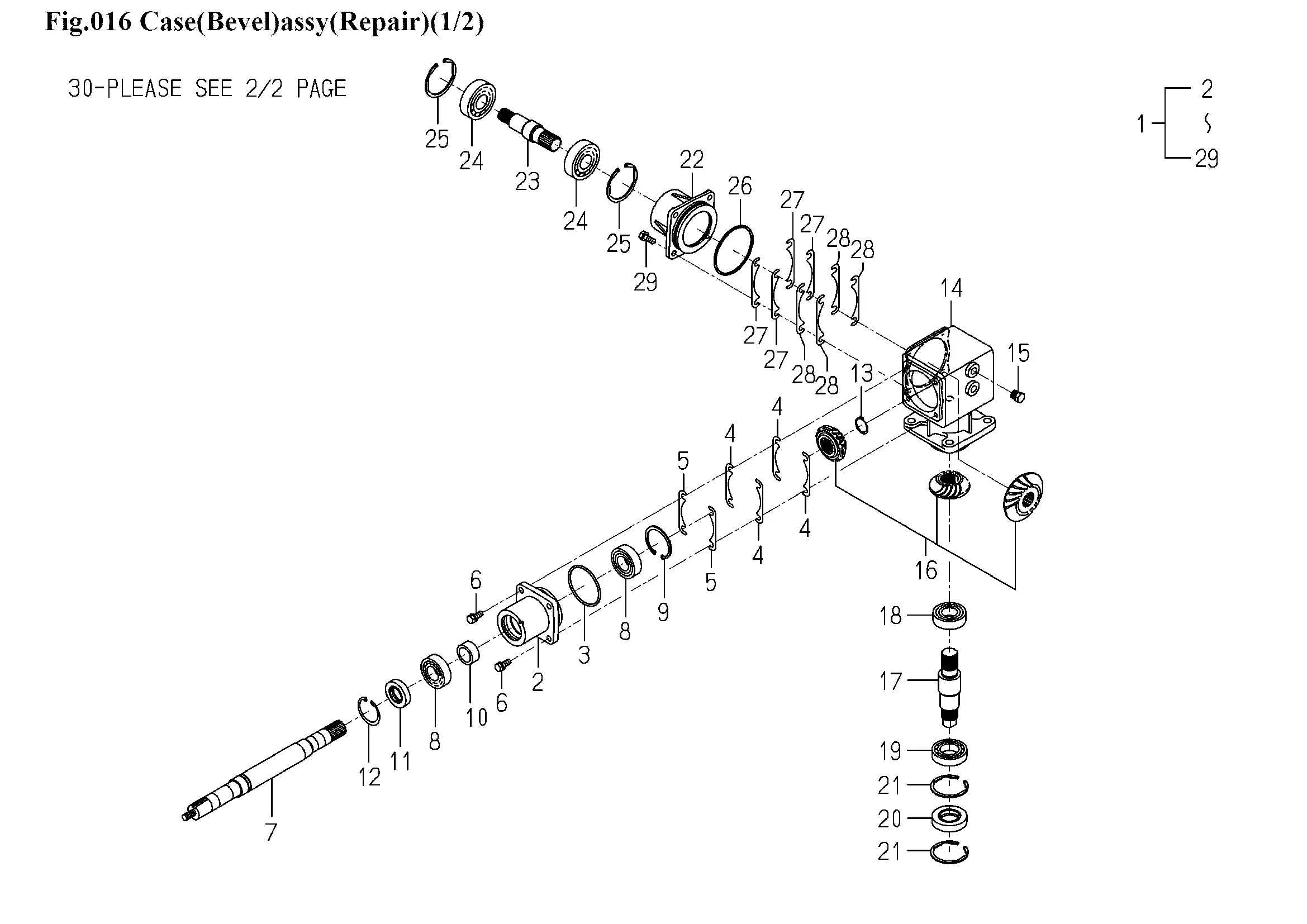

Getriebe kpl.
Ersatzteile (48 Teile)
1
CASE/BEVEL/LH ASSY
2
METAL/CASE
3
O-RING/1A,G65
4
SHIM/0.1
5
SHIM/0.2
6
V211-560-802-00
7
SHAFT/LH/54
8
BEARING/BALL 6205SH2
9
RING,SNAP/52 C
10
COLLAR/25X34X15
11
SEAL,OIL/TC284511
12
RING,SNAP/45 C
13
RING,SNAP/25 C
14
CASE/BEVEL
15
PLUG,DRAIN (1/4)
16
GEAR/B/21-25-21 SET
17
SHAFT/BLADE
18
BEARING/BALL 6205SH2
19
BEARING,RB/6006
20
SEAL,OIL/TC305512
21
V707-140-055-00
22
METAL/INPUT
23
8674-202-009-10
24
1594-218-001-00
25
RING,SNAP/R62
26
O-RING/1A,G80
27
SHIM/0.1
28
SHIM/0.2
29
V211-560-802-00
30
CASE/BEVEL/RH ASSY
31
CASE/BEVEL
32
PLUG,DRAIN (1/4)
33
COVER/CASE
34
V211-260-801-60
35
GEAR/BEVEL/25-2 SET
36
SHAFT/BLADE
37
BEARING/BALL 6205SH2
38
BEARING,RB/6006
39
SEAL,OIL/TC305512
40
V707-140-055-00
41
METAL/INPUT
42
8674-202-009-10
43
1594-218-001-00
44
RING,SNAP/R62
45
O-RING/1A,G80
46
SHIM/0.1
47
SHIM/0.2
48
V211-560-802-00
