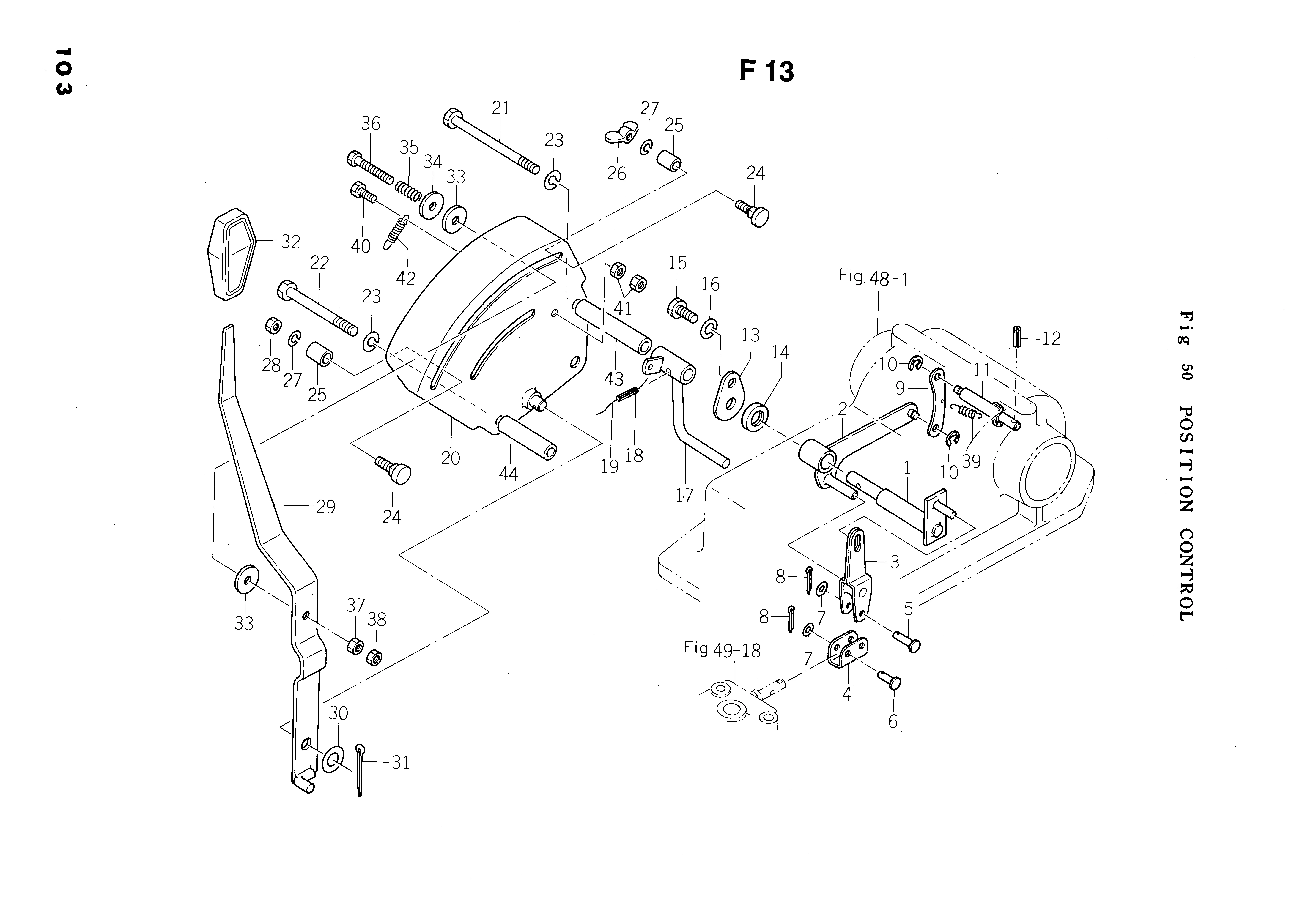

Bedienhebel, Heckhydraulik
Ersatzteile (43 Teile)
1
Welle, Lagereglung
2
Umlenkhebel, Lagereglung
3
Gabel, Lagereglung
4
Gabel, Lagereglung B
5
Stift 5x27
6
PIN/5X17
7
V411-160-005-00
8
V500-152-001-50
9
1480-504-008-00
10
RING,SNAP/4 E
11
Welle, Lagereglung
12
PIN,SPRING/3X16 W
13
Sicherungsplatte, Hydraulik
14
Wellendichtring
15
BOLT/M8X16
16
WASHER,SP/M8
17
Hebel, Hydraulikreglung
18
PIN,SPRING/5X16 W
20
Führungssegment, Heckhydrauli
21
V201-260-809-50
22
V201-260-807-50
23
WASHER,SP/M8
24
1421-507-016-20
25
COLLAR/9X14X8
26
V370-160-008-00
27
WASHER,SP/M8
28
V300-260-008-00
29
Hebel
30
V413-160-010-00
31
V500-152-501-80
32
Griff, Hydraulikhebel
33
Scheibe
34
WASHER/6X24X2
35
1424-507-015-00
36
V200-260-604-00
37
Mutter
38
V302-260-006-00
39
Feder
40
V200-260-606-00
41
Mutter
42
SPRING,TENSION (52)
43
1480-505-203-00
44
1480-505-204-00
