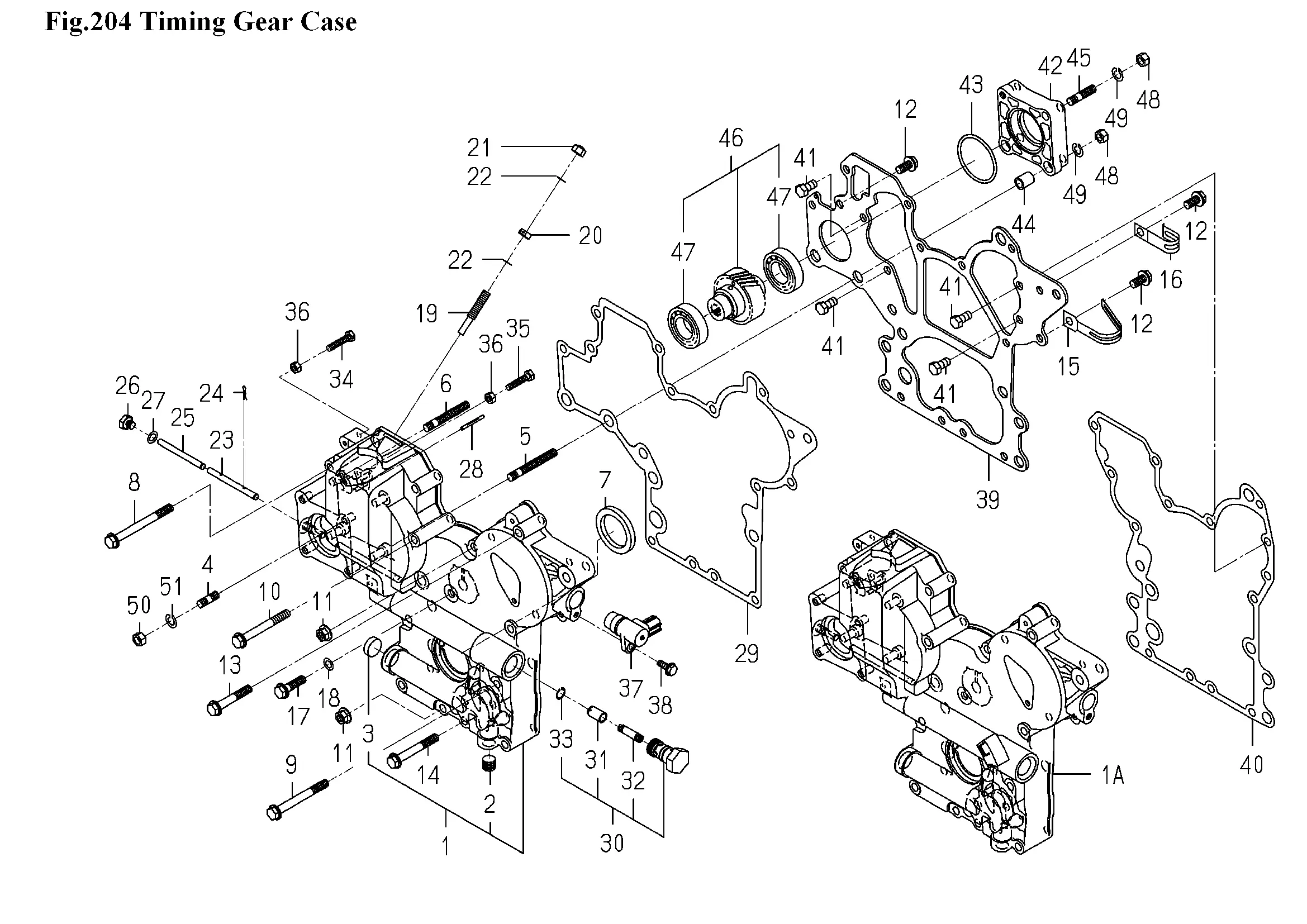

Stirnradgetriebe
Ersatzteile (51 Teile)
1A
Gehäuse
2
6209-605-003-20
3
CUP/SEALING/20
4
STUD
5
STUD
6
STUD
7
SEAL,OIL
8
FLANGEBOLT/M8X85
9
FLANGEBOLT/M8X75
10
FLANGEBOLT/M8X70
11
NUT/M08
12
FLANGEBOLT/M8X16
13
FLANGEBOLT/M8X50
14
FLANGEBOLT/M8X60
15
CLAMP
16
HOLDER/JE/9-9
17
V231-360-803-00
18
WASHER/08X14X01
19
6215-546-003-10
20
6209-409-001-00
21
NUT,CAP/M8
22
PACKING
23
PIN/ARM
24
PIN/SNAP
25
PIN
26
PLUG/SCREW
27
WASHER/08X14X01
28
PIN/GROOVE
29
6211-312-005-10
30
VALVE/RELIEF ASSY
31
PISTON/VALVE/RELIEF
32
SPRING/RELIEF VALVE
33
RING,SNAP/12 C
34
6209-050-001-00
35
6209-050-002-00
36
V301-260-006-00
37
SENSOR/REVOLUTION/R
38
FLANGEBOLT/M6X16
39
6211-311-013-20
40
6211-312-006-10
41
6902-050-816-00
42
SPACER
43
O-RING/1A,S50
44
PIN/TUBE
45
STUD
46
Welle
47
BEARING
48
NUT/M8
49
WASHER,SP/M8
50
NUT/M8
51
WASHER,SP/M8
