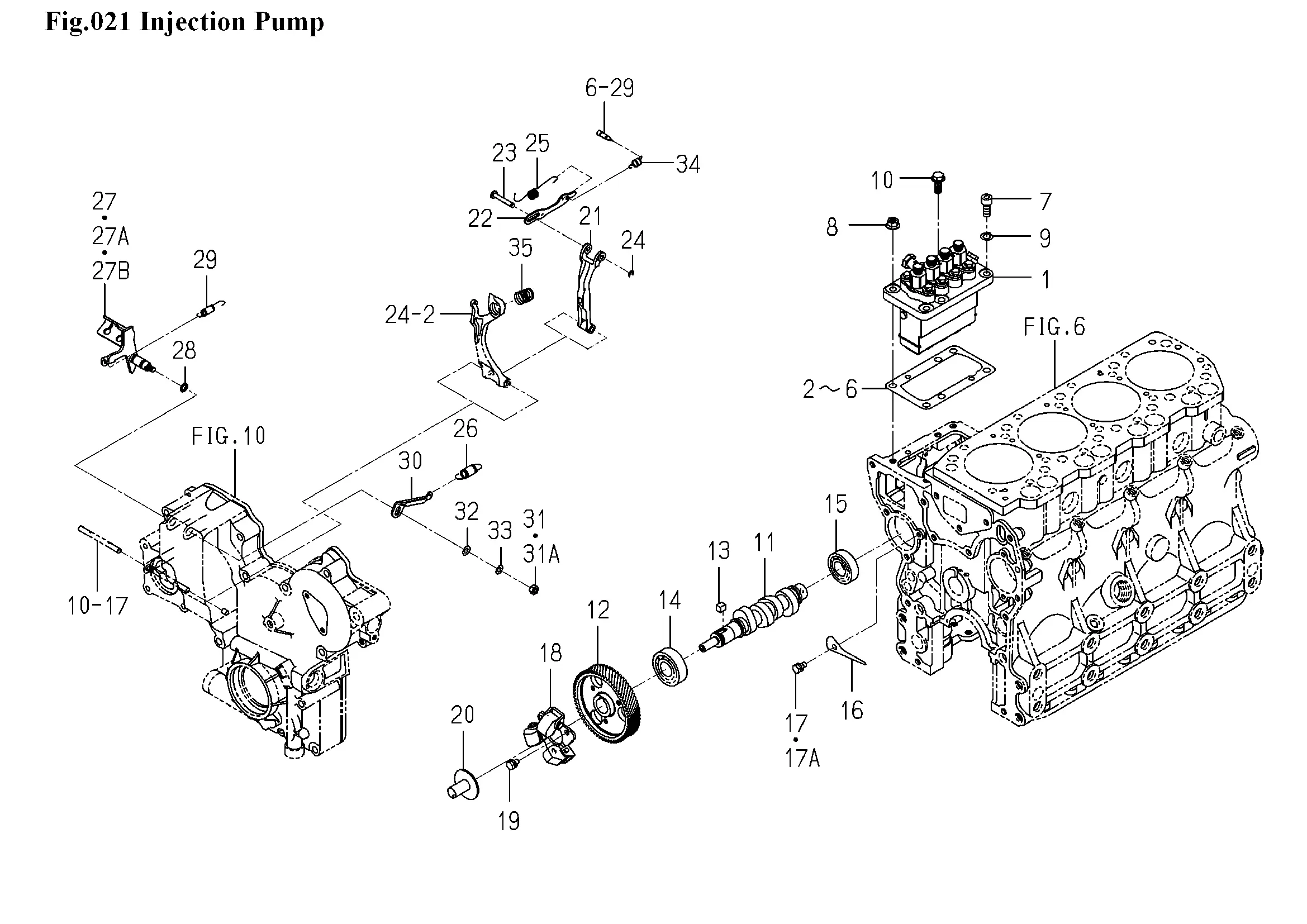

Einspritzpumpe
Ersatzteile (39 Teile)
1
INJECTIONPUMP ASSY
2
SHIM/INJECTION P/0.3
3
Ausgleichscheibe 0,1
4
SHIM/INJECTION P/0.2
5
SHIM/INJECTION P/0.4
6
SHIM/INJECTION P/0.5
7
V220-540-802-00
8
NUT/M08
9
WASHER,SP/M8
10
V231-360-802-00
11
CAMSHAFT/INJECTION P
12
GEAR/INJECTIONPUMP
13
KEY/07X05X09
14
BEARING/BALL
15
R.B.B
16
PLATE/THRUST/INJPUMP
17
Schraube M6x12
17A
V210-560-601-20
18
FLYWEIGHT ASSY
19
6209-030-043-00
20
THRUSTPIECE
21
6215-541-001-10
22
6215-543-010-00
23
PIN,CONTROL
24
RING,SNAP/4 E
25
SPRING/SETTING
26
SPRING/GOVERNOR
27
6215-541-024-30
27A
6215-541-024-40
27B
6215-541-024-50
28
O-RING/1A,P8
29
SPRING,RETURN
30
6215-549-007-10
31
6909-110-406-00
31A
V301-260-006-00
32
V411-260-006-00
33
V401-160-006-00
34
SPRING/STARTING
35
SPRING/IDLE
