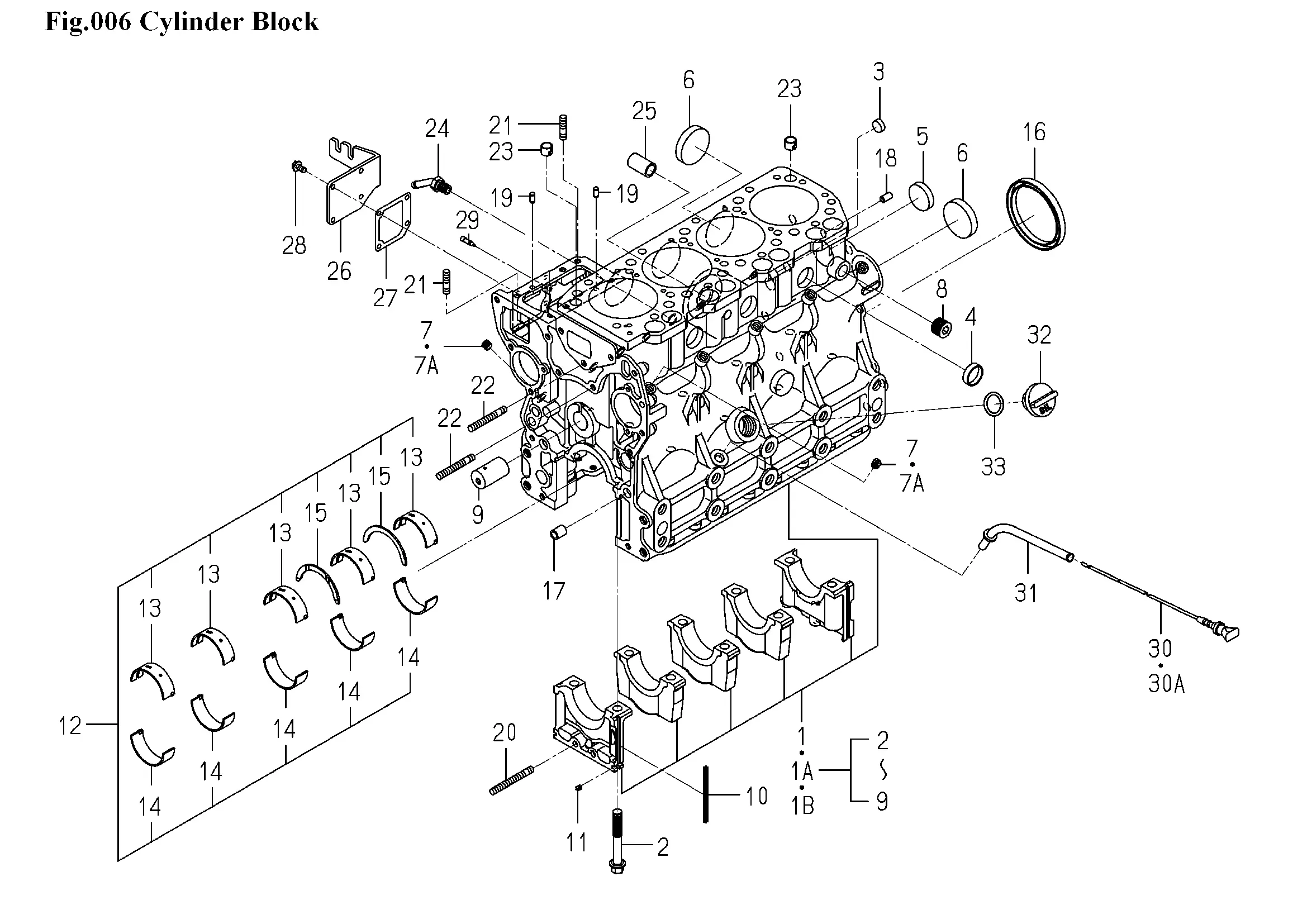

Zylinderblock
Ersatzteile (37 Teile)
1
6211-210-063-40
1A
6211-210-063-50
1B
6211-210-063-60
2
BOLT
3
CUP/SEALING/16
4
CUP/SEALING/28
5
CUP/SEALING/36
6
CUP/SEALING/50
7
Stopfen
7A
6209-605-007-10
8
PLUG/PT1/2
9
PIN/IDLEGEAR
10
SEAL,BEARING CAP
11
SEAL,BEARING CAP/7
12
BEARING/CRANK SET
13
BEARING/CRANK/UPPER
14
BEARING/CRANK/LOWER
15
BEARING/THRUST/CRANK
16
OILSEAL
17
PIN/TUBE
18
PIN/STRAIGHT
19
6209-740-005-00
20
STUD/M8X60/7T
21
STUD
22
STUD
23
DOWEL
24
PIPE/WATERDRAIN
25
CONNECTOR/OILFILTER
26
6211-291-015-20
27
6211-292-001-20
28
FLANGEBOLT/M6X12
29
PIN
30
6211-760-040-20
30A
Peilstab
31
GUIDE/LEVELGAGE COMP
32
CAP/OILFILLER
33
O-RING/1A,P25
