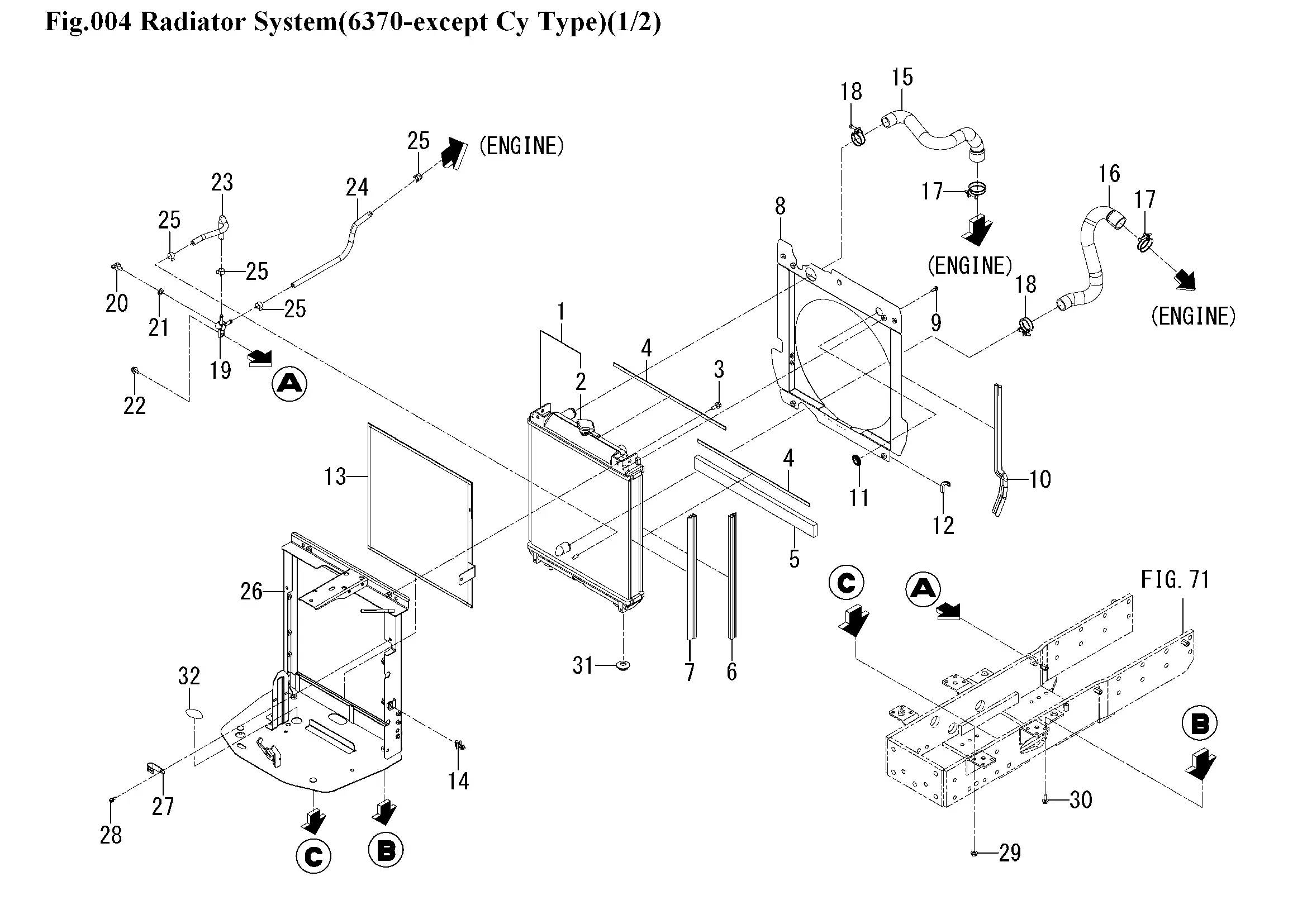

Kühler
Ersatzteile (59 Teile)
1
RADIATOR ASSY
2
CAP
3
1746-803-003-00
4
INSULATOR/10X10X450
5
INSULATOR/40X480
6
INSULATOR/425
7
INSULATOR/425
8
1792-102-250-10
9
1746-804-002-00
10
INSULATOR/455
11
3670-272-001-00
12
INSULATOR/55
13
PROTECTOR/NET COMP
14
LATCH ASSY
15
HOSE/RADIATOR/INLET
16
HOSE/RADIATOR/OUTLET
17
CLAMP/WIRE/36-44
18
J061-230-038-00
19
CONNECTOR
20
1424-101-203-00
21
PACKING
22
BOLT,SP/M8X20
23
HOSE/270
24
HOSE/350
25
CLIP/HOSE/14.7-15.9
26
1792-102-220-50
27
HOLDER/JE/9-9
28
1815-802-001-00
29
1746-816-001-00
30
1746-804-003-00
31
BUSH,LEVER
32
1801-504-002-00
33
1785-102-210-30
34
1746-817-001-00
35
WASHER,PL/M8
36
SPRING/HT020
37
1792-102-240-00
38
PIN/SNAP
39
1801-102-004-00
40
CAP/PARKING
41
RESERVETANK ASSY
42
CAP
43
PACKING
44
1690-102-214-00
45
1690-102-215-00
46
1690-102-216-00
47
HOSE/RUBBER
48
BAND,WIRE/140
49
1792-102-006-00
50
1746-804-003-00
51
1792-102-004-20
52
INSULATOR/700
53
TRIM/160
54
PROTECTOR/185
55
1746-804-001-00
56
NUT/WASHER
57
1792-102-270-10
58
TUBE/07X09X30
59
1815-802-001-00
