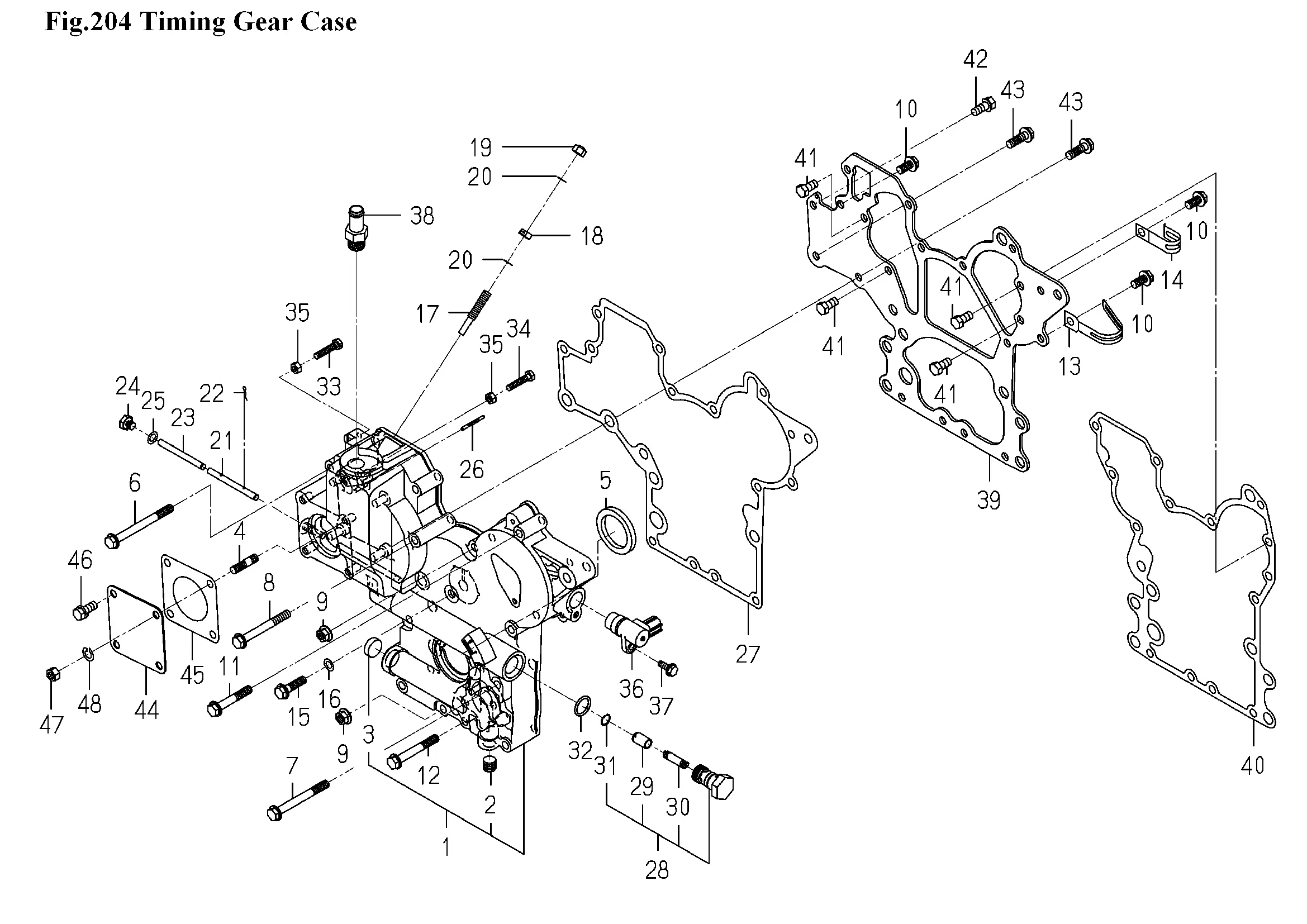

Stirnradgetriebe
Ersatzteile (48 Teile)
1
GEARCASE ASSY
2
6209-605-003-20
3
CUP/SEALING/20
4
STUD
5
SEAL,OIL
6
FLANGEBOLT/M8X85
7
FLANGEBOLT/M8X75
8
FLANGEBOLT/M8X70
9
NUT/M08
10
FLANGEBOLT/M8X16
11
FLANGEBOLT/M8X50
12
FLANGEBOLT/M8X60
13
CLAMP
14
HOLDER/JE/9-9
15
V231-360-803-00
16
WASHER/08X14X01
17
6215-546-003-30
18
6209-409-001-00
19
NUT,CAP/M8
20
PACKING
21
PIN/ARM
22
PIN/SNAP
23
PIN
24
PLUG/SCREW
25
WASHER/08X14X01
26
PIN/GROOVE
27
6211-312-005-10
28
VALVE/RELIEF ASSY
29
PISTON/VALVE/RELIEF
30
SPRING/RELIEF VALVE
31
RING,SNAP/12 C
32
O-RING/1A,P18
33
6209-050-001-00
34
6209-050-002-00
35
V301-260-006-00
36
SENSOR/REVOLUTION/R
37
FLANGEBOLT/M6X16
38
PIPE/WATER/HOUSING
39
6211-311-096-00
40
6211-312-006-10
41
6902-050-816-00
42
V211-560-802-00
43
FLANGEBOLT/M8X25
44
COVER/HYDRAULIC
45
6211-322-002-00
46
V211-560-802-00
47
NUT/M8
48
WASHER,SP/M8
