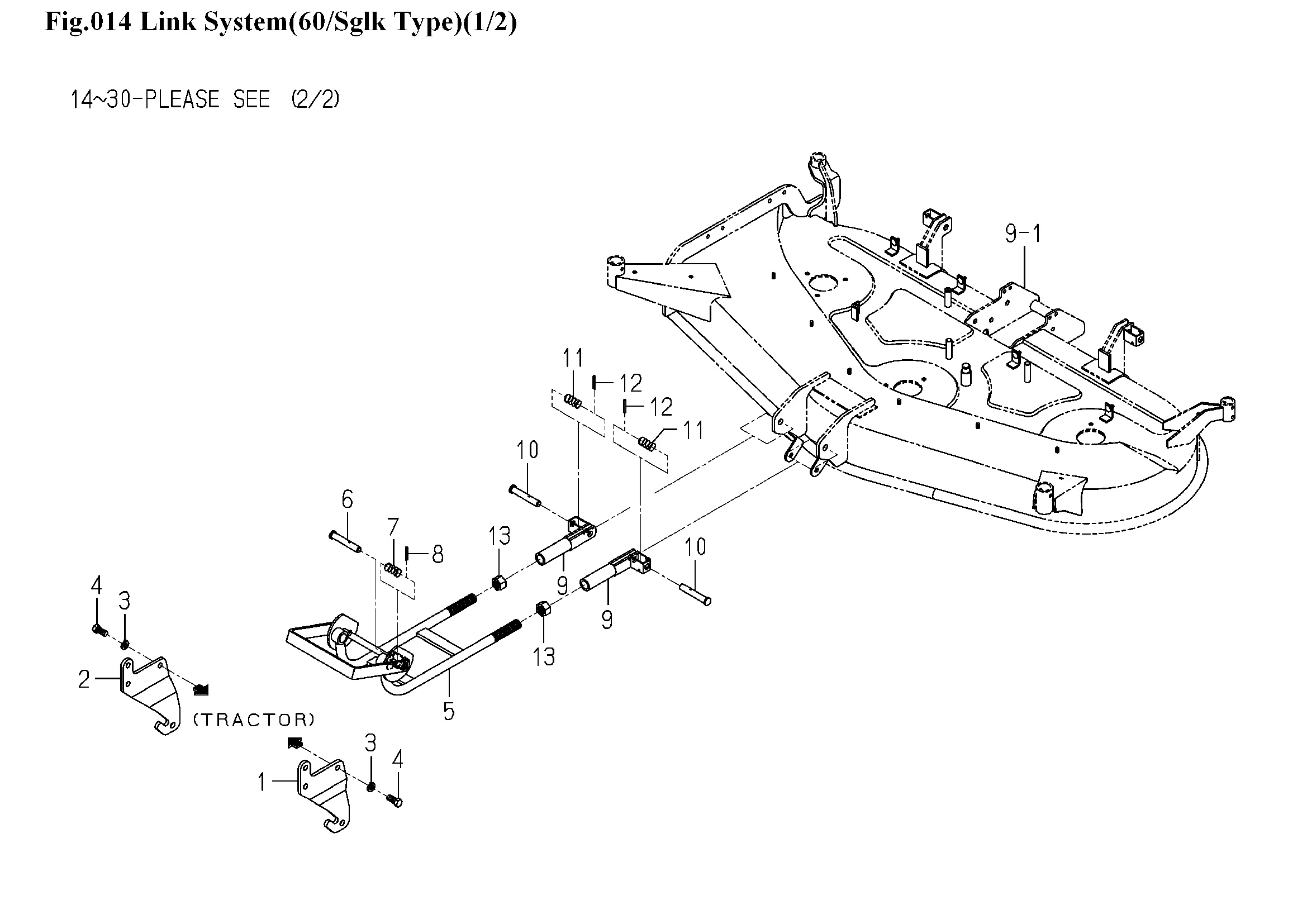

Aushebung (AGL)
Ersatzteile (36 Teile)
1
8672-608-001-00
2
8672-608-002-00
3
WASHER,SP/M14
4
BOLT/M14X30/7T
5
Zugrahmen Japan SSM 60 für TG 6400 AHL
6
8595-608-082-10
7
Feder
8
Hohlspannstift 5x40
9
8655-608-360-00
10
8595-608-082-10
11
Feder
12
Hohlspannstift 5x40
13
NUT/M24X1.5
14
8672-608-220-00
15
8655-608-330-00
16
BOLT/M12X30/7T
17
WASHER,SP/M12
18
V304-460-012-00
19
SCREW/M14X115
20
KNOB
21
NUT/M14
22
ARM/MID/LH COMP
23
ARM/MID/RH COMP
24
PIN/16X43
25
CLIP,PIN
26
8655-608-910-00
27
NIPPLE,GREASE
28
WASHER,SP/M14
29
BOLT/M14X30/7T
30
FORK/A COMP
31
FORK/B COMP
32
NUT/M16
33
PIN/12X42
34
WASHER,SUPPORT
35
V411-260-012-00
36
CLIP,PIN
