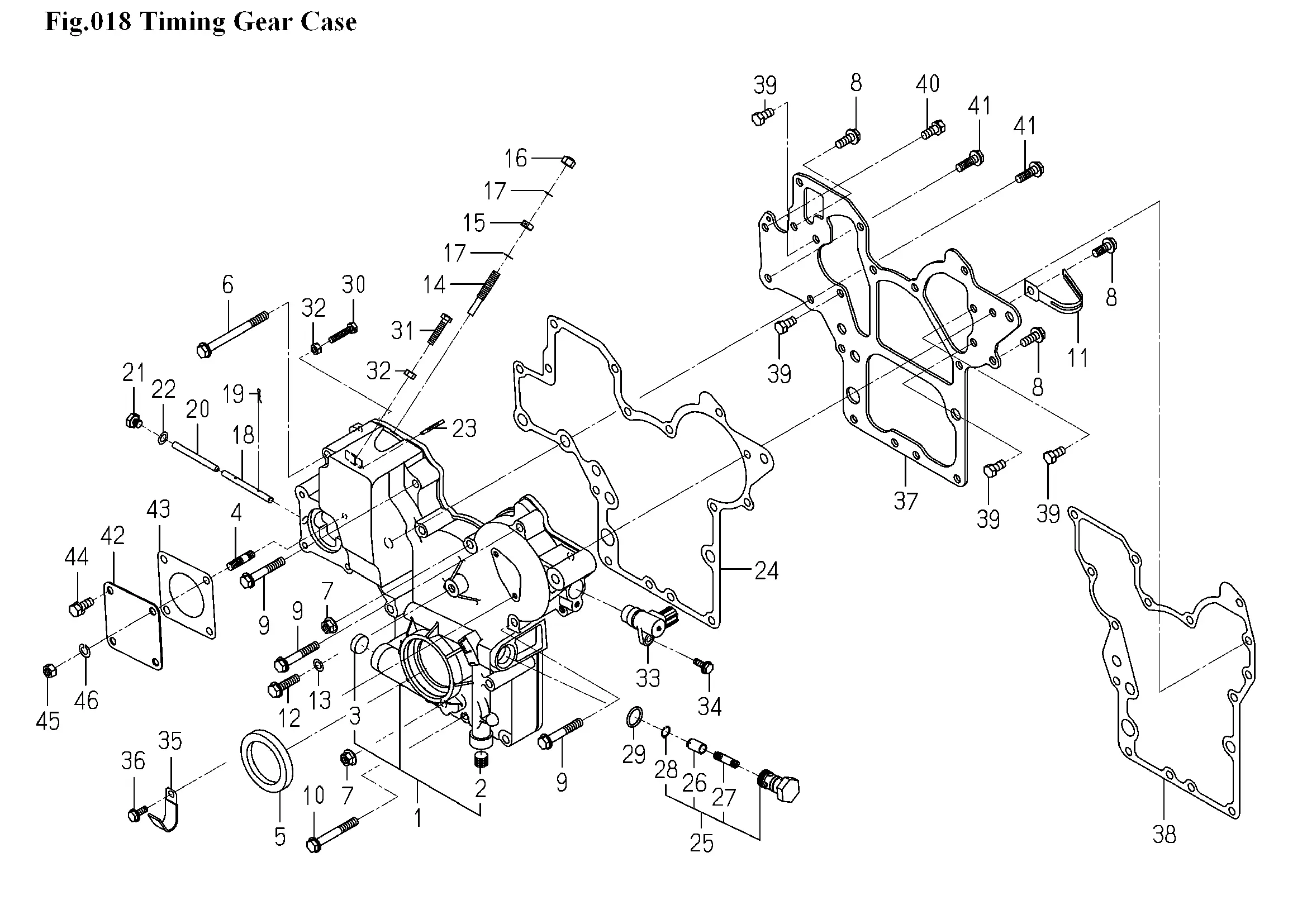

Stirnradgetriebe
Ersatzteile (46 Teile)
1
GEARCASE ASSY
2
6209-605-003-20
3
CUP/SEALING/20
4
STUD
5
OILSEAL
6
V231-360-809-00
7
NUT/M08
8
V231-360-802-00
9
FLANGEBOLT/M8X50
10
FLANGEBOLT/M8X60
11
CLAMP
12
V231-360-803-00
13
WASHER/08X14X01
14
6215-546-003-30
15
6209-409-001-00
16
NUT,CAP/M8
17
PACKING
18
PIN/ARM
19
PIN/SNAP
20
PIN
21
PLUG/SCREW
22
WASHER/08X14X01
23
PIN/GROOVE
24
GASKET/GEARCASE
25
VALVE/RELIEF ASSY
26
PISTON/VALVE/RELIEF
27
SPRING/RELIEF VALVE
28
RING,SNAP/12 C
29
O-RING/1A,P18
30
6209-050-001-00
31
6209-050-002-00
32
V301-260-006-00
33
SENSOR/REVOLUTION/R
34
FLANGEBOLT/M6X16
35
3748-172-007-00
36
FLANGEBOLT/M6X10
37
PLATE/FRONT
38
GASKET/PLATE
39
6902-050-816-00
40
V211-560-802-00
41
FLANGEBOLT/M8X25
42
COVER/HYDRAULIC
43
6211-322-002-00
44
V211-560-802-00
45
NUT/M8
46
WASHER,SP/M8
