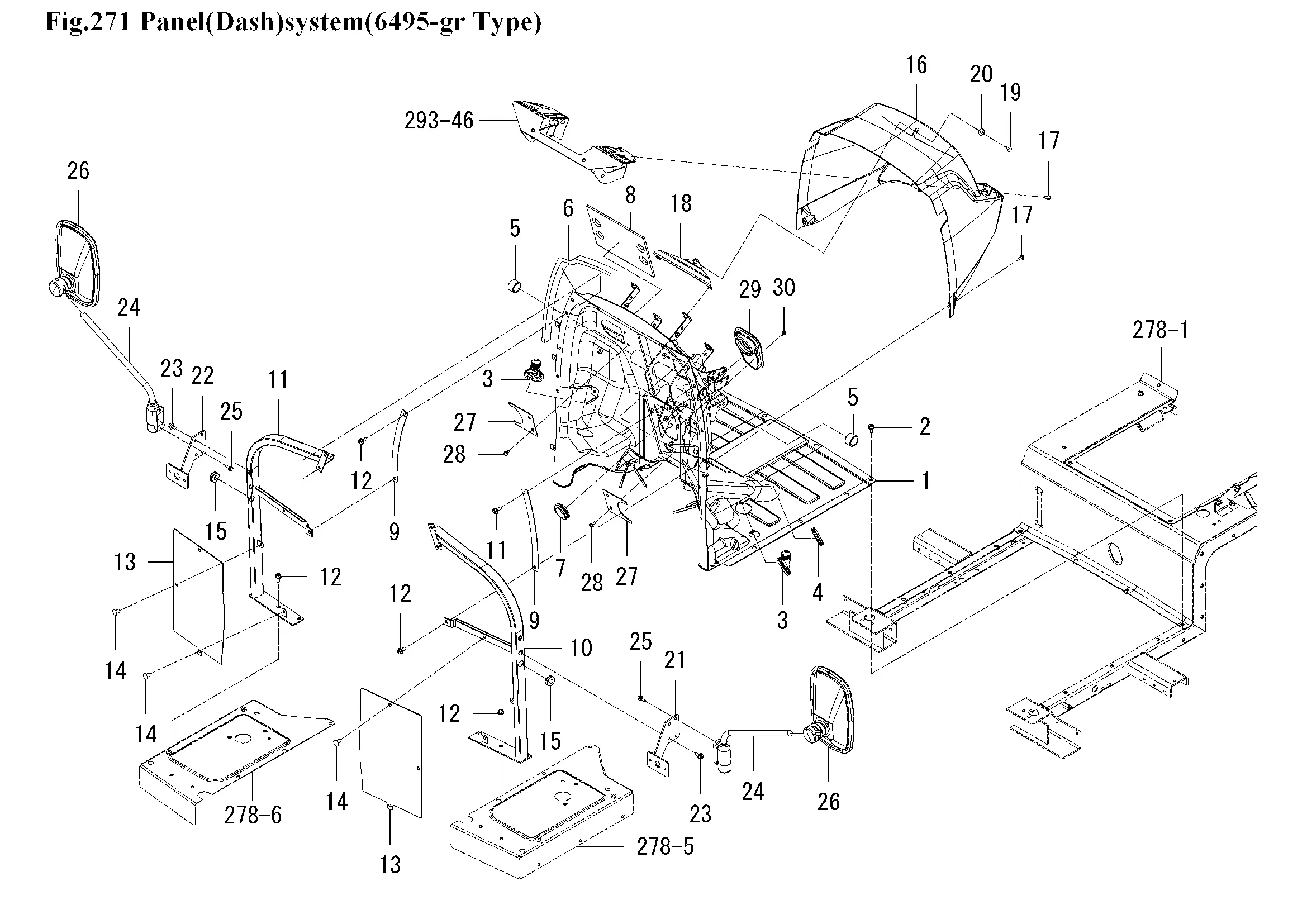

Spiegel, Anbauteile Kabine
Ersatzteile (30 Teile)
1
1816-630-250-10
2
FLANGEBOLT/M8X16
3
BOOT
4
PLUG/45
5
BEARING
6
1792-630-002-20
7
1747-630-001-00
8
1817-630-005-00
9
1792-630-004-00
10
1815-630-210-10
11
1815-630-220-10
12
FLANGEBOLT/M8X16
13
PLATE
14
CLIP(B)
15
GROMMET/12X17X04
16
1792-630-001-20
17
SCREW,SP/M6X16
18
1800-630-230-00
19
SCREW/TRUSS/M06X16
20
3819-261-005-00
21
1817-630-210-00
22
1817-630-220-00
23
FLANGEBOLT/M8X16
24
ARM/MIRROR ASSY
25
FLANGEBOLT/M6X16
26
MIRROR ASSY
27
1801-630-012-00
28
FLANGEBOLT/M6X12
29
BOOT
30
SCREW,SP/M6X12
