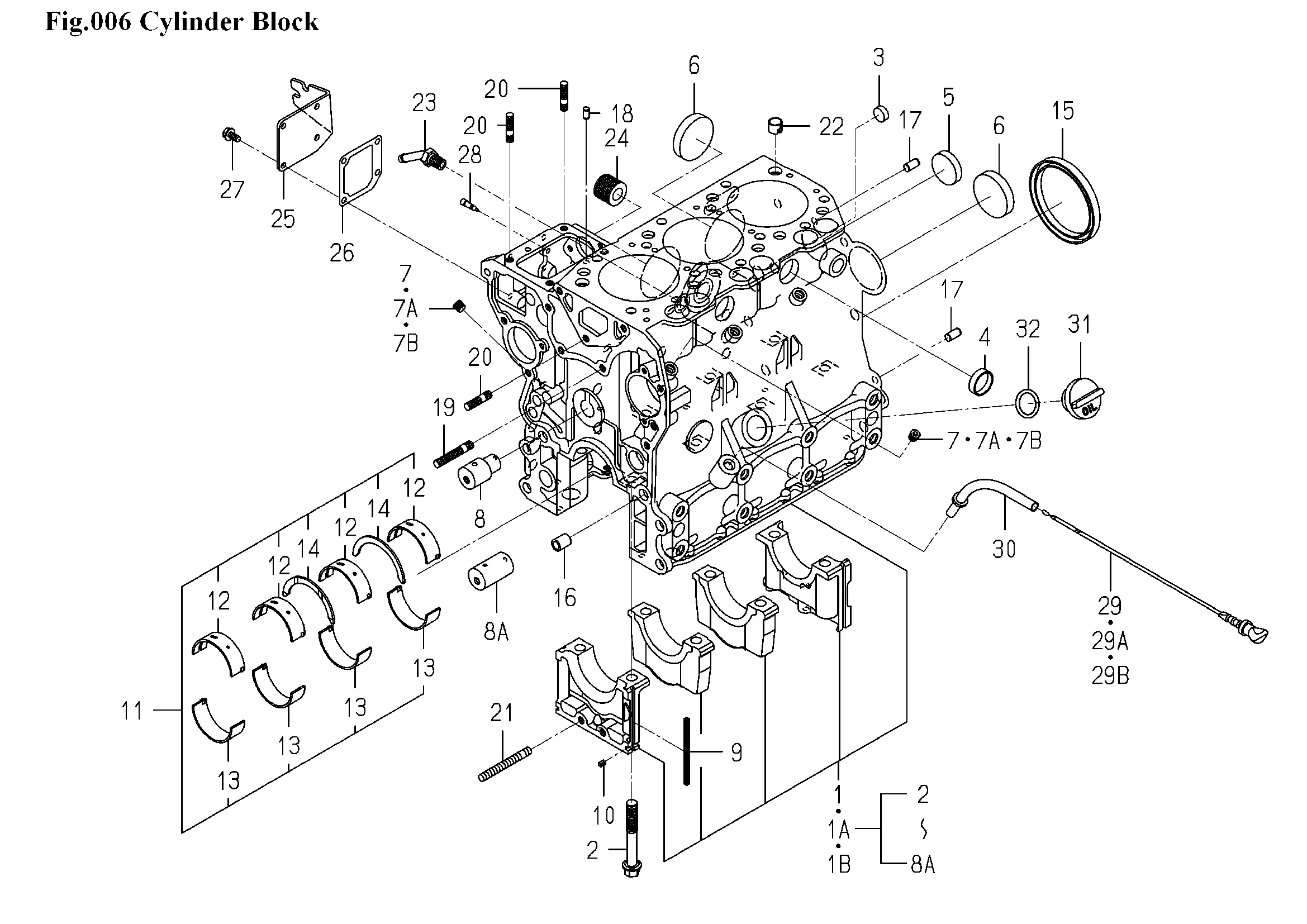

Zylinderblock
Ersatzteile (39 Teile)
1
6211-210-057-50
1A
6211-210-057-60
1B
6211-210-057-70
2
BOLT
3
CUP/SEALING/16
4
CUP/SEALING/28
5
CUP/SEALING/36
6
CUP/SEALING/50
7
Stopfen
7A
Stopfen
7B
6209-605-007-10
8
Bolzen
8A
PIN/IDLEGEAR
9
SEAL,BEARING CAP
10
SEAL,BEARING CAP/7
11
BEARING/CRANK SET
12
BEARING/CRANK/UPPER
13
BEARING/CRANK/LOWER
14
BEARING/THRUST/CRANK
15
OILSEAL
16
PIN/TUBE
17
PIN/STRAIGHT
18
6209-740-005-00
19
STUD/M8X40
20
STUD
21
STUD/M8X60/7T
22
DOWEL
23
PIPE/WATERDRAIN
24
CONNECTOR,OIL FILTER
25
6211-291-013-10
26
6211-292-001-20
27
FLANGEBOLT/M6X12
28
PIN
29
Peilstab
29A
Peilstab
29B
6211-760-032-20
30
GUIDE/LEVELGAGE COMP
31
CAP/OILFILLER
32
O-RING/1A,P25
