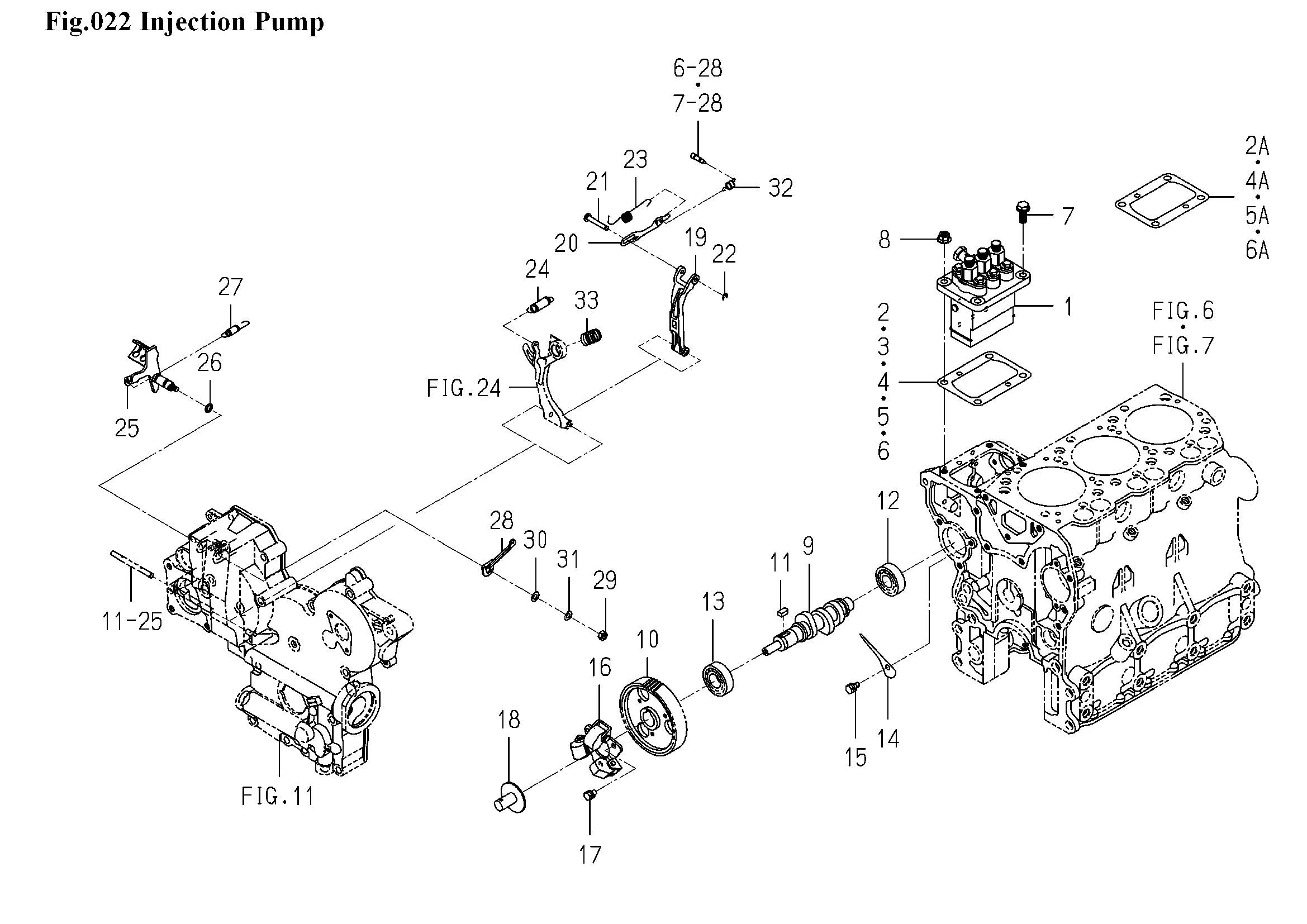

Einspritzpumpe
Ersatzteile (37 Teile)
1
6215-600-078-10
2
Distanzscheibe 0,3
2A
SHIM/INJECTIONPUMP
3
Distanzscheibe 0,1
4
Distanzscheibe 0,2
4A
SHIM/INJECTIONPUMP
5
Distanzscheibe 0,4
5A
SHIM/INJECTIONPUMP
6
Distanzscheibe 0,5
6A
SHIM/INJECTIONPUMP
7
V231-360-802-00
8
NUT/M08
9
6215-621-018-10
10
GEAR/INJECTIONPUMP
11
KEY/07X05X09
12
BEARING,RB/6203
13
BEARING,RB/6004
14
PLATE/THRUST/INJPUMP
15
Schraube M6x12
16
FLYWEIGHT ASSY
17
6209-030-043-00
18
THRUSTPIECE
19
6215-541-001-10
20
RINK/CONTROL
21
PIN,CONTROL
22
RING,SNAP/4 E
23
SPRING/SETTING
24
SPRING/GOVERNOR
25
6215-541-040-00
26
O-RING/1A,P8
27
SPRING,RETURN
28
6215-549-007-10
29
6909-110-406-00
30
V411-260-006-00
31
V401-160-006-00
32
SPRING/STARTING
33
SPRING/IDLE
