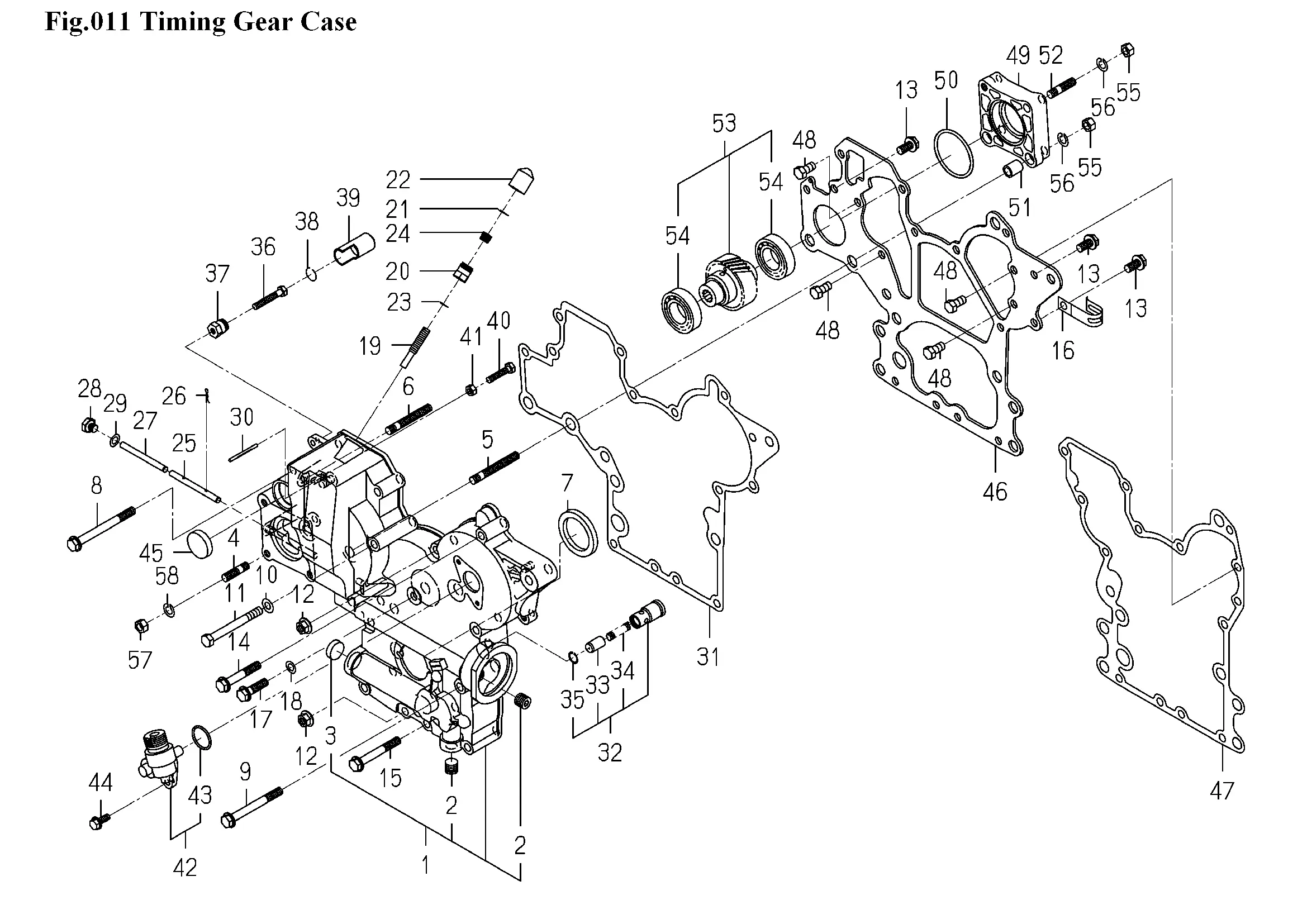

Stirnradgehäuse
Ersatzteile (58 Teile)
1
GEARCASE ASSY
2
6209-605-003-00
3
CUP/SEALING/20
4
STUD
5
STUD
6
STUD
7
SEAL,OIL
8
FLANGEBOLT/M8X85
9
FLANGEBOLT/M8X75
10
6209-500-006-00
11
V201-360-807-50
12
NUT/M08
13
FLANGEBOLT/M8X16
14
FLANGEBOLT/M8X50
15
FLANGEBOLT/M8X60
16
HOLDER/JE/9-9
17
V231-360-803-00
18
WASHER/08X14X01
19
6215-546-006-00
20
6215-549-057-00
21
RING/TAMPER REGISTAN
22
Hülse
23
PACKING
24
Stopfen
25
PIN/ARM
26
PIN/SNAP
27
6215-542-005-10
28
PLUG/SCREW
29
WASHER/08X14X01
30
PIN,GROOVE
31
6211-312-005-10
32
Ventil
33
PISTON/VALVE/RELIEF
34
SPRING/RELIEF VALVE
35
RING,SNAP/12 C
36
BOLT/HI-IDLESTOPPER
37
NUT/HI-IDLESTOPPER
38
RING/TAMPER REGISTAN
39
Kappe
40
6209-050-002-00
41
6909-110-406-00
42
DRIVE/TACHOMETE ASSY
43
O-RING/1A,S24
44
FLANGEBOLT/M6X16
45
CAP,BLANK/30
46
6211-311-013-20
47
6211-312-006-10
48
6902-050-816-00
49
SPACER
50
O-RING/1A,S50
51
PIN/TUBE
52
STUD
53
6212-530-008-10
54
V600-110-600-50
55
6909-110-408-00
56
WASHER,SP/M8
57
6909-110-408-00
58
WASHER,SP/M8
