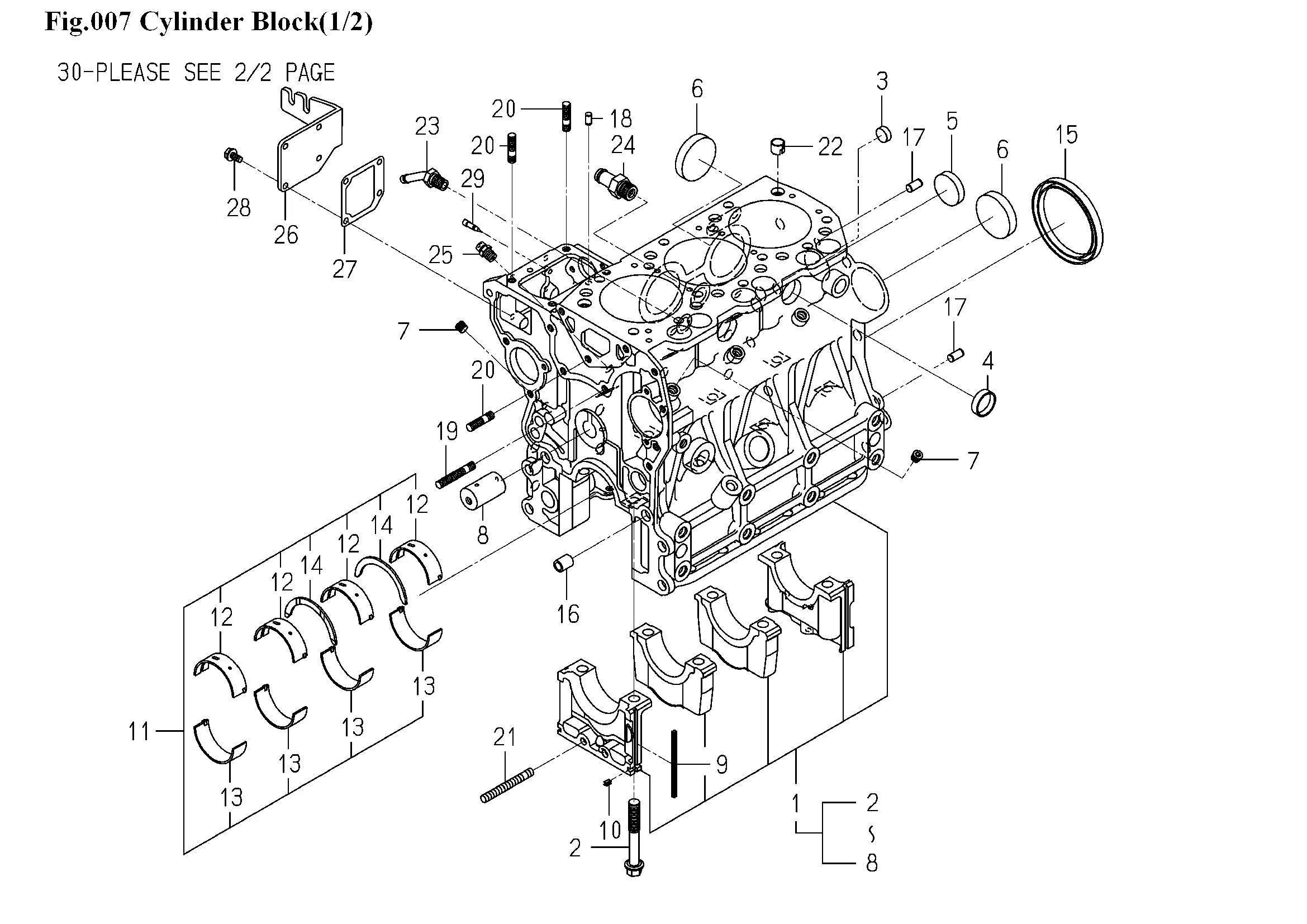

Motorblock, KW -Lagerung
Ersatzteile (40 Teile)
1
6211-210-084-40
2
BOLT
3
CUP/SEALING/16
4
CUP/SEALING/28
5
CUP/SEALING/36
6
CUP/SEALING/50
7
6209-605-007-10
8
PIN/IDLEGEAR
9
SEAL,BEARING CAP
10
SEAL,BEARING CAP/7
11
BEARING/CRANK SET
12
BEARING/CRANK/UPPER
13
BEARING/CRANK/LOWER
14
BEARING/THRUST/CRANK
15
OILSEAL
16
PIN/TUBE
17
PIN/STRAIGHT
18
6209-740-005-00
19
STUD/M8X40
20
STUD
21
STUD/M8X60/7T
22
DOWEL
23
PLUG/SCREW/SEAL
24
PIPE/WATER/HOUSING
25
NIPPLE
26
6211-291-038-00
27
6211-292-001-20
28
FLANGEBOLT/M6X12
29
PIN
30
LEVELGAUGE
31
GUIDE/LEVELGAGE COMP
32
PIPE/OIL
33
CAP/OILFILLER
34
O-RING/1A,P25
35
6211-749-020-00
36
GASKET/OILFILLER
37
PIPE/OILJET
38
EYEBOLT/OILJET ASSY
39
PIN/SPRING
40
6209-605-007-10
