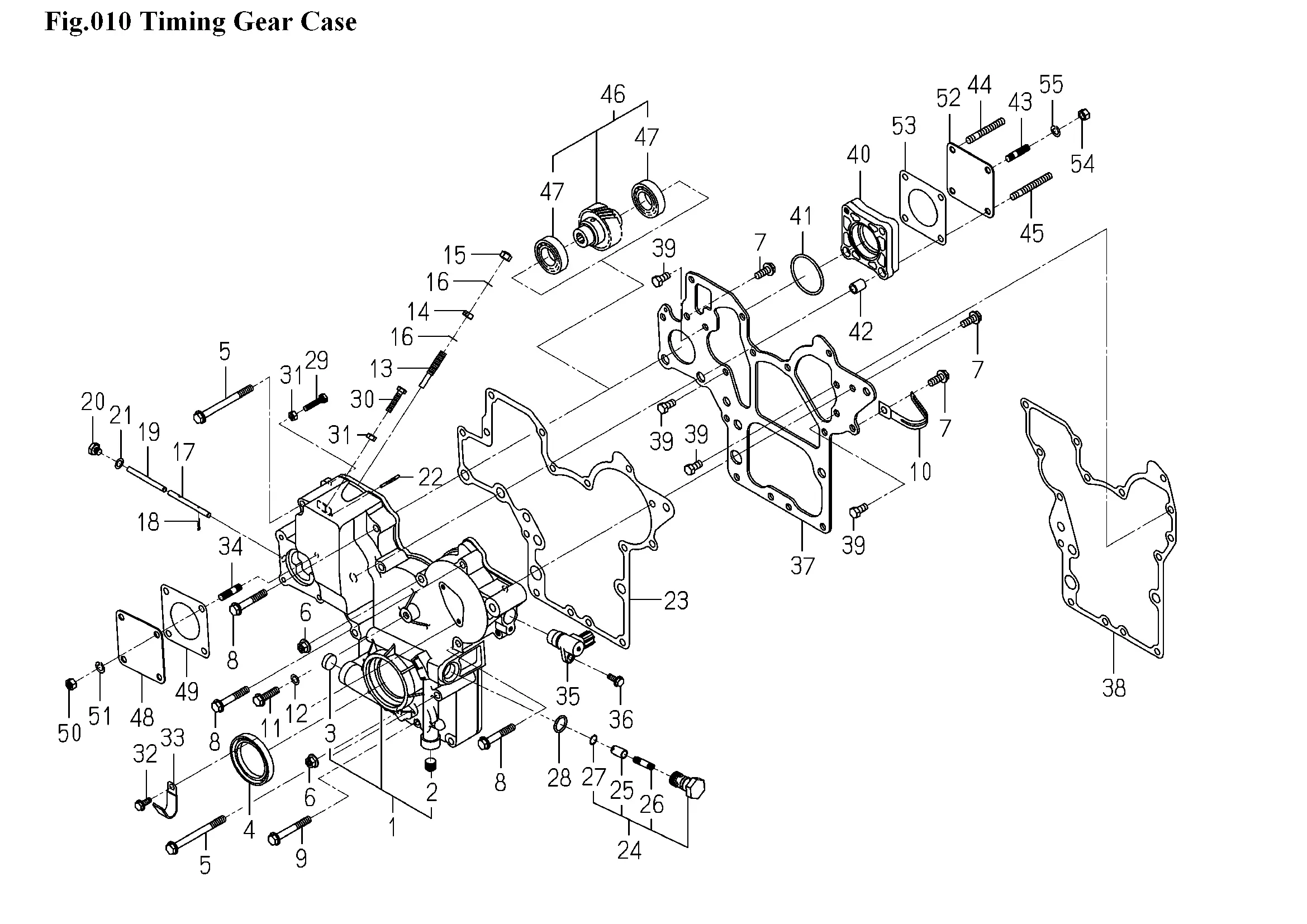

Stirnradgetriebe
Ersatzteile (55 Teile)
1
GEARCASE ASSY
2
6209-605-003-20
3
CUP/SEALING/20
4
OILSEAL
5
V231-360-809-00
6
NUT/M08
7
V231-360-802-00
8
FLANGEBOLT/M8X50
9
FLANGEBOLT/M8X60
10
CLAMP
11
V231-360-803-00
12
WASHER/08X14X01
13
6215-546-003-30
14
6209-409-001-00
15
NUT,CAP/M8
16
PACKING
17
PIN/ARM
18
PIN/SNAP
19
PIN
20
PLUG/SCREW
21
WASHER/08X14X01
22
PIN/GROOVE
23
GASKET/GEARCASE
24
VALVE/RELIEF ASSY
25
PISTON/VALVE/RELIEF
26
SPRING/RELIEF VALVE
27
RING,SNAP/12 C
28
O-RING/1A,P18
29
6209-050-001-00
30
6209-050-002-00
31
V301-260-006-00
32
FLANGEBOLT/M6X10
33
3748-172-007-00
34
STUD
35
SENSOR/REVOLUTION/R
36
FLANGEBOLT/M6X16
37
6211-311-029-30
38
GASKET/PLATE
39
6902-050-816-00
40
SPACER
41
O-RING/1A,S50
42
PIN/TUBE
43
STUD
44
STUD
45
STUD
46
6212-530-008-20
47
BEARING/BALL
48
COVER/HYDRAULIC
49
GASKET/COVER
50
NUT/M8
51
WASHER,SP/M8
52
COVER/HYDRAULIC
53
GASKET/COVER
54
NUT/M8
55
WASHER,SP/M8
