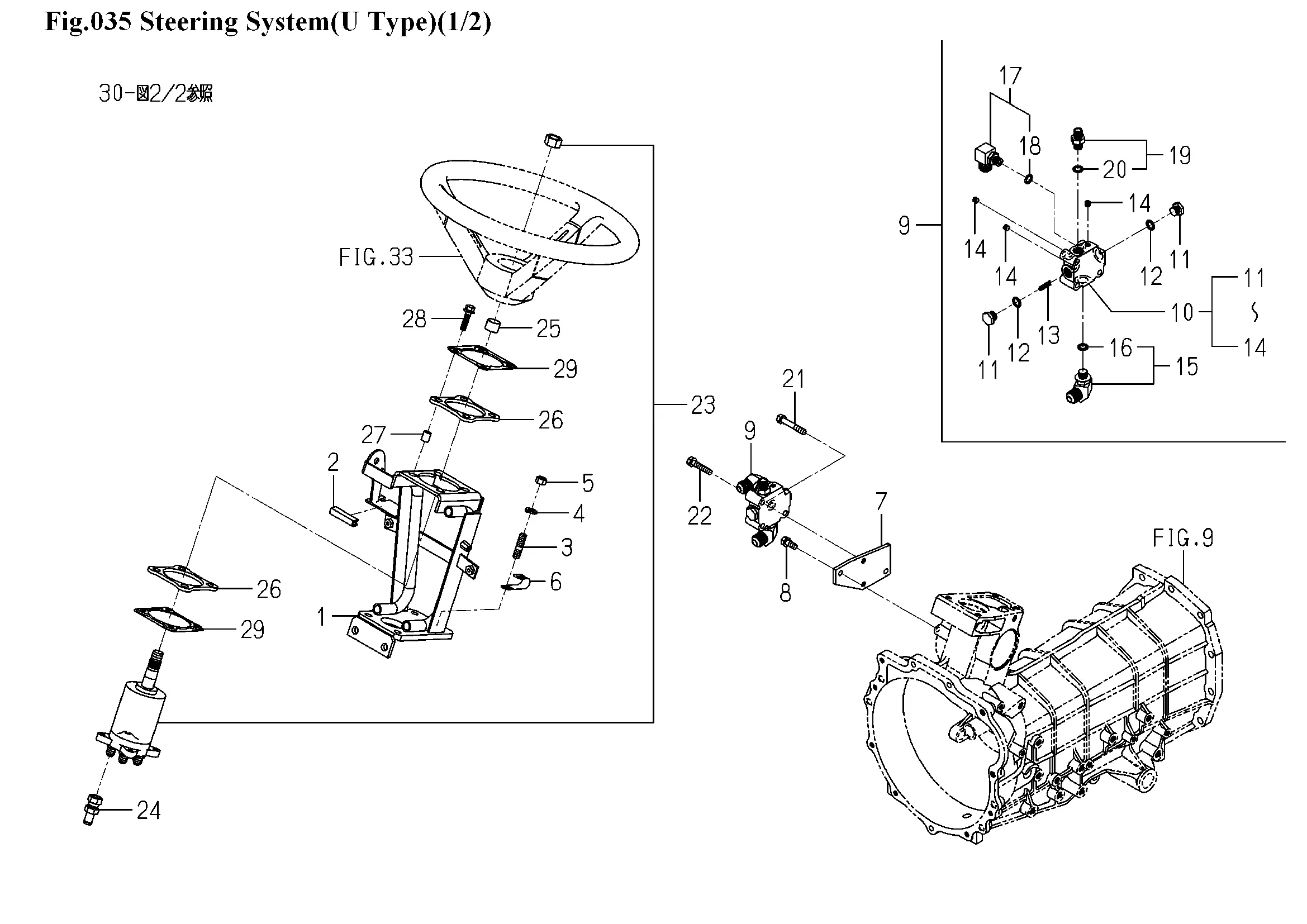

Lenkung
Ersatzteile (51 Teile)
1
1776-407-510-10
2
PAD/50
3
STUD/M10X25/7T
4
WASHER,SP/M10
5
V304-460-010-00
6
CLAMP,HARNESS
7
1776-407-001-00
8
BOLT,S/M8X20
9
VALVE/021/U SET
10
K233-021-000-00
11
PLUG
12
O-RING/1B,P12
13
K211-035-005-00
14
PLUG/SCREW/SEAL
15
1776-407-220-00
16
O-RING/1B,P11
17
ADAPTER/L/G1/4 ASSY
18
O-RING/1B,P18
19
ADAPTER/G1/4
20
O-RING/1B,P11
21
V211-260-804-00
22
V211-260-805-00
23
CONTROLLER/STEERING
24
ADAPTER/G1/4
25
INSULATOR/15
26
PAD/PS
27
COLLAR/08X12X15
28
V211-660-803-50
29
PLATE/CONTROLLER
30
CYLINDER ASSY
31
SEAL/ROD
32
SEAL/DUST
33
ROD/PISTON COMP
34
SEAL/ROD
35
SEAL/DUST
36
O-RING/1B,P29
37
O-RING/1A,S38
38
ADAPTER/L/G1/4 ASSY
39
O-RING/1B,P11
40
ADAPTER
41
WASHER,SP/M12
42
NUT,CASTLE/M12 P1.25
43
V500-163-002-00
44
1776-407-230-10
45
1725-408-200-10
46
BAND,WIRE/140
47
HOLDER/JE/9-9
48
BOLT,SP/M8X16
49
1789-408-011-10
50
J061-112-022-00
51
BAND,WIRE/140
