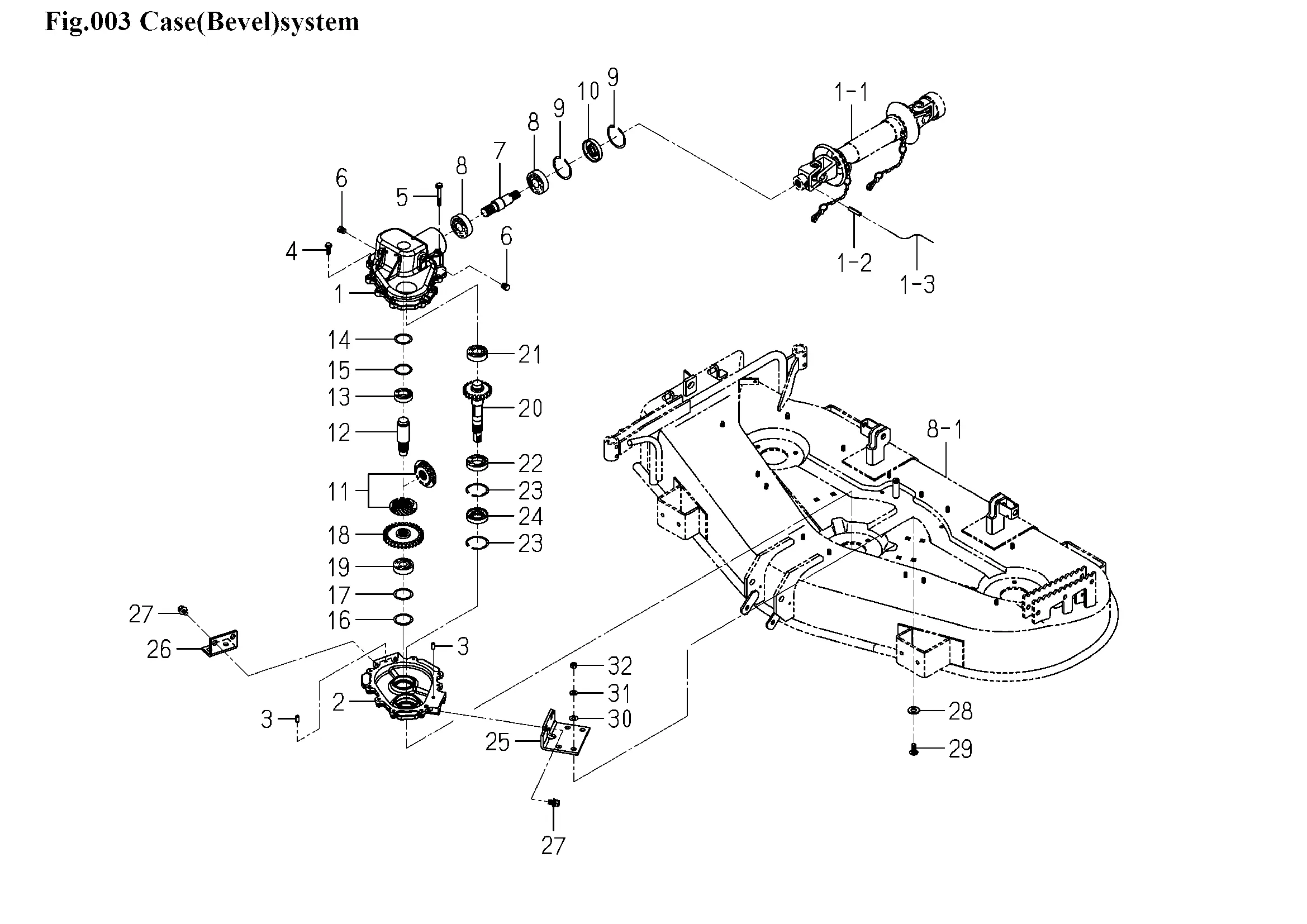

Winkelgetriebe
Ersatzteile (32 Teile)
1
8672-201-091-00
2
8672-201-092-00
3
PIN,ST,B/8X18
4
FLANGEBOLT/M8X25
5
FLANGEBOLT/M8X60
6
PLUG,DRAIN (1/4)
7
SHAFT/INPUT
8
1650-219-009-00
9
RING,SNAP/R62
10
SEAL/OIL
11
GEAR/BEVEL/21-2 SET
12
SHAFT/COUNTER
13
V600-110-600-50
14
SHIM,A
15
SHIM/0.2
16
SHIM/0.1
17
SHIM/0.2
18
8657-201-036-10
19
8657-201-084-00
20
8657-201-037-10
21
BEARING/BALL
22
8657-201-085-00
23
V707-140-055-00
24
SEAL/OIL
25
BRACKET/CASE/LH
26
BRACKET/CASE/RH
27
V211-661-002-00
28
WASHER,PL/M14
29
BLOT/M10X25
30
V411-260-010-00
31
WASHER,SP/M10
32
NUT/M10
