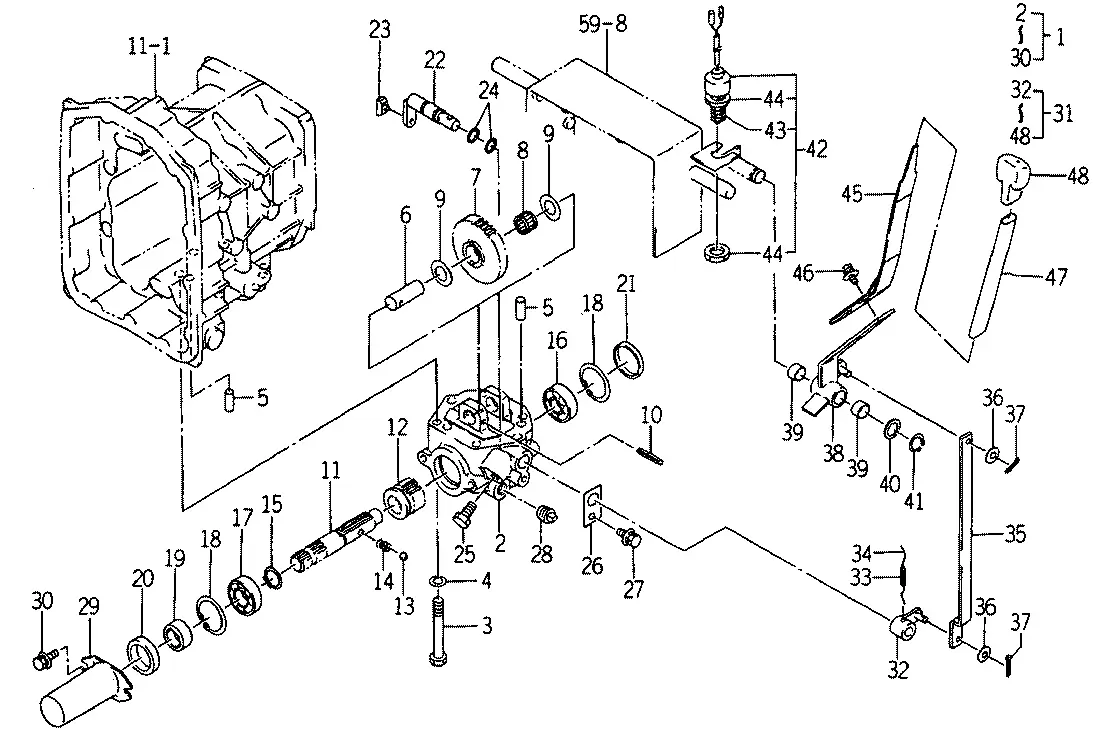

Zwischenachszapfwelle (Option)
Ersatzteile (48 Teile)
1
1683-255-510-00
2
Gehäuse
3
V201-361-009-00
4
WASHER,SP/M10
5
PIN,ST,B/10X24
6
PIN/20X51
7
Zahnrad
8
Nadellager
9
Buchse
10
V580-140-604-00
11
Welle
12
1682-255-205-10
13
BALL,STEEL
14
SPRING,SHIFTER
15
RING,SNAP/25 C
16
BEARING,RB/6304
17
BEARING,RB/6205
18
RING,SNAP/52 C
19
1427-212-003-20
20
SEAL,OIL/TC35528
21
3625-701-003-00
22
Welle
23
COLLAR,SHIFTER
24
O-RING/1A,P14
25
V203-261-202-00
26
PLATE/I/30X50
27
BOLT,SP/M8X16
28
PLUG/SCREW/SEAL
29
1444-314-009-10
30
V210-360-602-00
31
1683-255-600-00
32
Arm
33
PIN,SPRING/6X25 W
34
DOCWARE
35
1683-265-051-00
36
WASHER,PL/M8
37
V500-163-002-00
38
1683-265-500-10
39
BUSH
40
WASHER/18X26X02
41
RING,SNAP/18 C
42
Schalter, Zwischenachszapfwelle
43
BOOT
44
1491-623-222-00
45
Hebel
46
BOLT,SP/M8X16
47
Schutz
48
GRIP/SUB
