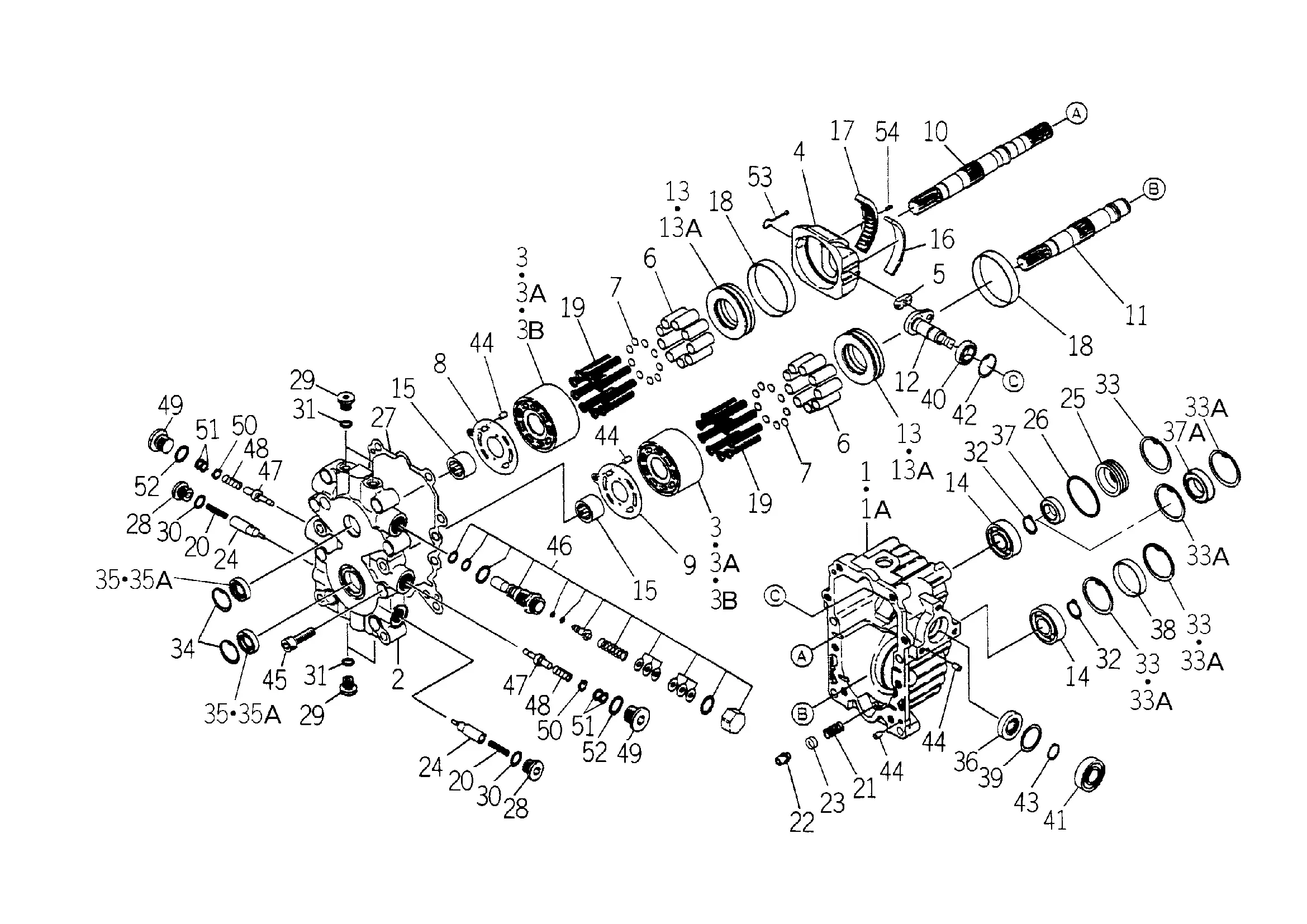

Einzelteile Hydrostat K510-008-000-10
Ersatzteile (61 Teile)
1
K510-008-001-00
1A
K510-008-001-10
2
K510-008-004-00
3
Zylinderblock
3A
K510-002-005-00
3B
K510-005-005-00
4
K510-003-006-00
5
K510-001-007-00
6
Kolben
7
K510-001-009-00
8
PLATE/VALVE/PUMP
9
PLATE/VALVE/MOTOR
10
Welle, Pumpe
11
SHAFT/MOTOR
12
K510-008-014-00
13
K510-003-015-00
13A
BEARING/THRUST
14
V600-110-620-40
15
NEEDLE
16
BUSH/95X100X22
17
BEARING/NEEDLE
18
BUSH/68X71X14
19
SPRING/HC053
20
SPRING/HC030
21
SPRING/HC021
22
K510-003-022-00
23
K510-003-037-00
24
K510-003-023-00
25
Buchse 23x47x12
26
O-RING/1A,P41
27
GASKET
28
PLUG(G3/8)
29
PLUG(PF1/4)
30
O-RING/1B,P14
31
O-RING/1B,P11
32
RING,SNAP/20 C
33
RING,SNAP/47 C
33A
RING,SNAP/47 C
34
RING,SNAP/32 C
35
Dichtring
35A
OIL SEAL
36
SEAL/OIL
37
SEAL/OIL
37A
SEAL,OIL/TC20477
38
SEAL/47
39
WASHER/25X30X1
40
Lager
41
Kugellager 6003 2 RS
42
RING,SNAP/30 C
43
RING,SNAP/17 C
44
K510-001-036-00
45
V220-541-003-50
46
VALVE/RELIEF SET
47
K510-003-200-00
48
K510-003-204-00
49
K510-003-205-00
50
K510-003-206-00
51
K510-003-207-00
52
O-RING/1B,P16
53
K510-003-500-00
54
V523-100-301-00
