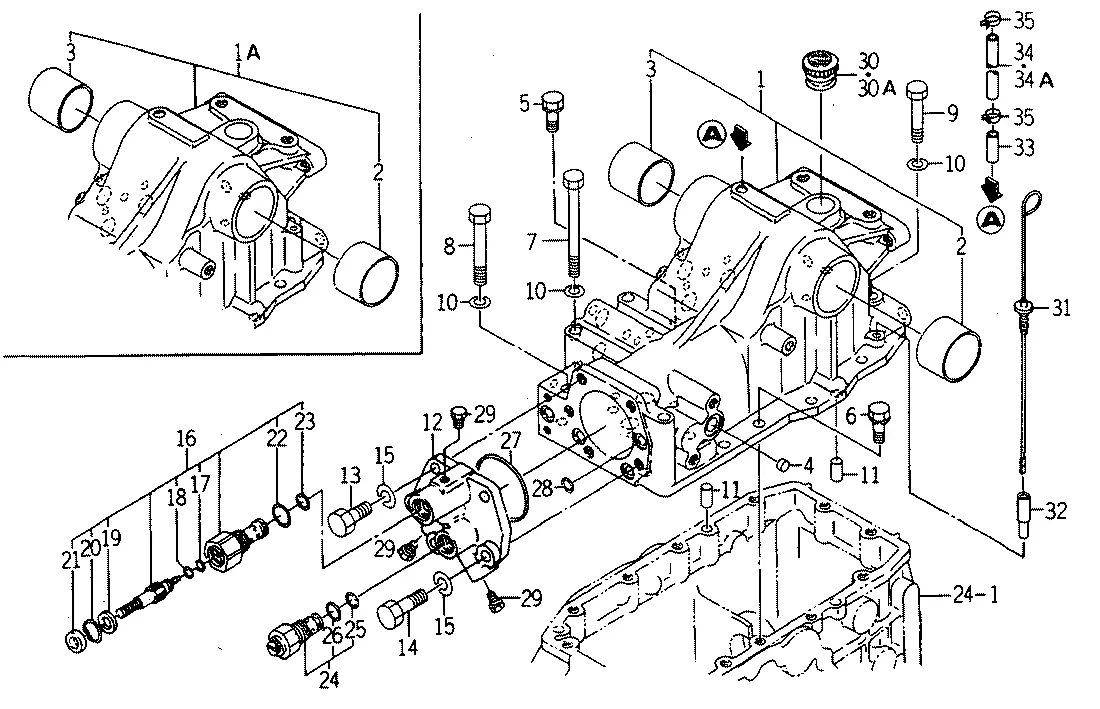

Gehäuse,Ventil, Heckhydraulik
Ersatzteile (38 Teile)
1
1678-501-200-10
1A
1678-501-200-20
2
BUSH/50X55X37
3
BUSH/45X50X42
4
1614-501-016-00
5
BOLT,SEMS
6
BOLT(S) M10X30
7
Schraube M10x110 DIN931
8
V201-261-008-00
9
BOLT/M10X55
10
WASHER,SP/M10
11
PIN,ST,B/10X24
12
1622-501-001-00
13
BOLT/M12X30/7T
14
BOLT/M12X40/7T
15
WASHER,SP/M12
16
Ventil
17
O-RING/1B,P9
18
RING/BACK UP
19
Manschette 11x21x3
20
Sicherungsring
21
SEAL,DUST
22
O-RING/1B,P20
23
O-RING/1B,P14
24
VALVE
25
O-RING/1B,P12
26
O-RING/1B,P18
27
O-RING/1B,G70
28
O-RING/1B,P14
29
PLUG/SCREW/SEAL
30
CAP/OIL/30
30A
Öleinfüllschraube, Getriebe
31
Peilstab TF330
32
1675-501-004-00
33
PIPE,BREATHER
34
3652-311-005-10
34A
3653-311-055-00
35
1650-111-032-00
