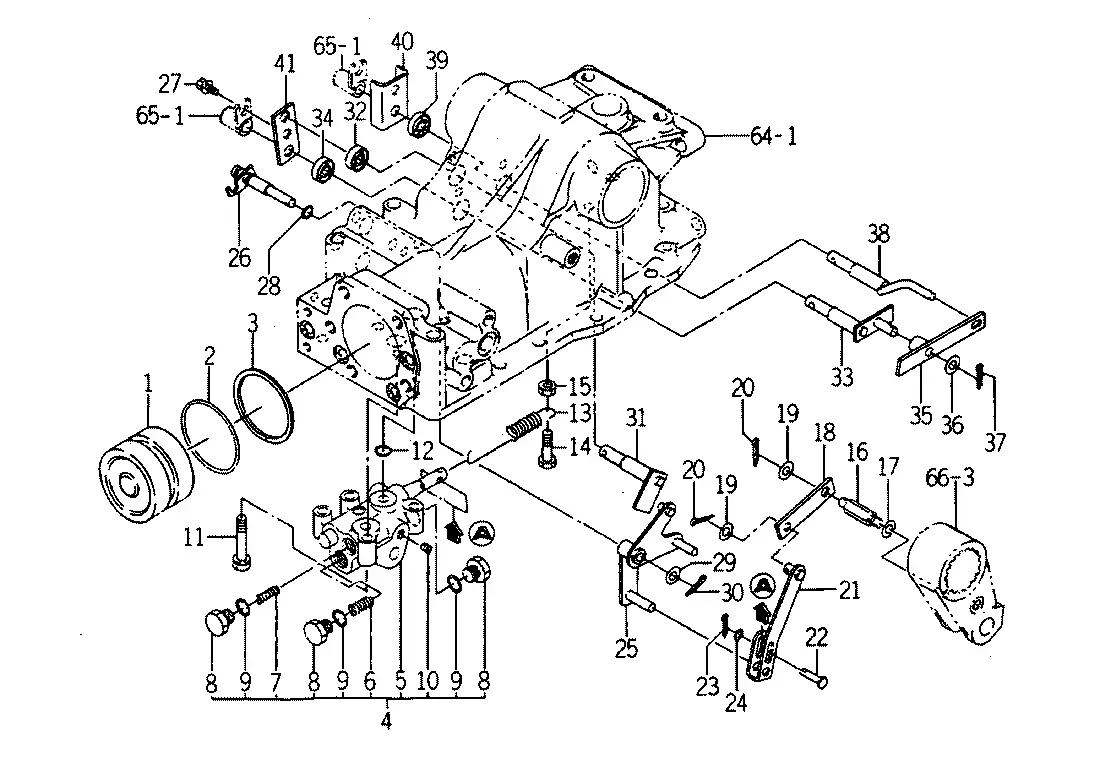

Zylinder, Heckhydraulik
Ersatzteile (41 Teile)
1
1444-503-001-20
2
O-RING/1B,P65
3
RING,BACK UP
4
CONTROL VALVE ASSY
5
K211-026-100-00
6
SPRING
7
SPRING
8
PLUG
9
O-RING/1B,P12
10
PLUG/SCREW/SEAL
11
V211-260-804-00
12
O-RING/1B,P14
13
SPRING/HE123
14
V201-260-802-50
15
NUT/M8
16
1617-503-002-00
17
WASHER,SP/M8
18
1617-503-003-00
19
WASHER,PL/M8
20
PIN,SPLIT/2X20
21
LINK/SPOOL COMP
22
1614-503-005-00
23
PIN,SPLIT/2X20
24
V411-260-005-00
25
1614-503-270-10
26
PIN/SUPPORT COMP
27
BOLT,SP/M8X16
28
O-RING/1A,P7
29
WASHER,PL/M8
30
PIN,SPLIT/2X20
31
ARM/POSITION COMP
32
SEAL,OIL/VC12224
33
Welle
34
SEAL,OIL/VC12224
35
Hebel
36
WASHER,PL/M8
37
PIN,SPLIT/2X20
38
Welle
39
SEAL,OIL/VC12224
40
1614-503-003-00
41
PLATE/I/25X62
