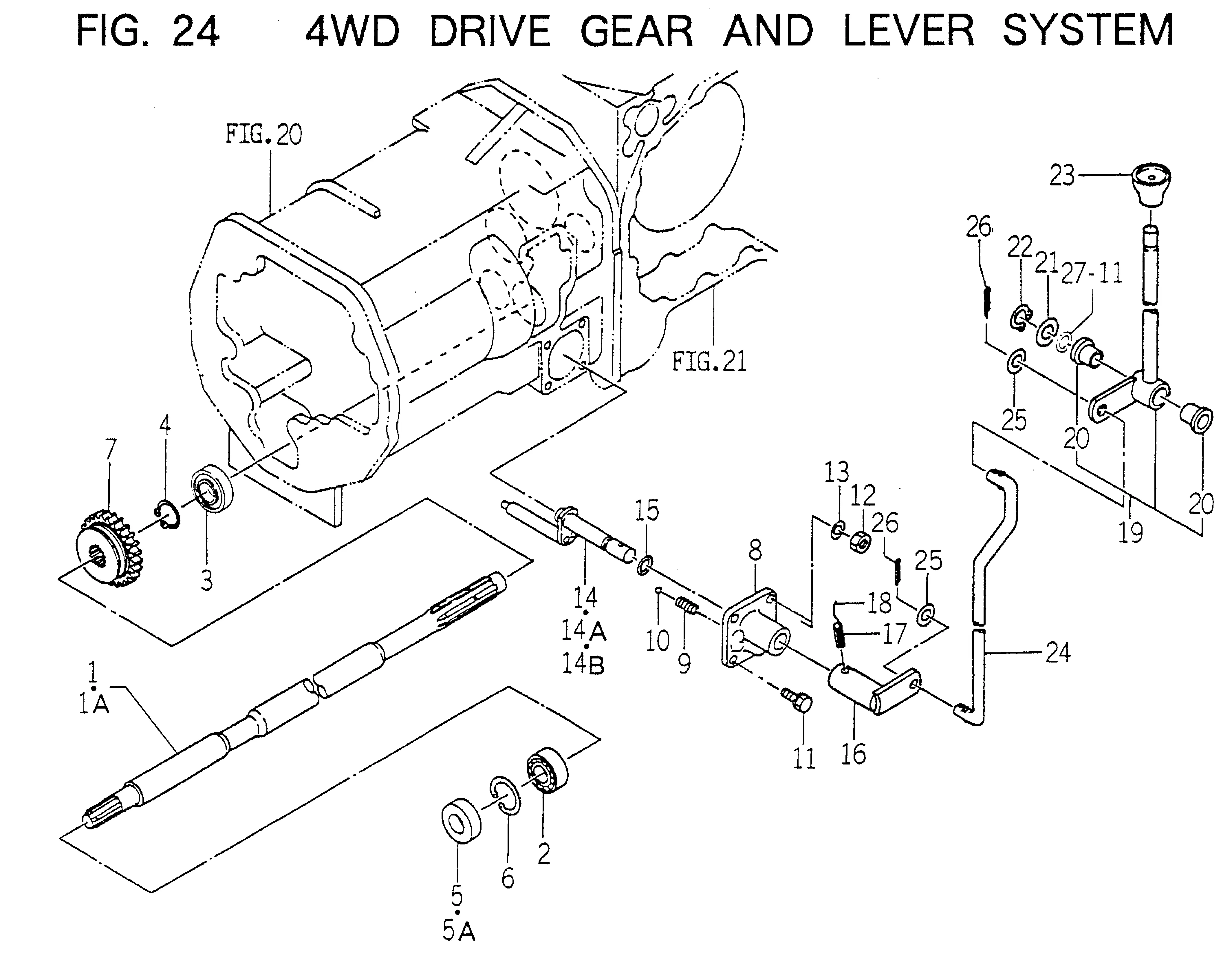

Allradgetriebe, Schaltung
Ersatzteile (29 Teile)
1
Welle
1A
1563-261-003-20
2
BEARING,RB/6004
3
1564-263-002-00
4
RING,SNAP/25 C
5
Wellendichtring
5A
SEAL,OIL/TC20428
6
RING,SNAP/42 C
7
Zahnrad
8
1560-265-002-10
9
SPRING,SHIFTER
10
BALL,STEEL
11
BOLT,S/M8X20
12
NUT/M8
13
WASHER,SP/M8
14
Welle
14A
1560-265-220-10
14B
1560-265-220-20
15
O-RING/1A,P14
16
Hebel
17
PIN,SPRING/6X25 W
19
1594-287-200-00
20
BUSH/16X24X16
21
WASHER/17X26X02
22
RING,SNAP/16 C
23
Griff, schwarz
24
1594-288-001-20
25
V411-260-010-00
26
PIN,SPLIT/2X20
