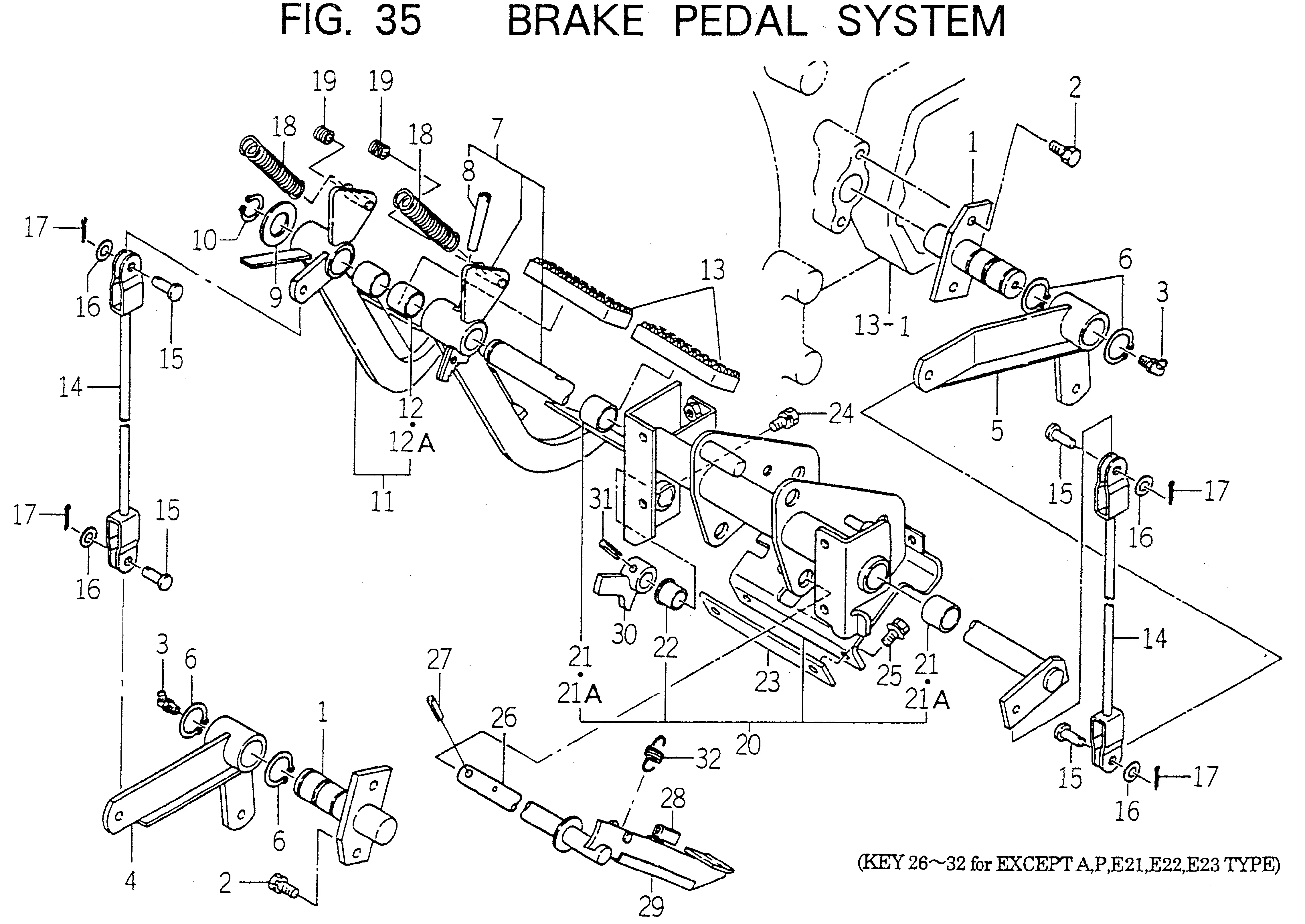

Pedal, Bremse
Ersatzteile (27 Teile)
1
PIN COMP
2
BOLT,S/M8X20
3
NIPPLE,GREASE/PT1/8
4
Hebel
5
Arm
6
RING,SNAP/25 C
7
Pedalwelle
8
PIN,TAPER/8X50
9
WASHER,PL/M20
10
RING,SNAP/20 C
11
1594-314-230-10
12
Buchse, 20
12A
BUSH/20X23X20
13
PAD
14
Gestänge, Bremse
15
PIN
16
WASHER,PL/M8
17
PIN,SPLIT/2.5X20
18
Feder, Kupplung
19
Kappe
20
1594-314-210-20
21
Buchse, 20
21A
BUSH/20X23X20
22
BUSH/16X18X15
23
1560-314-002-00
24
V211-260-801-60
25
BOLT,SP/M8X20
