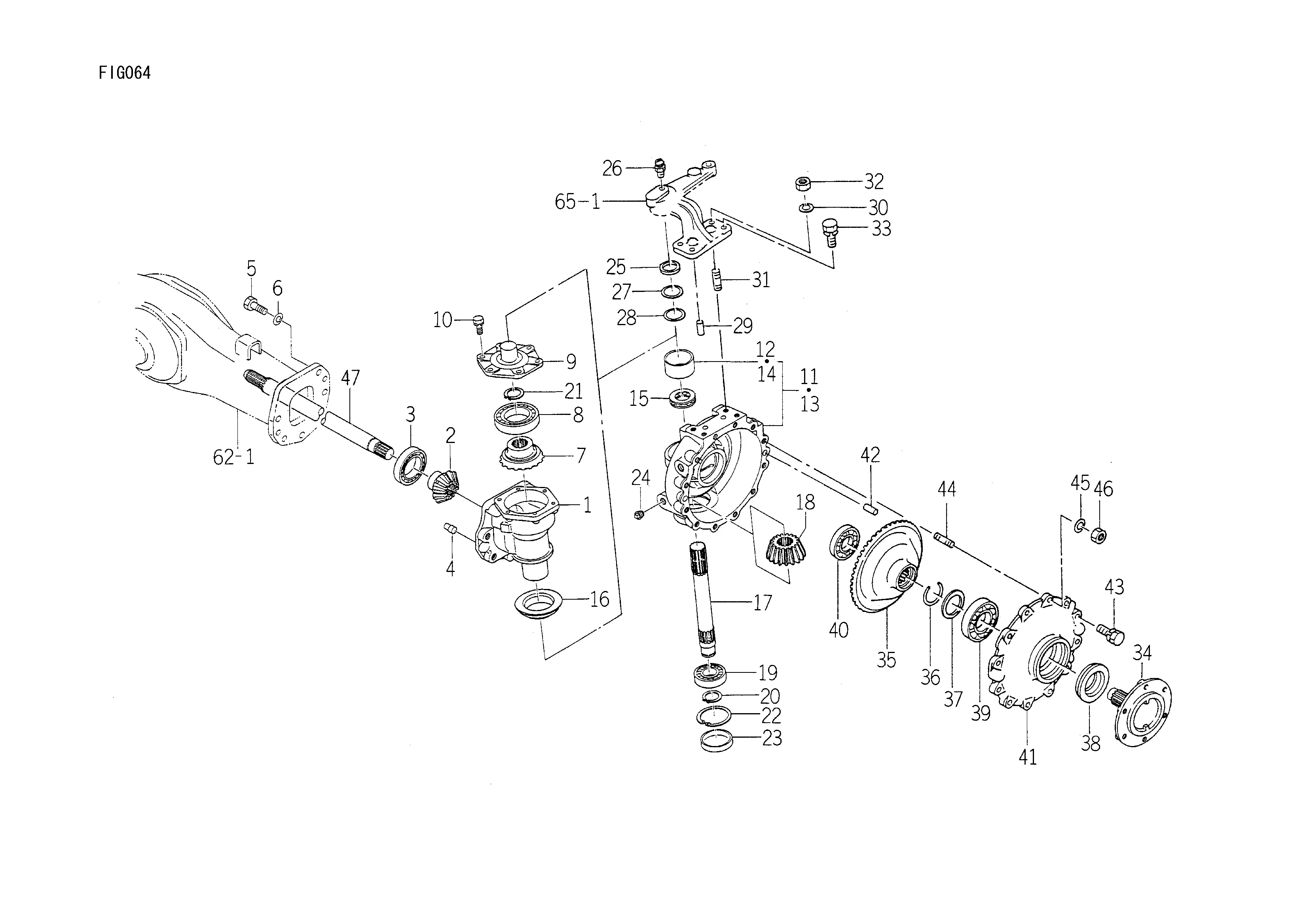

Achsschenkel, vorne
Ersatzteile (54 Teile)
1
Gehäuse
2
Zahnrad
3
BEARING,RB/6207
4
Stift
5
BOLT/M12X30/7T
5
V201-461-203-00
6
WASHER,SP/M12
7
Zahnrad
8
Kugellager 6209 2RS
9
Deckel
10
BOLT,S/M8X20
11
1560-434-200-60
12
BUSH/50X55X30
13
1560-434-210-60
14
BUSH/50X55X30
15
Drucklager, TB 51106 TB 51106
16
Wellendichtring
17
Welle
18
Zahnrad
19
BEARING,RB/6305
20
RING,SNAP/25 C
21
RING,SNAP/30 C
22
V705-140-062-00
23
SEAL(62)
23
SEAL(62)
23
PLUG,CAP/62X6
24
Ölablassschraube 3/8 Zoll
25
Wellendichtring
26
NIPPLE,GREASE/PT1/8
27
Distanzscheibe B=0,5
28
Distanzscheibe B, 1,0 B, 1,0
29
PIN,ST,B/10X24
30
WASHER,SP/M10
31
V251-341-002-5C
31
V251-341-002-5D
32
V304-460-010-00
33
BOLT,S/M10X25/7T
34
SHAFT/WHEEL
35
1560-434-008-40
36
1560-434-017-00
37
COLLAR/41X55X4
38
1560-434-012-30
39
Kugellager
40
BEARING,RB/6206
41
Gehäusedeckel, Vo.A.
42
PIN,ST,B/10X24
43
BOLT,S/M10X25/7T
43
V211-261-002-50
44
STUD/M10X25/7T
44
Stiftschraube
45
WASHER,SP/M10
46
NUT/M10
46
V304-460-010-00
47
Welle
