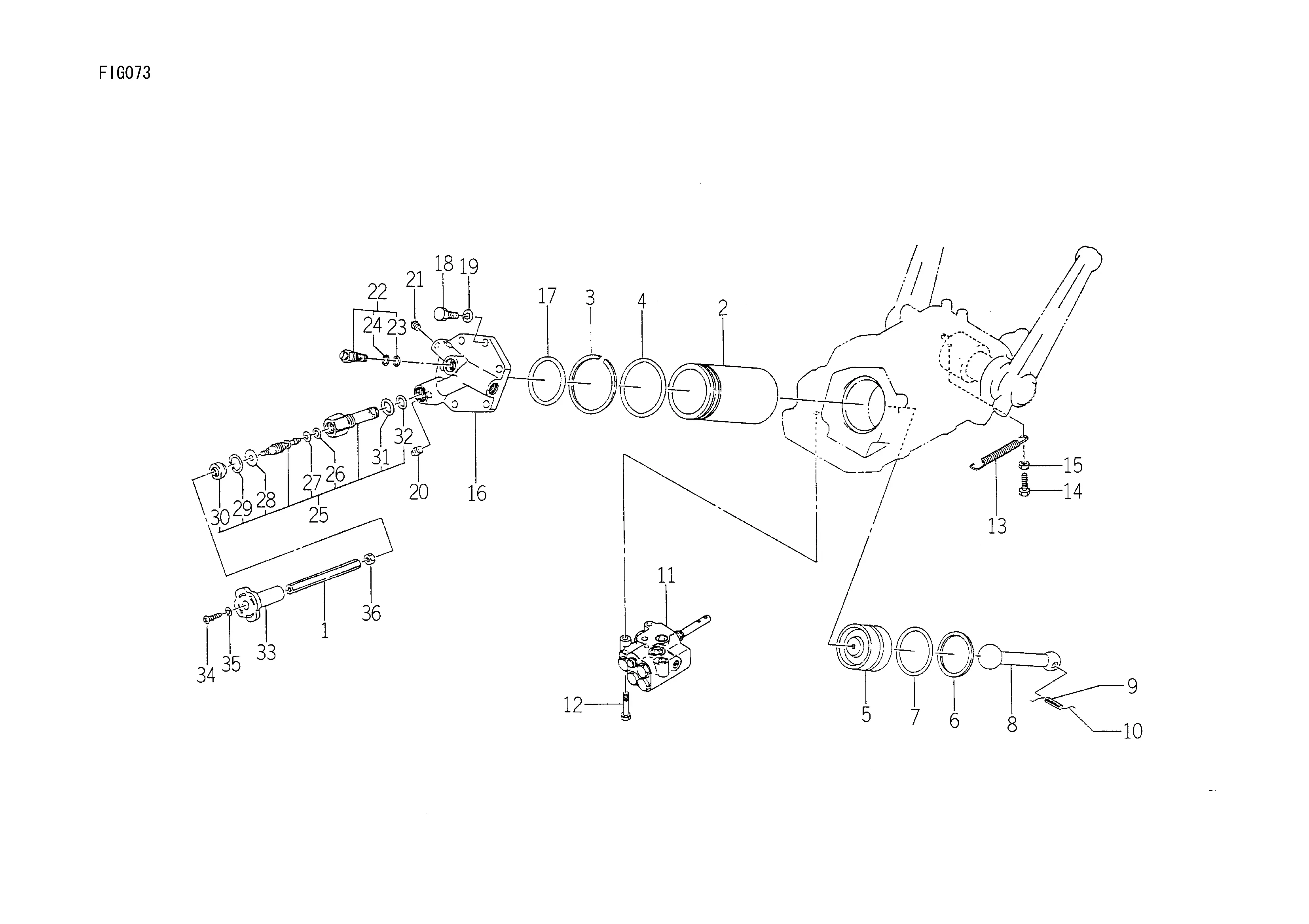

Zylinder, Heckhydraulik
Ersatzteile (37 Teile)
1
Verstellwelle
2
Zylinder
3
Dichtring
4
O-Ring
5
Kolben
6
Stützring
7
O-Ring
8
Bolzen
8
1650-501-008-00
9
V580-140-805-00
10
- - -
11
K211-008-000-10
12
V211-260-804-00
13
SPRING
14
V201-260-803-00
15
NUT/M8
16
1560-507-008-00
17
O-Ring G75
18
V201-361-203-50
19
WASHER,SP/M12
20
V781-100-000-40
21
Stopfen 1/8
22
VALVE
23
O-RING/1B,P12
24
O-RING/1B,P18
25
Ventil
26
O-RING/1B,P10A
27
RING/BACK UP
28
Manschette 11x21x3
29
Sicherungsring
30
SEAL,DUST
31
O-RING/1B,P22
32
O-RING/1B,P16
33
KNOB
34
SCREW/M6X40
35
V401-160-006-00
36
NUT/M10
