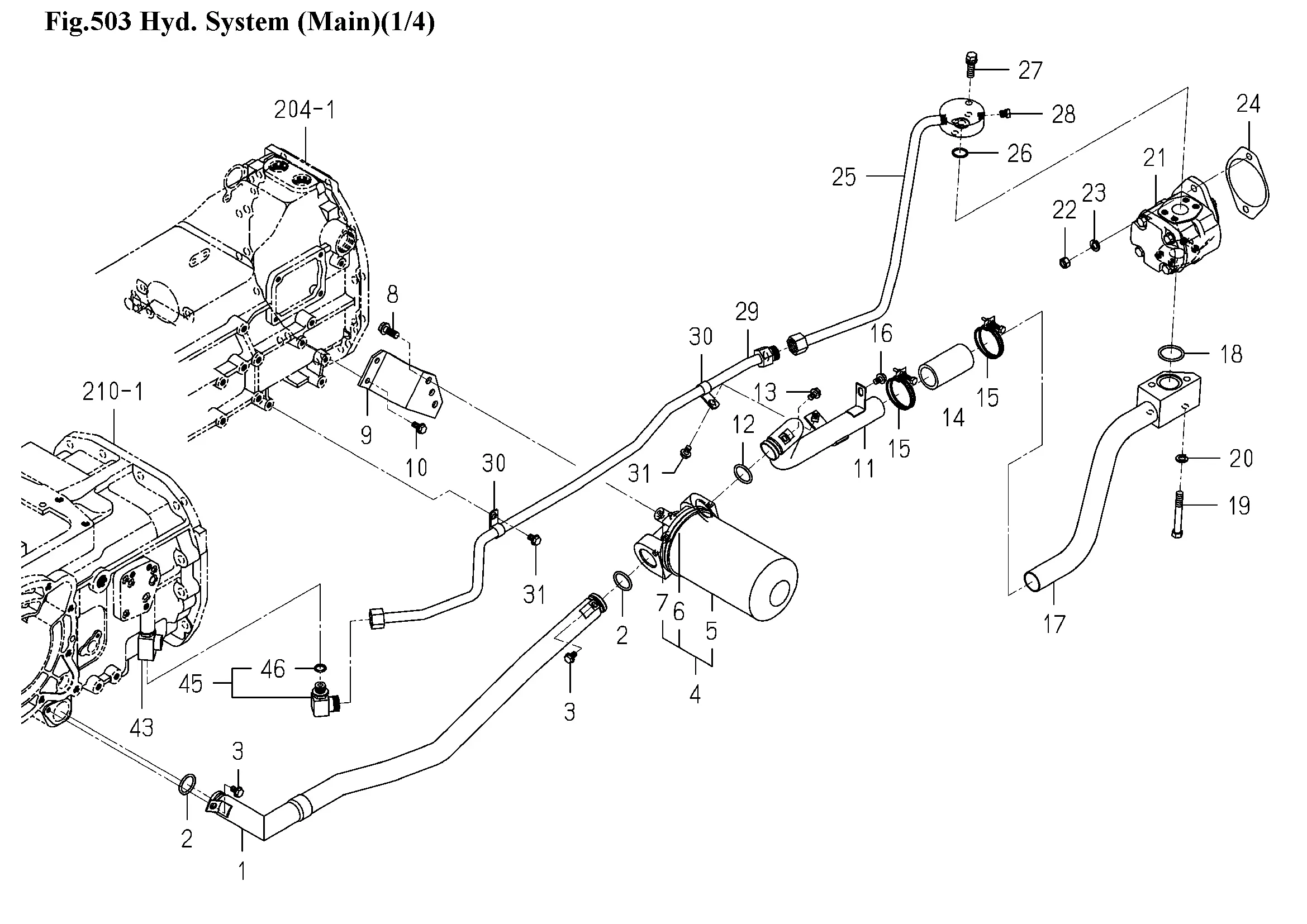

Hydraulik (HST, 5-V-Block), Filter, Pumpe, Leitungen
Ersatzteile (120 Teile)
1
Hydraulikleitung
2
O-RING/1A,P28
3
V231-360-801-20
4
Hydraulikfilter kpl.
5
Hydraulikfilter
6
Dichtung
7
SENSOR/FILTER
8
V231-361-002-50
9
Halter
10
FLANGEBOLT/M8X16
11
Leitung
12
O-RING/1A,P28
13
V231-360-801-20
14
Verbindungsschlauch
15
CLAMP/WIRE/36-44
16
V231-360-801-20
17
Hydraulikleitung
18
O-RING/1B,P34
19
BOLT/M10X75/7T
20
WASHER,SP/M10
21
Hydraulikpumpe
22
NUT/M10
23
WASHER,SP/M10
24
GASKET/PUMP
25
1744-508-240-00
26
O-RING/1B,P20
27
BOLT,S/M10X35/7T
28
PLUG/SCREW/SEAL
29
Hydraulikleitung
30
1675-508-003-00
31
V231-360-801-20
32
Mengenteiler
33
K233-014-000-00
34
O-RING/1B,S16
35
O-RING/1B,P20
36
FILTER/LINE/12X18X15
37
Ventil
38
O-RING/1B,P20
39
PLUG/SCREW/SEAL
40
O-RING/1B,P10A
41
O-RING/1B,P12
42
O-RING/1B,P14
43
ADAPTER/G3/8ASSY
44
O-RING/1B,P14
45
Winkelverschraubung
46
O-RING/1B,P14
47
Adapter
48
O-RING/1B,P14
49
1754-508-250-00
50
Adapter
51
O-RING/1B,P14
52
Reduzierungsventil (DBV)
53
PLUG
54
O-RING/1B,P14
55
SPRING/HC042
57
O-RING/1B,P16
58
PLUG/SCREW/SEAL
59
GASKET/REDUCE
60
Adapterplatte
61
ADAPTER/L/PF3/8 ASSY
62
O-RING/1B,P14
63
ADAPTER/L/PF3/8 ASSY
64
O-RING/1B,P14
65
1754-508-003-00
66
FLANGEBOLT/M8X75
67
V231-361-002-00
68
PLUG/SCREW/SEAL
69
Magnetventil
70
GASKET/REVERSE
71
1754-508-005-00
72
1754-508-270-10
73
V231-360-802-00
74
PLUG/G3/8 ASSY
75
O-RING/1B,P14
76
PLUG(PF1/4)
77
O-RING/1B,P11
78
FILTER/PORT/09
79
PLUG/SCREW/SEAL
80
BOLT,S/M8X30
81
V211-260-806-50
82
1754-508-290-00
83
1740-407-520-00
84
O-RING/1B,P11
85
ADAPTER/L/G1/4 ASSY
86
O-RING/1B,P11
87
PLUG/SCREW/SEAL
88
ADAPTER/L/PF1/4 ASSY
89
O-RING/1B,P11
90
1754-508-300-00
91
ADAPTER/L/PF1/4 ASSY
92
O-RING/1B,P11
93
ADAPTER/L/G1/4 ASSY
94
O-RING/1B,P11
95
PLUG/SCREW/SEAL
96
1740-407-520-00
97
O-RING/1B,P11
98
1754-508-310-00
99
ADAPTER/PF1/4 ASSY
100
O-RING/1B,P11
101
ADAPTER/L/PF1/4 ASSY
102
O-RING/1B,P11
103
Leitung
104
ADAPTER/L/PF3/8 ASSY
105
O-RING/1B,P14
106
1754-508-330-00
107
ADAPTER/L/PF3/8 ASSY
108
O-RING/1B,P14
109
1754-508-340-00
110
ADAPTER/L/PF1/4 ASSY
111
O-RING/1B,P11
112
1754-508-360-00
113
O-RING/1B,P11
114
PLUG/SCREW/SEAL
115
1744-501-200-00
116
PLUG/SCREW/SEAL
117
ADAPTER/PF3/8 ASSY
118
O-RING/1B,P14
119
1754-508-350-00
120
ADAPTER/L/PF1/4 ASSY
121
O-RING/1B,P11
