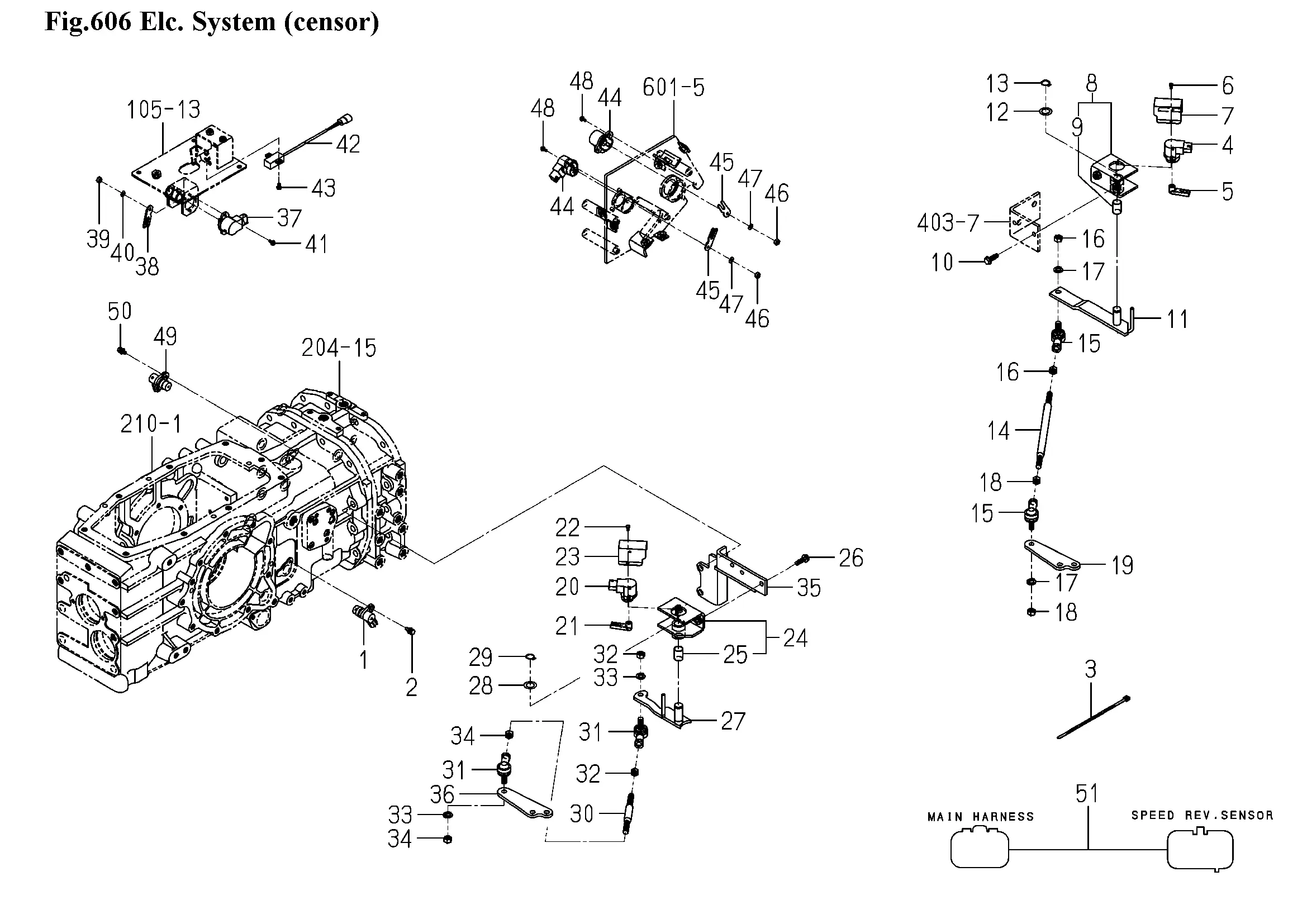

Schalter, Sensoren (Getriebe)
Ersatzteile (51 Teile)
1
SENSOR/REVOLUTION/L
2
BOLT,SP/M6X16
3
BAND,WIRE/140
4
SENSOR/ANGLE/11 ASSY
5
Arm, Sensor
6
V120-264-001-20
7
Abdeckblech, Sensor
8
Halter
9
Buchse
10
FLANGEBOLT/M8X25
11
Arm
12
WASHER/17X26X02
13
RING,SNAP/16 C
14
Stange
15
Kugelgelenk, re
16
NUT/M10
17
WASHER,SP/M10
18
NUT/M10
19
1696-664-001-00
20
SENSOR/ANGLE/11 ASSY
21
Arm, Sensor
22
V120-264-001-20
23
Abdeckblech, Sensor
24
Halter
25
Buchse
26
FLANGEBOLT/M8X25
27
Arm
28
WASHER/17X26X02
29
RING,SNAP/16 C
30
Verbindungswelle
31
Kugelgelenk, re
32
NUT/M10
33
WASHER,SP/M10
34
NUT/M10
35
Halter
36
Halter
37
SENSOR/ANGLE/75 ASSY
38
Arm, Sensor
39
V301-260-006-00
40
V401-160-006-00
41
SCREW,SP/M4X12
42
SWITCH ASSY
43
SCREW,SP/M4X12
44
SENSOR/ANGLE/75 ASSY
45
Arm, Sensor
46
V301-260-006-00
47
V401-160-006-00
48
SCREW,SP/M4X12
49
SENSOR/REVOLUTION/R
50
BOLT,SP/M6X16
51
1754-664-004-00
