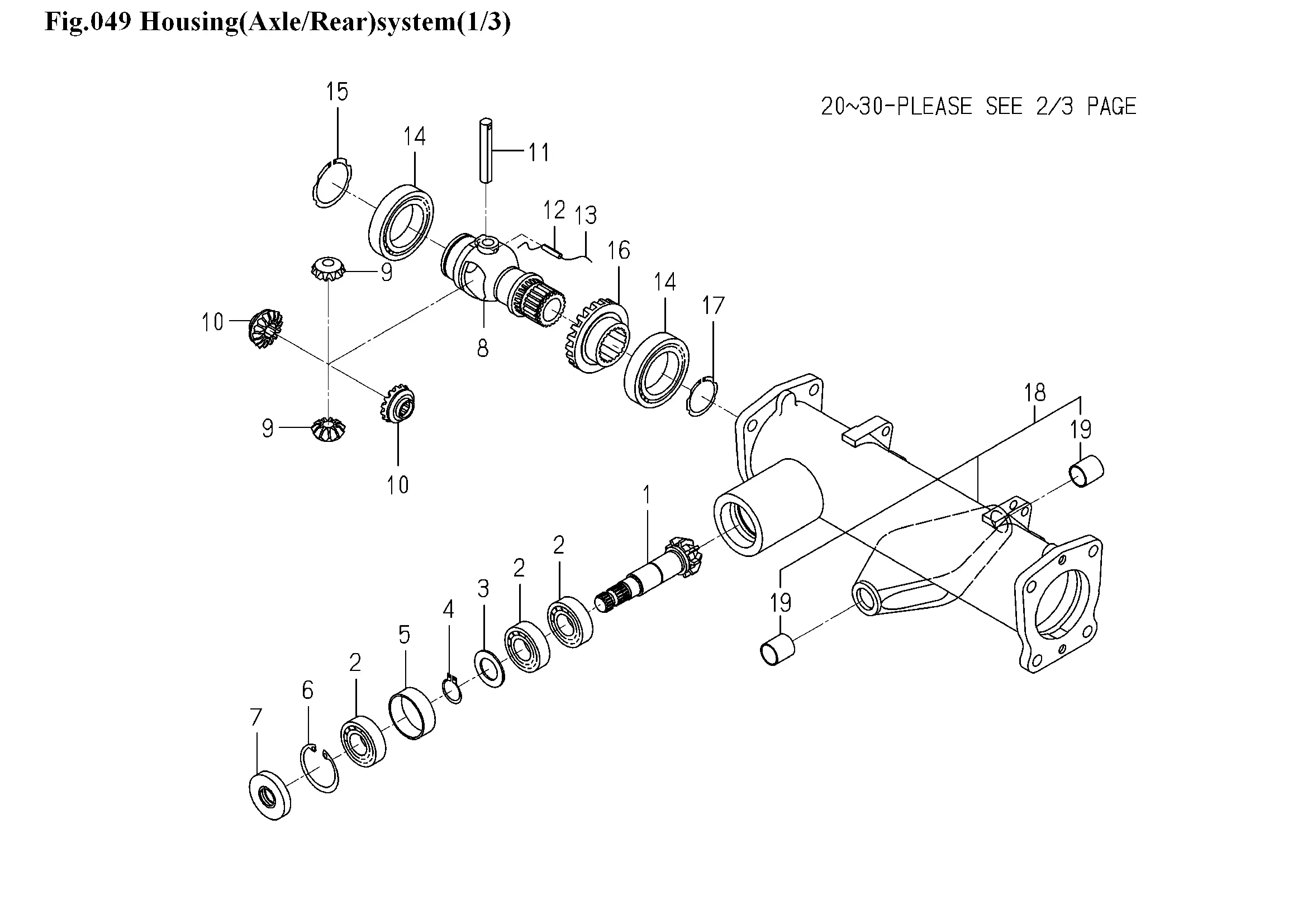

Differenzial, Achse, Achsschenkel
Ersatzteile (66 Teile)
1
PINION/BEVEL/09
2
BEARING/BALL
3
WASHER/25X42X02
4
1725-218-109-00
5
COLLAR/48X52X17
6
1725-219-121-00
7
1776-432-003-00
8
CASE/DIFFERENTIAL/FR
9
PINION/BEVEL/11
10
GEAR/BEVEL/15
11
1725-432-714-00
12
1725-432-715-00
14
1725-432-801-00
15
1725-432-113-00
16
GEAR/BEVEL/21
17
1725-432-114-00
18
1832-433-200-00
19
BUSH/22X25X25
20
CASE/FINAL/UPPER/LH
21
1725-434-114-00
22
1725-434-115-00
23
PIN/B
24
CASE/FINAL/UPPER/RH
25
1725-434-114-00
26
1725-434-115-00
27
PIN/B
28
GEAR/BEVEL/11
29
1725-434-116-00
30
1725-308-103-00
31
GEAR/BEVEL/17
32
1725-201-806-00
33
SEAL/OIL ASSY
34
BEARING/BALL/6909
35
R.B.B/6908/KOYO
36
1725-432-114-00
37
1725-308-103-00
38
CASE/FINAL/LOWER/LH
39
1725-219-121-00
40
PLUG/52X10
41
CASE/FINAL/LOWER/RH
42
PLUG/SCREW/R1/4
43
1725-219-121-00
44
PLUG/52X10
45
1725-434-113-00
46
BEARING/6304/KBC
47
SHAFT/WHEEL
48
GEAR/BEVEL/35
49
WASHER/27X36X03
50
SEAL/OIL ASSY
51
1725-201-806-00
52
1725-434-116-00
53
COVER/WHEEL
54
1725-434-124-00
55
SHAFT/450
56
SHAFT/100
57
CAP,OIL
58
PACKING
59
PLUG/SCREW/SEAL
60
PIN/PIVOT COMP
61
NIPPLE,GREASE
62
BOLT,SP/M10X25/7T
63
V411-260-016-00
64
NUT,CASTLE/M16 P=1.5
65
V500-164-003-00
66
V304-460-010-00
67
V201-461-003-50
