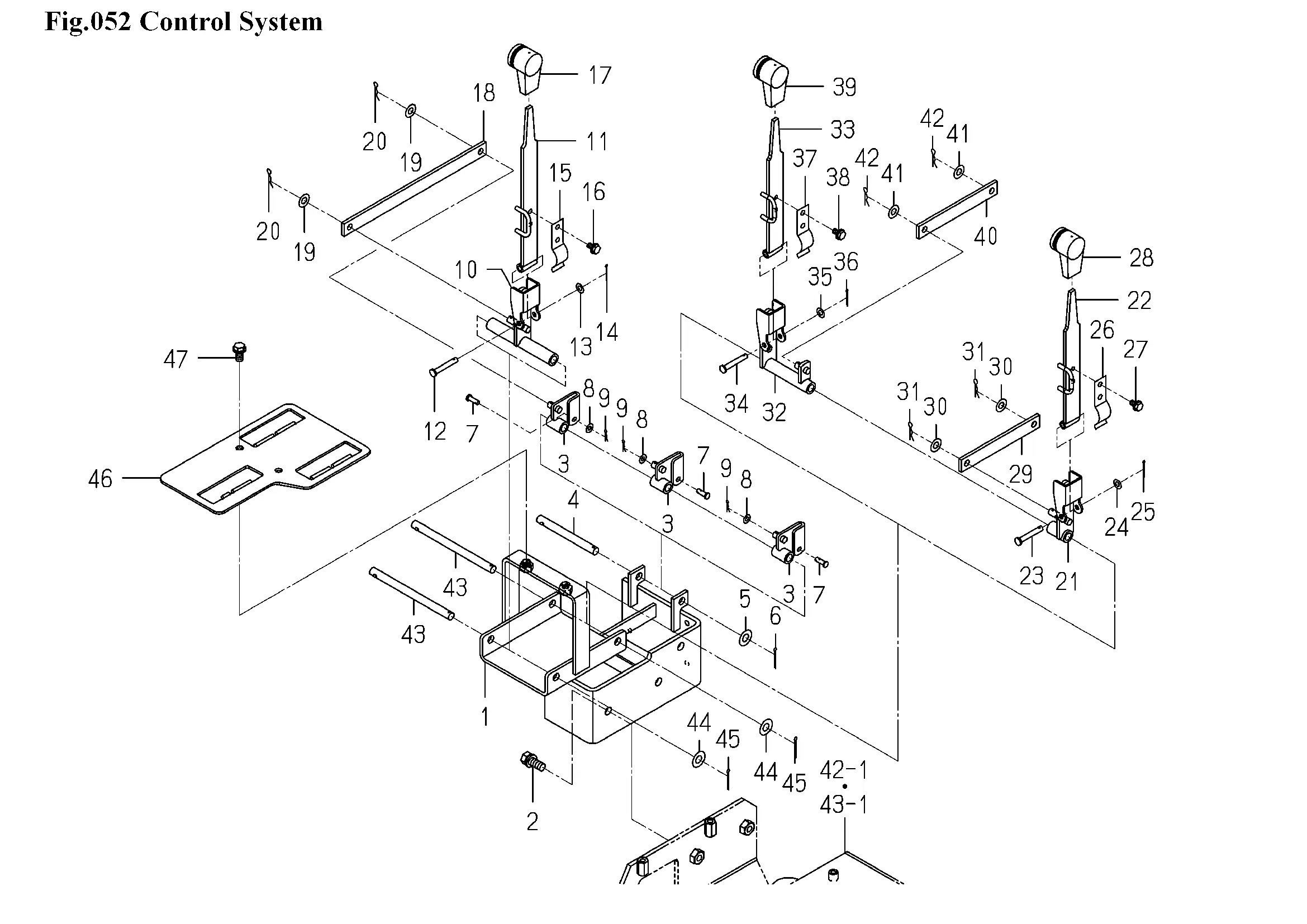

Hebel, Hydraulik
Ersatzteile (47 Teile)
1
1832-503-250-00
2
V211-261-002-50
3
1832-503-210-00
4
1832-503-003-00
5
V411-260-010-00
6
V500-162-502-50
7
PIN/05X17
8
V411-260-005-00
9
PIN/SNAP
10
1832-503-220-00
11
LEVER/LIFT COMP
12
PIN/6X42
13
V411-260-006-00
14
PIN,SPLIT/2X20
15
SPRING/PLATE
16
FLANGEBOLT/M6X10
17
GRIP
18
1832-503-001-00
19
WASHER,PL/M8
20
PIN/SNAP
21
1832-503-230-00
22
1832-503-270-10
23
PIN/6X42
24
V411-260-006-00
25
PIN,SPLIT/2X20
26
SPRING/PLATE
27
FLANGEBOLT/M6X10
28
GRIP
29
1832-503-002-00
30
WASHER,PL/M8
31
PIN/SNAP
32
1832-503-240-00
33
1832-503-270-10
34
PIN/6X42
35
V411-260-006-00
36
PIN,SPLIT/2X20
37
SPRING/PLATE
38
FLANGEBOLT/M6X10
39
GRIP
40
1832-503-002-00
41
WASHER,PL/M8
42
PIN/SNAP
43
1832-503-004-00
44
V411-260-010-00
45
V500-162-502-50
46
1832-503-280-00
47
FLANGEBOLT/M8X16
