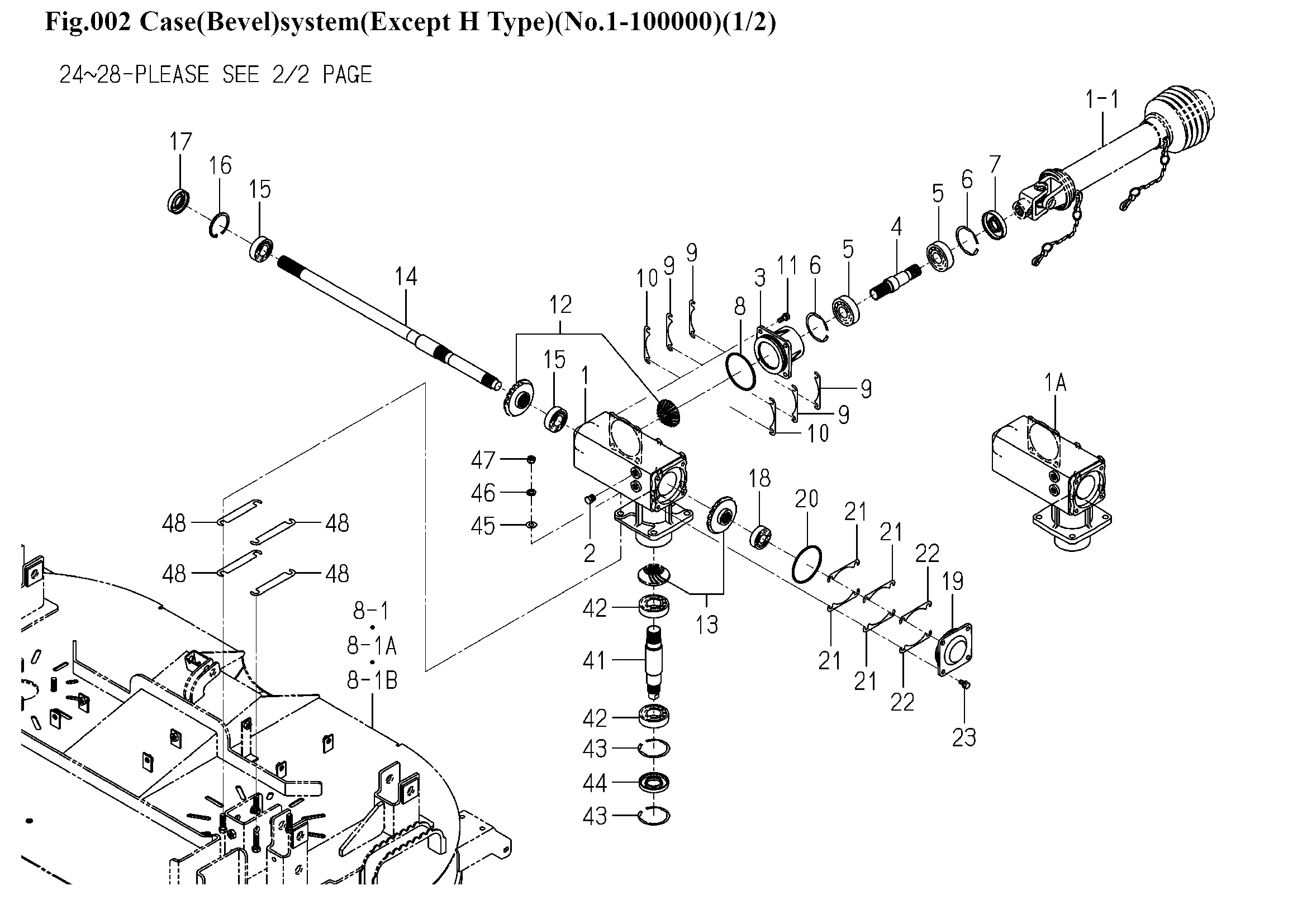

Getriebe Seriennr. 1-100000
Ersatzteile (52 Teile)
1
8680-201-001-00
1A
CASE/BEVEL/LH
2
PLUG,DRAIN (1/4)
3
METAL/INPUT
4
SHAFT/INPUT
5
BEARING,RB/6305
6
RING,SNAP/R62
7
SEAL/OIL
8
O-RING/1A,G80
9
SHIM/0.1
10
SHIM/0.2
11
V211-560-802-00
12
GEAR/BEVEL/18-2 SET
13
GEAR/BEVEL/25-2 SET
14
SHAFT/LH
15
BEARING/BALL/HPS
16
RING,SNAP/52 C
17
SEAL,OIL/TC255210
18
V600-110-620-40
19
8680-201-003-00
20
O-RING/1A,G80
21
SHIM/0.1
22
SHIM/0.2
23
V211-260-801-60
24
8680-201-004-00
24A
CASE/BEVEL/RH
25
PLUG,DRAIN (1/4)
26
GEAR/BEVEL/25-2 SET
27
SHAFT/RH
28
BEARING/BALL/HPS
29
RING,SNAP/52 C
30
SEAL,OIL/TC255210
31
V600-110-620-40
32
8680-201-003-00
33
O-RING/1A,G80
34
SHIM/0.1
35
SHIM/0.2
36
V211-260-801-60
37
COUPLING/23X34X60
38
V411-260-006-00
39
NIPPLE,GREASE
40
RING/SNAP/CS25
41
SHAFT/BLADE
42
BEARING,RB/6206
43
RING,SNAP/R62
44
SEAL/OIL
45
V411-260-010-00
46
WASHER,SP/M10
47
NUT/M10
48
8667-201-009-10
ob
Getriebe kpl. li.
ob
Getriebe kpl. re.
