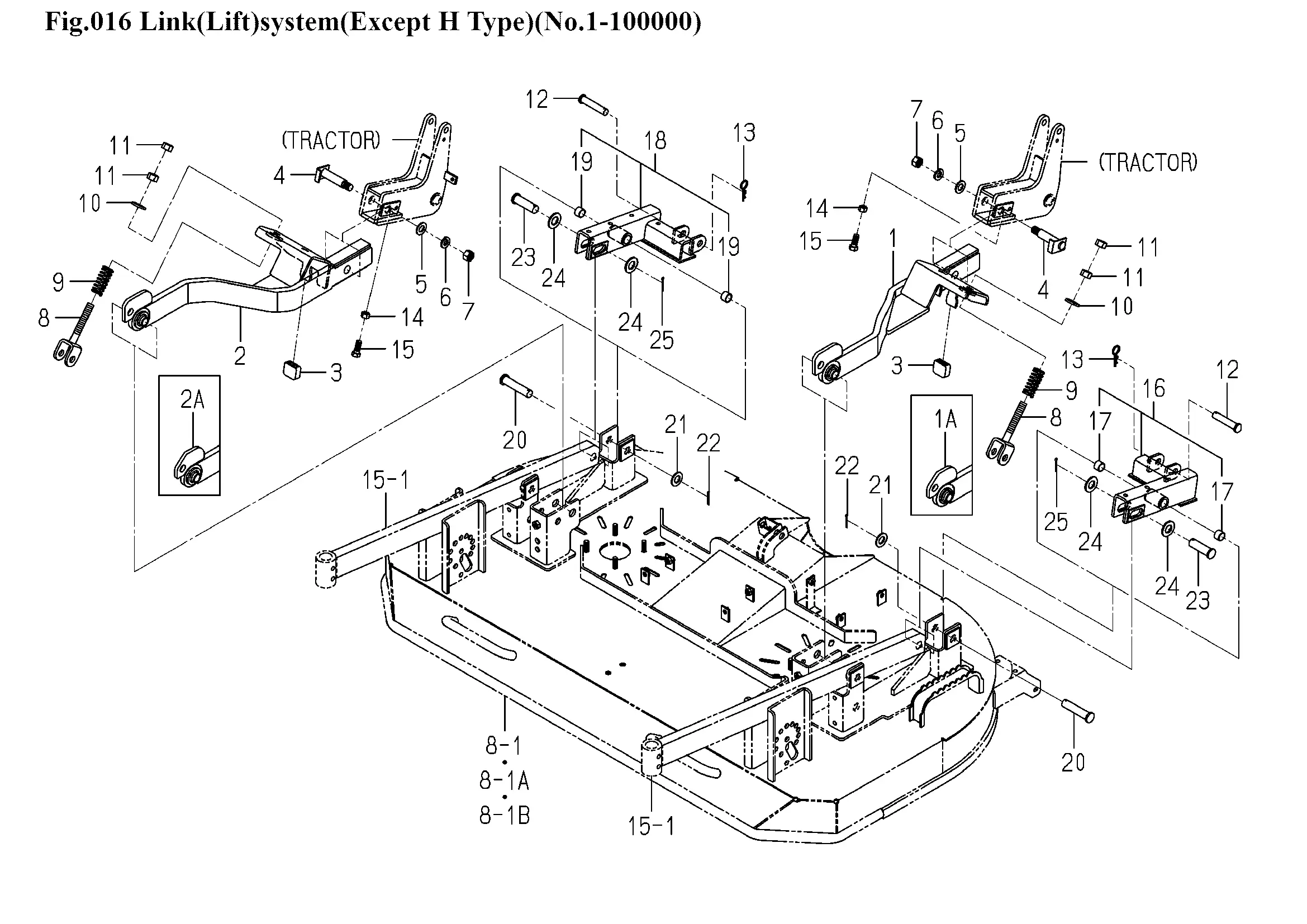

Aushebung Seriennr. 1-100000
Ersatzteile (27 Teile)
1
ARM/MAIN/LH COMP
1A
8680-510-220-10
2
ARM/MAIN/RH COMP
2A
8680-510-240-10
3
STOPPER
4
PIN/M16X99 COMP
5
V411-260-016-00
6
WASHER,SP/M16
7
NUT/M16
8
ROD/LIFT COMP
9
SPRING/HC058
10
WASHER
11
NUT/M16
12
PIN/16X78
13
PIN/HAIR
14
V304-460-012-00
15
BOLT/M12X30/7T
16
LINK/REAR/LH ASSY
17
BUSH/19X22X15
18
LINK/REAR/RH ASSY
19
BUSH/19X22X15
20
PIN/19X85
21
WASHER,PL/M18
22
V500-164-003-00
23
PIN/20X65
24
WASHER,PL/M20
25
V500-164-003-00
