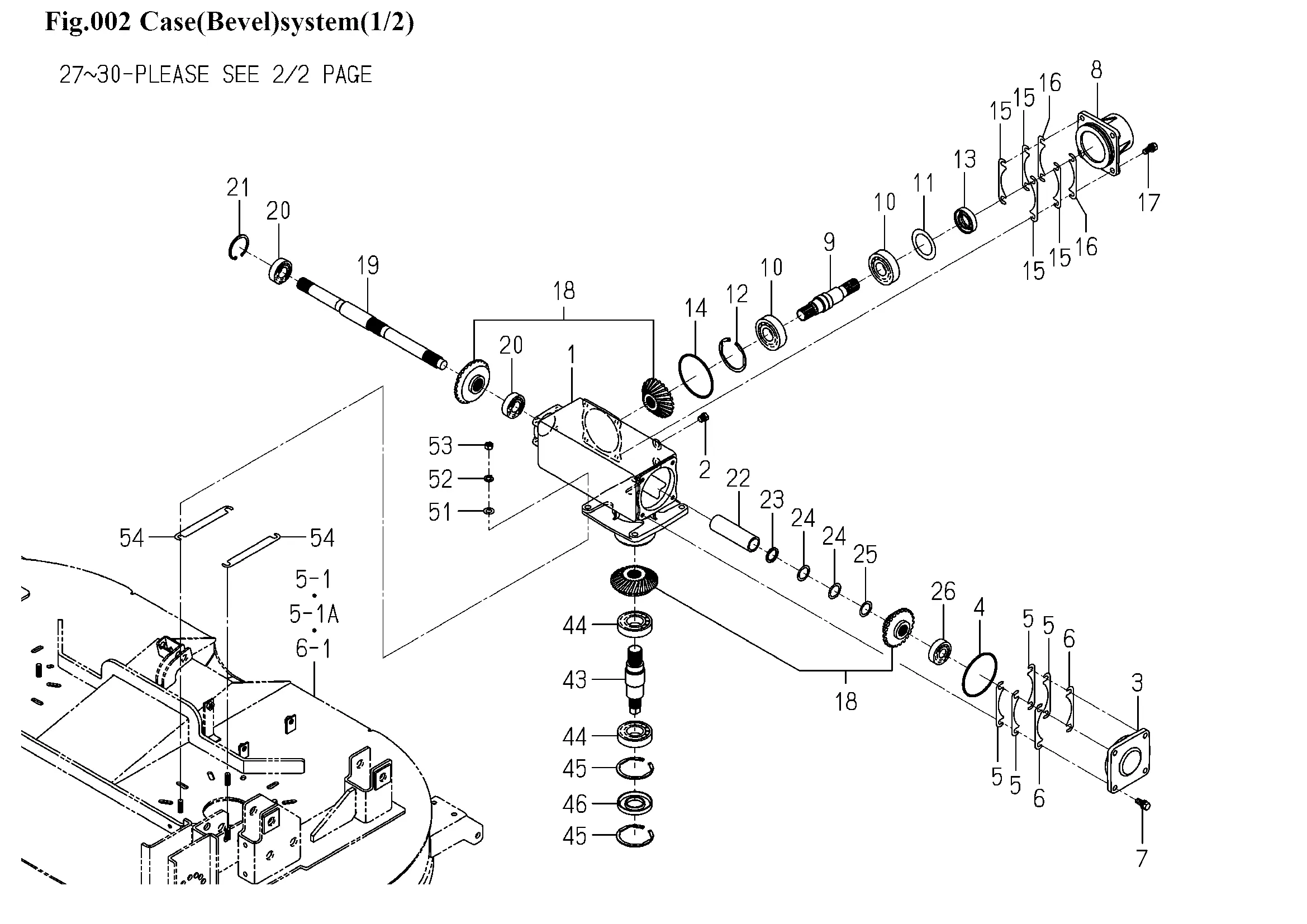

Getriebe
Ersatzteile (54 Teile)
1
CASE/BEVEL/LH/5
2
PLUG,DRAIN (1/4)
3
8675-201-002-00
4
O-RING/1A,G95
5
SHIM/0.1
6
SHIM/0.2
7
BOLT,S/M10X25/7T
8
8675-201-003-00
9
SHAFT/INPUT
10
BEARING,RB/6306
11
COLLAR/48X70X01
12
RING,SNAP/R72
13
SEAL,OIL/TC305512
14
O-RING/1A,G95
15
SHIM/0.1
16
SHIM/0.2
17
BOLT,S/M10X25/7T
18
GEAR/BEVEL/23-2 SET
19
8675-201-057-00
20
BEARING/BALL/HPS
21
RING,SNAP/52 C
22
8675-201-008-00
23
WASHER/25X33X02
24
SHIM/0.1
25
SHIM/0.2
26
BEARING,RB/6304
27
CASE/BEVEL/RH/5
28
PLUG,DRAIN (1/4)
29
8675-201-002-00
30
O-RING/1A,G95
31
SHIM/0.1
32
SHIM/0.2
33
BOLT,S/M10X25/7T
34
GEAR/BEVEL/23-2 SET
35
8675-201-063-00
36
BEARING,RB/6304
37
WASHER/25X33X02
38
SHIM/0.1
39
SHIM/0.2
40
BEARING/BALL/HPS
41
RING,SNAP/52 C
42
SEAL,OIL/TC255210
43
SHAFT/BLADE/5
44
BEARING,RB/6207
45
RING,SNAP/R72
46
SEAL/OIL
47
COUPLING/23X34X60
48
PIPE/JOINT COMP
49
O-RING/1A,P52
50
BOLT,S/M10X20/7T
51
V411-260-010-00
52
WASHER,SP/M10
53
NUT/M10
54
SHIM/0.2
