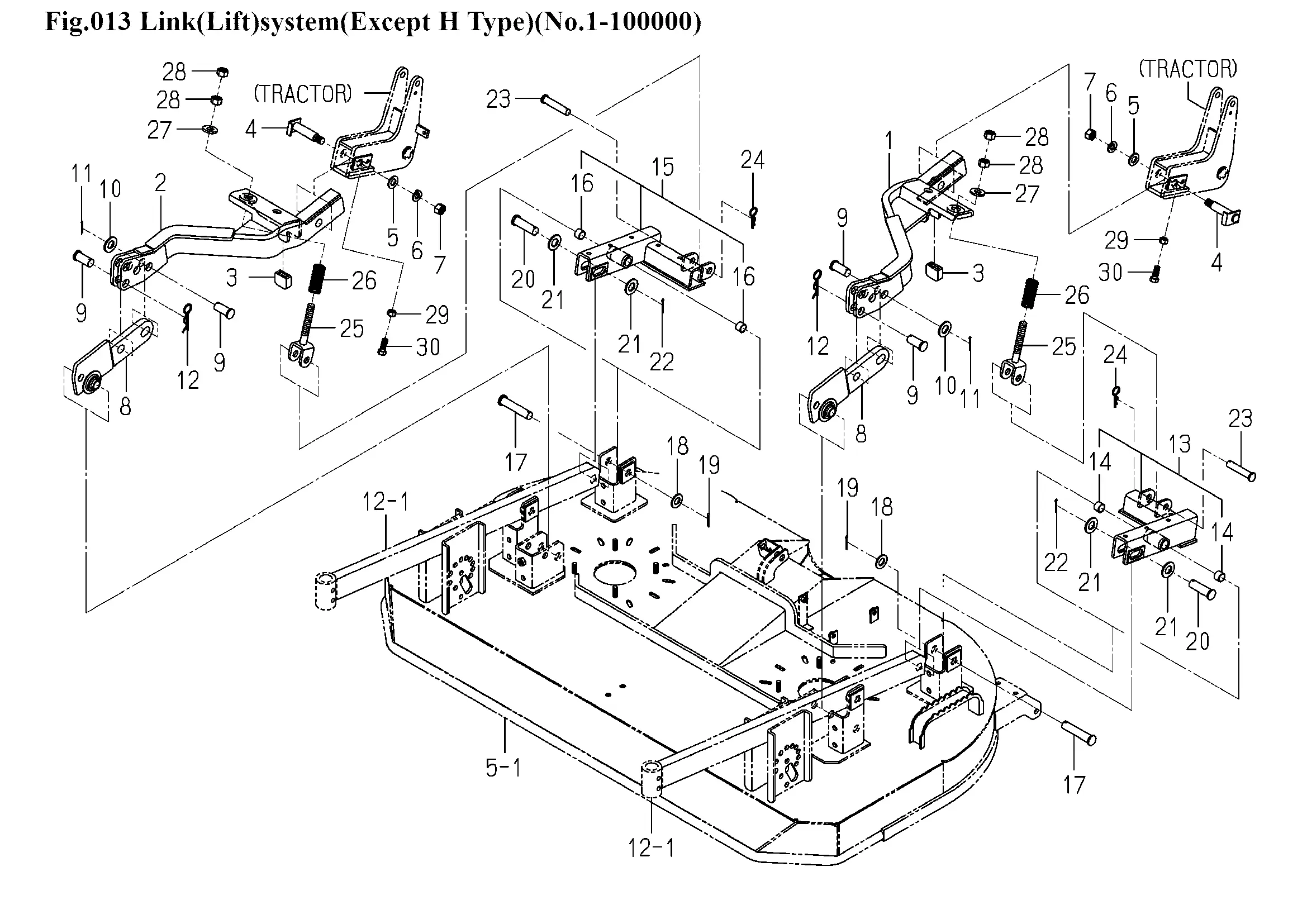

Aushebung
Ersatzteile (30 Teile)
1
ARM/MAIN/LH COMP
2
ARM/MAIN/RH COMP
3
STOPPER
4
PIN/M16X99 COMP
5
V411-260-016-00
6
WASHER,SP/M16
7
NUT/M16
8
ARM/FRONT/5 COMP
9
PIN/20X44
10
WASHER,PL/M20
11
V500-163-003-00
12
PIN,HAIR/19
13
LINK/REAR/LH/5 ASSY
14
BUSH/19X22X15
15
LINK/REAR/RH/5 ASSY
16
BUSH/19X22X15
17
PIN/19X91
18
WASHER,PL/M18
19
V500-164-003-00
20
PIN/20X65
21
WASHER,PL/M20
22
V500-164-003-00
23
PIN/16X78
24
PIN/HAIR
25
ROD/LIFT COMP
26
SPRING/HC058
27
WASHER
28
NUT/M16
29
V304-460-012-00
30
BOLT/M12X30/7T
